UCX Series

Manufacturer: Nichicon

Catalog

CAP ALUMINUM LYTIC 2200UF 25V 20% (18 X 16.5MM) SMD 0.05 OHM 1.4A 2000H 135°C T/R AUTOMOTIVE AEC-Q200

Part	Mounting Type	Package / Case	Ratings	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Ripple Current @ High Frequency	Lifetime @ Temp.	Polarization	Voltage - Rated	Applications	Tolerance	Height - Seated (Max) [Max]	Impedance	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Nichicon UCX1E222MNS1MS	Surface Mount	Radial Can - SMD	AEC-Q200	700 mA	0.709 in	18 mm	50 mOhms	2200 µF	-40 C	135 °C	0.752 "	19.1 mm	0.752 "	19.1 mm	0.669 "	17 mm	1.4 A	2000 Hrs	Polar	25 VDC	General Purpose	20 %

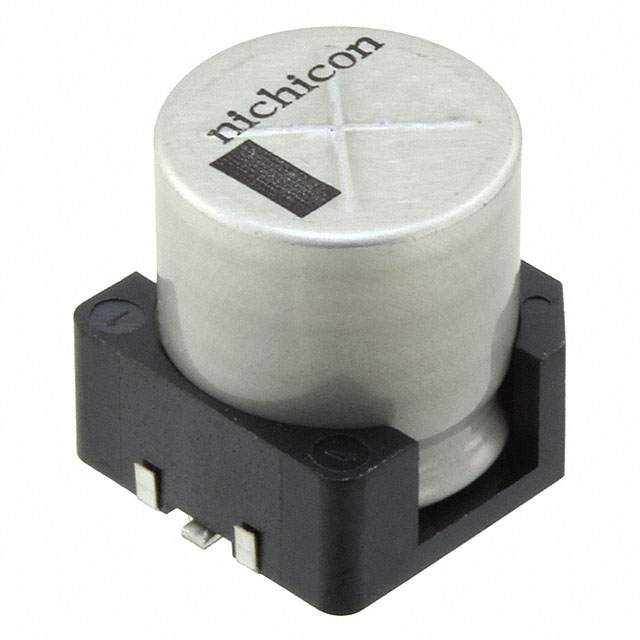

Nichicon UCX1V681MNQ1MS	Surface Mount	Radial Can - SMD		375 mA	0.492 in	12.5 mm	70 mOhm	680 µF	-40 C	135 °C	0.535 in	13.6 mm	0.535 in	13.6 mm		0.492 in	750 mA	2000 Hrs	Polar	35 V	General Purpose	20 %	12.5 mm	70 mOhms
Nichicon UCX1V222MNS1MS	Surface Mount	Radial Can - SMD	AEC-Q200	1.1 A	0.709 in	18 mm	35 mOhms	2200 µF	-40 C	135 °C	0.752 "	19.1 mm	0.752 "	19.1 mm			2.2 A	2000 Hrs	Polar	35 V	General Purpose	20 %			0.866 in	22 mm

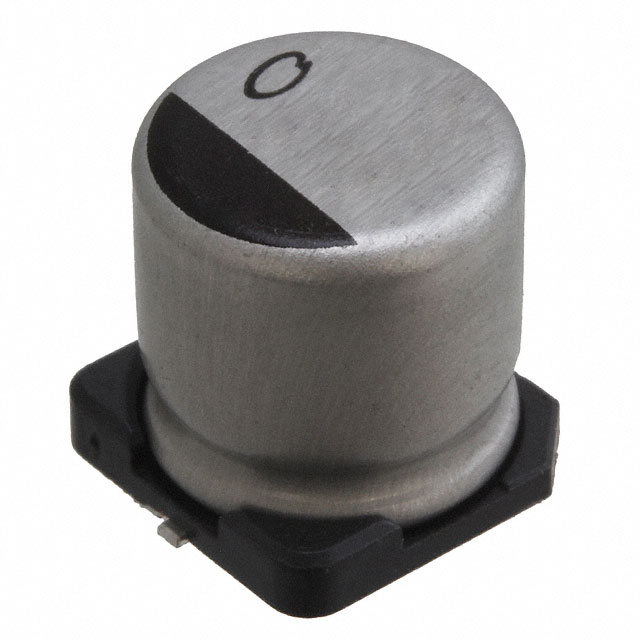

Nichicon UCX1H101MCL1GS	Surface Mount	Radial Can - SMD	AEC-Q200	250 mA	0.394 in	10 mm	200 mOhm	100 µF	-40 C	135 °C	0.406 in	10.3 mm	0.406 "	10.3 mm	0.433 in		500 mA	2000 Hrs	Polar	50 VDC	General Purpose	20 %					11 mm
Nichicon UCX1E152MNS1MS	Surface Mount	Radial Can - SMD	AEC-Q200	600 mA	0.63 in	16 mm	50 mOhms	1.5 mF	-40 C	135 °C	0.673 in	17.1 mm	0.673 in	17.1 mm	0.669 "	17 mm	1.2 A	2000 Hrs	Polar	25 VDC	General Purpose	20 %
Nichicon UCX1E101MCS1GS	Surface Mount	Radial Can - SMD	AEC-Q200	135 mA	0.315 in	8 mm	200 mOhm	100 µF	-40 C	135 °C	0.327 in	8.3 mm	0.327 in	8.3 mm		10.8 mm	270 mA	2000 Hrs	Polar	25 VDC	General Purpose	20 %						0.425 in
Nichicon UCX1E332MNJ1MS	Surface Mount	Radial Can - SMD	AEC-Q200	1.1 A	0.709 in	18 mm	35 mOhms	3.3 mF	-40 C	135 °C	0.752 "	19.1 mm	0.752 "	19.1 mm		22.5 mm	2.2 A	2000 Hrs	Polar	25 VDC	General Purpose	20 %						0.886 in
Nichicon UCX1H681MNJ1MS	Surface Mount	Radial Can - SMD	AEC-Q200	600 mA	0.709 in	18 mm	70 mOhms	680 µF	-40 C	135 °C	0.752 "	19.1 mm	0.752 "	19.1 mm			1.2 A	2000 Hrs	Polar	50 VDC	General Purpose	20 %					0.689 in		17.5 mm
Nichicon UCX1V122MNQ1MS	Surface Mount	Radial Can - SMD		700 mA	0.709 in	18 mm	50 mOhm	1.2 mF	-40 C	135 °C	0.752 "	19.1 mm	0.752 "	19.1 mm			1.4 A	2000 Hrs	Polar	35 V	General Purpose	20 %		50 mOhms			0.689 in		17.5 mm
Nichicon UCX1H391MNS1MS	Surface Mount	Radial Can - SMD	AEC-Q200	375 mA	0.492 in	12.5 mm	90 mOhm	390 µF	-40 C	135 °C	0.535 in	13.6 mm	0.535 in	13.6 mm		14 mm	750 mA	2000 Hrs	Polar	50 VDC	General Purpose	20 %						0.551 in
