QB2525 Series

Catalog

THERMAL CONDUCTOR Q-BRIDGE

Part	Thickness	Thickness	Outline [y]	Outline [x]	Thermal Resistivity	Thermal Resistivity	Thermal Conductivity	Usage	Type	Material
KYOCERA AVX QB2525A60WSC	1.52 mm	0.0598 "	6.35 mm	6.1 mm	3 °C/W	4 °C/W	240 W/m-K 380 W/m-K	Heat Transfer	Thermal Bridge Jumper	Aluminum Nitride
KYOCERA AVX QB2525B60EST	1.52 mm	0.0598 "	6.35 mm	6.1 mm	3 °C/W	4 °C/W	240 W/m-K 380 W/m-K	Heat Transfer	Thermal Bridge Jumper	Beryllium Oxide
KYOCERA AVX QB2525A60ESS	1.52 mm	0.0598 "	6.35 mm	6.1 mm	3 °C/W	4 °C/W	240 W/m-K 380 W/m-K	Heat Transfer	Thermal Bridge Jumper	Aluminum Nitride
KYOCERA AVX QB2525A60EST	1.52 mm	0.0598 "	6.35 mm	6.1 mm	3 °C/W	4 °C/W	240 W/m-K 380 W/m-K	Heat Transfer	Thermal Bridge Jumper	Aluminum Nitride

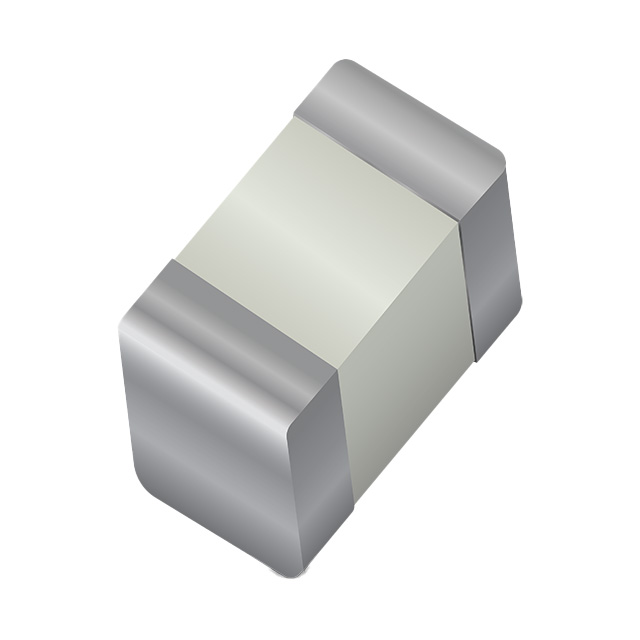

$QB1005A40WYT\500$ KYOCERA AVX QB2525A60WST\500	1.52 mm	0.0598 "	6.35 mm	6.1 mm	3 °C/W	4 °C/W	240 W/m-K 380 W/m-K	Heat Transfer	Thermal Bridge Jumper	Aluminum Nitride
KYOCERA AVX QB2525A60WST	1.52 mm	0.0598 "	6.35 mm	6.1 mm	3 °C/W	4 °C/W	240 W/m-K 380 W/m-K	Heat Transfer	Thermal Bridge Jumper	Aluminum Nitride
KYOCERA AVX QB2525B60ESC	1.52 mm	0.0598 "	6.35 mm	6.1 mm	3 °C/W	4 °C/W	240 W/m-K 380 W/m-K	Heat Transfer	Thermal Bridge Jumper	Beryllium Oxide
KYOCERA AVX QB2525B60WSC	1.52 mm	0.0598 "	6.35 mm	6.1 mm	3 °C/W	4 °C/W	240 W/m-K 380 W/m-K	Heat Transfer	Thermal Bridge Jumper	Beryllium Oxide
$QB2525A60EST\500$ KYOCERA AVX QB2525A60EST\500	1.52 mm	0.0598 "	6.35 mm	6.1 mm	3 °C/W	4 °C/W	240 W/m-K 380 W/m-K	Heat Transfer	Thermal Bridge Jumper	Aluminum Nitride
KYOCERA AVX QB2525A60WSS	1.52 mm	0.0598 "	6.35 mm	6.1 mm	3 °C/W	4 °C/W	240 W/m-K 380 W/m-K	Heat Transfer	Thermal Bridge Jumper	Aluminum Nitride
