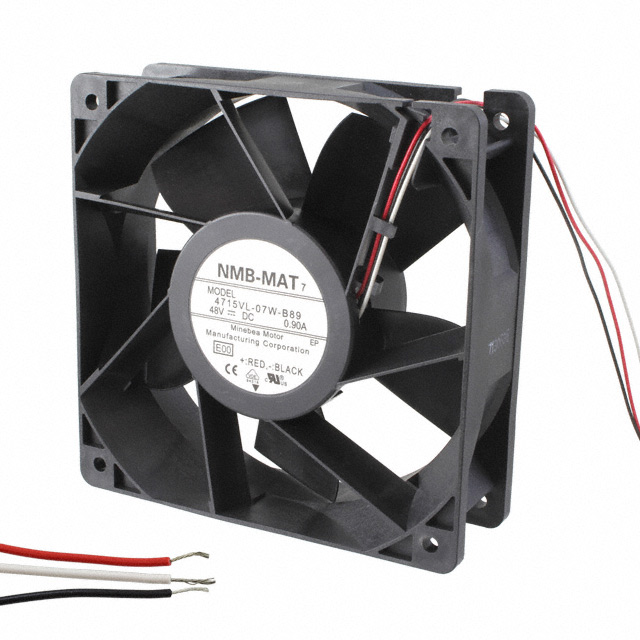

4715VL Series

Catalog

DC AXIAL FAN, 48 V, 120 MM, 38 MM, BALL BEARING

Part	Current Rating (Amps)	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Lifetime @ Temp.	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	RPM	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Static Pressure	Termination	Approval Agency	Features	Noise	Weight	Weight	Fan Type	Width [y]	Air Flow	Air Flow	Power (Watts)
NMB TECHNOLOGIES 4715VL-07W-B69-E00	0.45 A	Plastic	40 V	55.2 VDC	Plastic	100000 Hrs	48 VDC	-10 °C	60 °C	Ball	5000 RPM	120 mm	120 mm	0.92 in H2O	229.2 Pa	3 Wire Leads	CE UL VDE	Locked Rotor Sensor	59.5 dB	370.13 g	0.816 lb	Tubeaxial	38 mm	5.32 m³/min	189.9 CFM	21.6 W

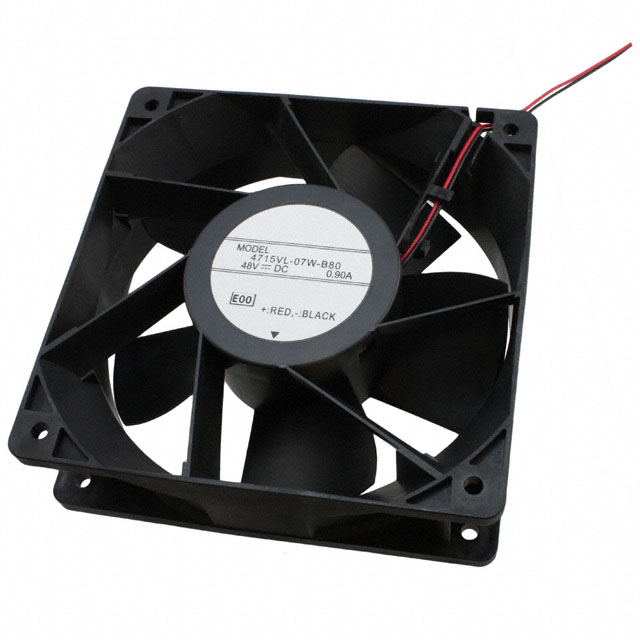

NMB TECHNOLOGIES 4715VL-07W-B80-E00	800 mA	Plastic	40 V	52 VDC	Plastic	100000 Hrs	48 VDC	-10 °C	60 °C	Ball	6400 RPM	120 mm	120 mm			2 Wire Leads	CE UL VDE			370.13 g	0.816 lb	Tubeaxial	38 mm	6.81 mł/min	243.2 CFM	38.4 W
NMB TECHNOLOGIES 4715VL-05W-B79-E00	1.04 A	Plastic	18 VDC	27.6 VDC	Plastic	100000 Hrs	24 VDC	-10 °C	60 °C	Ball	5700 RPM	120 mm	120 mm	1.15 in H2O	286.5 Pa	3 Wire Leads	CE UL VDE	Locked Rotor Sensor	63 dB	370.13 g	0.816 lb	Tubeaxial	38 mm	6.04 m³/min	215.7 CFM	25 W
NMB TECHNOLOGIES 4715VL-05W-B89-E00	1.48 A	Plastic	18 VDC	27.6 VDC	Plastic	100000 Hrs	24 VDC	-10 °C	60 °C	Ball	6400 RPM	120 mm	120 mm			3 Wire Leads	CE UL VDE	Locked Rotor Sensor		370.13 g	0.816 lb	Tubeaxial	38 mm	6.81 mł/min	243.2 CFM	35.5 W
NMB TECHNOLOGIES 4715VL-05W-B70-E00	1.04 A	Plastic	18 VDC	27.6 VDC	Plastic	100000 Hrs	24 VDC	-10 °C	60 °C	Ball	5700 RPM	120 mm	120 mm	1.15 in H2O	286.5 Pa	2 Wire Leads	CE UL VDE		63 dB	370.13 g	0.816 lb	Tubeaxial	38 mm	6.04 m³/min	215.7 CFM	25 W
NMB TECHNOLOGIES 4715VL-05W-B89-E50	1.48 A	Plastic	18 VDC	27.6 VDC	Plastic	100000 Hrs	24 VDC	-10 °C	60 °C	Ball	6400 RPM	120 mm	120 mm			3 Wire Leads	CE UL VDE	Speed Sensor (Tach)		370.13 g	0.816 lb	Tubeaxial	38 mm	6.81 mł/min	243.2 CFM	35.5 W
NMB TECHNOLOGIES 4715VL-04W-B79-E00	2.25 A	Plastic	10 VDC	13.8 VDC	Plastic	100000 Hrs	12 VDC	-10 °C	60 °C	Ball	5700 RPM	120 mm	120 mm	1.15 in H2O	286.5 Pa	3 Wire Leads	CE UL VDE	Locked Rotor Sensor	63 dB	370.13 g	0.816 lb	Tubeaxial	38 mm	6.04 m³/min	215.7 CFM	27 W
NMB TECHNOLOGIES 4715VL-07W-B89-E00	800 mA	Plastic	40 V	52 VDC	Plastic	100000 Hrs	48 VDC	-10 °C	60 °C	Ball	6400 RPM	120 mm	120 mm			3 Wire Leads	CE UL VDE	Locked Rotor Sensor		370.13 g	0.816 lb	Tubeaxial	38 mm	6.81 mł/min	243.2 CFM	38.4 W

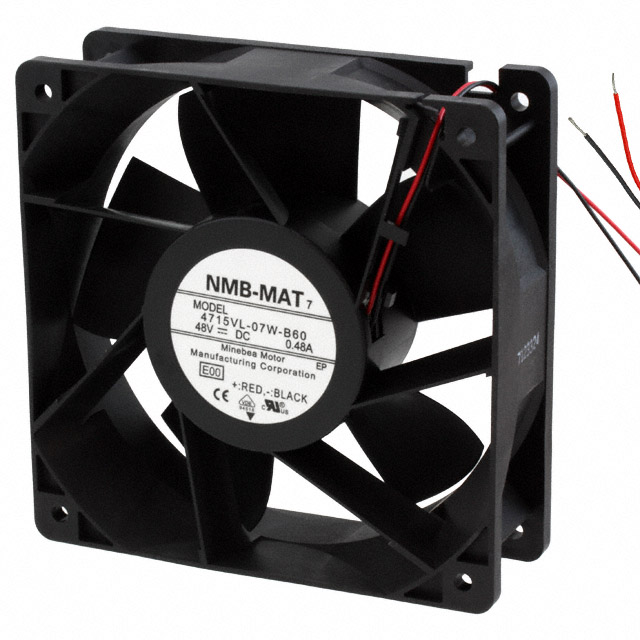

NMB TECHNOLOGIES 4715VL-07W-B60-E00	0.45 A	Plastic	40 V	55.2 VDC	Plastic	100000 Hrs	48 VDC	-10 °C	60 °C	Ball	5000 RPM	120 mm	120 mm	0.92 in H2O	229.2 Pa	2 Wire Leads	CE UL VDE		59.5 dB	370.13 g	0.816 lb	Tubeaxial	38 mm	5.32 m³/min	189.9 CFM	21.6 W
NMB TECHNOLOGIES 4715VL-07W-B89-E50	800 mA	Plastic	40 V	52 VDC	Plastic	100000 Hrs	48 VDC	-10 °C	60 °C	Ball	6400 RPM	120 mm	120 mm			3 Wire Leads	CE UL VDE	Speed Sensor (Tach)		370.13 g	0.816 lb	Tubeaxial	38 mm	6.81 mł/min	243.2 CFM	38.4 W
