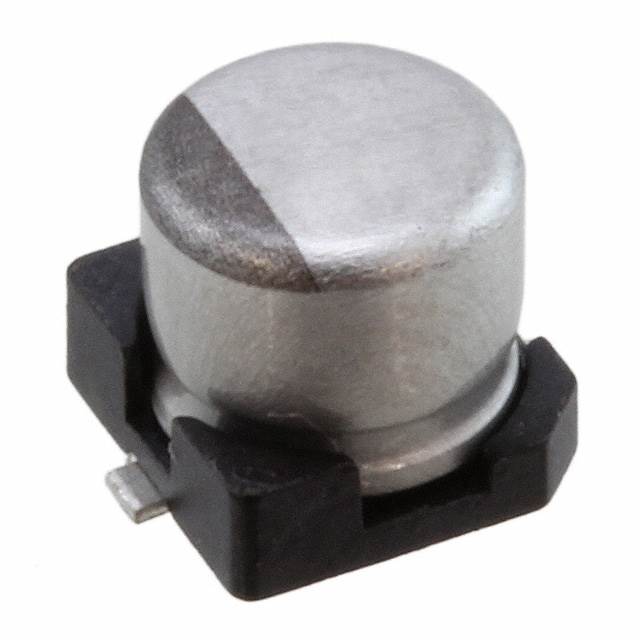

UZR Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SMD 25VOLTS 33UF AEC-Q200

Part	Ratings	Mounting Type	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Applications	Ripple Current @ Low Frequency	Capacitance	Voltage - Rated	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Ripple Current @ High Frequency	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]
Nichicon UZR1E330MCL1GB	AEC-Q200	Surface Mount	0.26 in	6.6 mm	6.6 mm	0.26 in	0.156 in	3.95 mm	1000 Hrs	Automotive	52 mA	33 ÁF	25 VDC	Polar	0.248 "	6.3 mm	Radial Can - SMD	78 mA	20 %	85 °C	-40 C
Nichicon UZR1HR47MCL1GB	AEC-Q200	Surface Mount	0.169 "	4.3 mm	4.3 mm	0.169 in	0.156 in	3.95 mm	1000 Hrs	Automotive	4 mA	0.47 µF	50 VDC	Polar	0.157 in	4 mm	Radial Can - SMD	6 mA	20 %	85 °C	-40 C
Nichicon UZR1V4R7MCL1GB	AEC-Q200	Surface Mount	0.169 "	4.3 mm	4.3 mm	0.169 in	0.156 in	3.95 mm	1000 Hrs	Automotive	18 mA	4.7 µF	35 V	Polar	0.157 in	4 mm	Radial Can - SMD	27 mA	20 %	85 °C	-40 C
