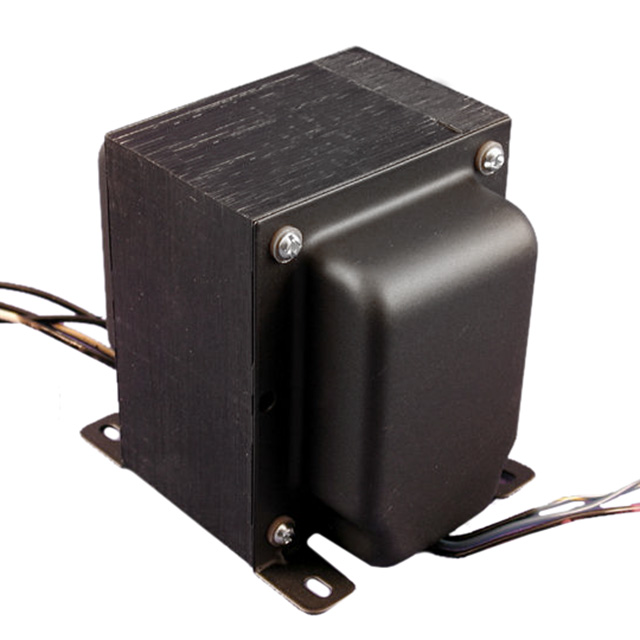

1629 Series
Manufacturer: Hammond Manufacturing
Beta
⌘K
XFMR 6.5K / 4, 8, 16 CHAS MNT
| Part | Weight | Weight | Frequency Response | Frequency Range [Max] | Frequency Range [Min] | Impedance - Secondary (Ohms) | Impedance - Primary (Ohms) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Voltage - Isolation | Mounting Type | Termination Style | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Power Level | Transformer Type | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hammond Manufacturing | 11 lbs | 5 kg | 1 dB | 20 kHz | 20 Hz | 4 Ohms 8 Ohms 16 Ohms | 6.5 kOhms | 95.25 mm | 3.75 " | 4.5 in | 114.3 mm | 2000 Vrms | Chassis Mount | Wire Leads | 4.56 in | 115.82 mm | 30 W | Single Ended Audiophile Ultra-Linear - Tube Output | 1 dB |
