JR Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

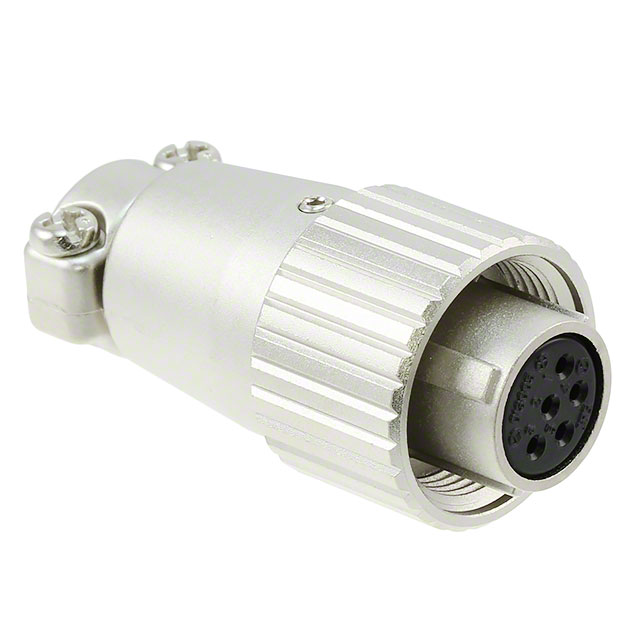

STANDARD CIRCULAR CONNECTOR 5P STRT PLUG SCKT ALUMINUM CON SCRW LK
| Part | Shell Size - Insert [custom] | Contact Finish - Mating | Backshell Material, Plating | Material Flammability Rating | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Cable Opening | Cable Opening | Insert Material | Shell Material | Orientation | Color | Shielding | Primary Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Features | Voltage Rating | Shell Finish | Contact Material | Mounting Type | Fastening Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 13 | Silver | Aluminum Alloy Nickel | UL94 V-0 | 5 | 85 °C | -25 °C | 8.5 mm | 0.335 in | Phenol Formaldehyde (PF) | Aluminum Alloy | Keyed | Silver | Unshielded | Metal | 78.7 µin | 2 µm | Plug Female Sockets | Backshell Cable Clamp Coupling Nut | 250 VAC 350 VDC | Nickel | Copper Alloy | Free Hanging (In-Line) | Threaded | 5 A |
