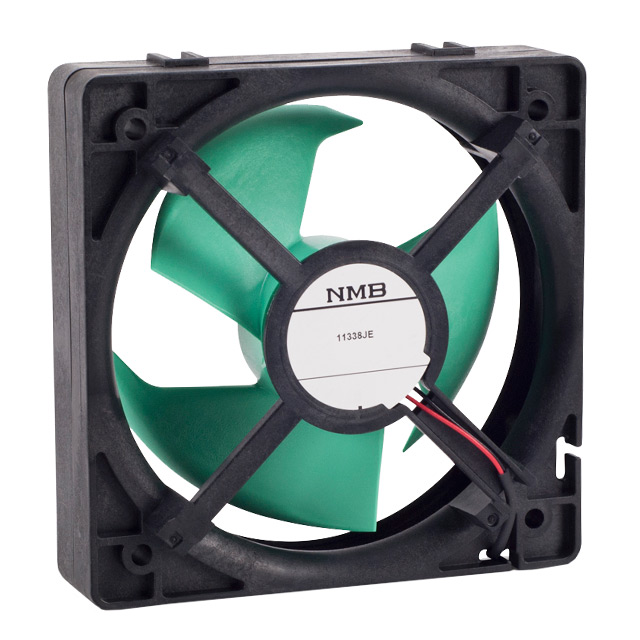

11338JE Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
DC AXIAL FAN, 12 V, SQUARE, 113 MM, 38 MM, BALL BEARING, 52.47 CFM
| Part | Air Flow | Air Flow | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Material - Frame | Weight [custom] | Weight [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Air Flow | Noise | Features | Bearing Type | Size / Dimension [z] | Size / Dimension [x] | Voltage - Rated | Static Pressure | Static Pressure | RPM | Fan Type | Width [y] | Termination | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 52.5 CFM | 1.47 m³/min | Plastic | 13.8 VDC | 7 V | 70000 Hrs | Plastic | 0.375 lb | 170.1 g | 40 °C | -40 C | 52.5 CFM | 32.5 dB | Auto Restart | Ball | 113 mm | 113 mm | 12 VDC | 0.15 in H2O | 37.4 Pa | 2900 RPM | Tubeaxial | 45.5 mm | 2 Wire Leads | 1.56 W |
