SATEL-VL53L7 Series

Breakout board based on the VL53L7CX Time-of-Flight 8x8 multizone ranging sensor with 90 degrees FoV

Catalog

Breakout board based on the VL53L7CX Time-of-Flight 8x8 multizone ranging sensor with 90 degrees FoV

Part	Supplied Contents	Voltage - Supply	Utilized IC / Part	Contents	Sensor Type	Interface	Embedded
STMicroelectronics SATEL-VL53L7CX	Board(s)	3.3 V	VL53L7CX	Board(s)	3D Time-of-Flight Light	I2C

Catalog

Breakout board based on the VL53L7CX Time-of-Flight 8x8 multizone ranging sensor with 90 degrees FoV

Description

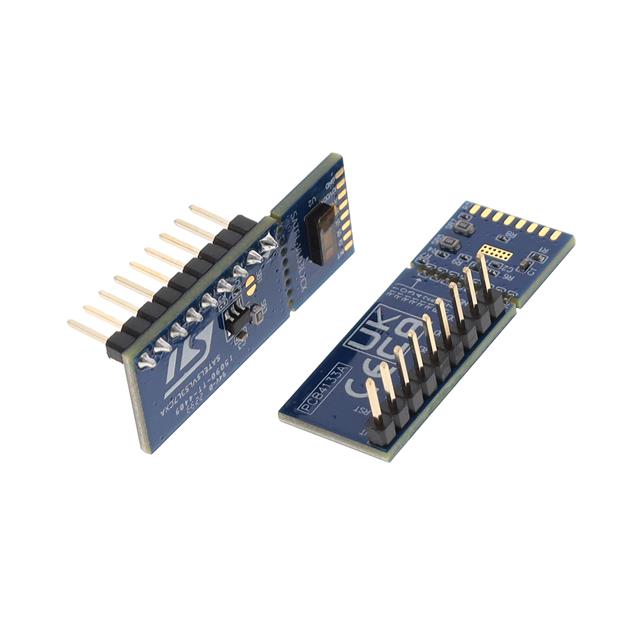

The SATEL-VL53L7CX package includes two breakout boards, which can be easily integrated into the customer's devices. The PCB section that embeds the VL53L7CX module is perforated. The developers can then break off the mini-PCB and use it in a 3.3 V supply application via flying wires. The VL53L7CH artificial enabler Time-of-Flight sensor is also supported by the SATEL-VL53L7CX. This makes it easier to integrate the SATEL-VL53L7CX breakout boards into the development and evaluation devices, thanks to their small size.
