R41-A Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
CONN HSD 4+0 NORMAL VERTICAL TYP
| Part | Voltage Rating | Mating Cycles | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Impedance | Number of Ports | Center Contact Material | Features | Contact Termination | Fastening Type | Mounting Type | Connector Type | Connector Style | Shield Termination | Frequency - Max [Max] | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 100 V | 25 | Liquid Crystal Polymer (LCP) | -40 C | 105 ░C | 100 Ohms | 1 | Copper Alloy | Board Guide Code A | Solder | Latch Lock | Through Hole | Plug Male Pin | Fakra HSD® Quadraxial | Solder | 2 GHz | Black Jet |

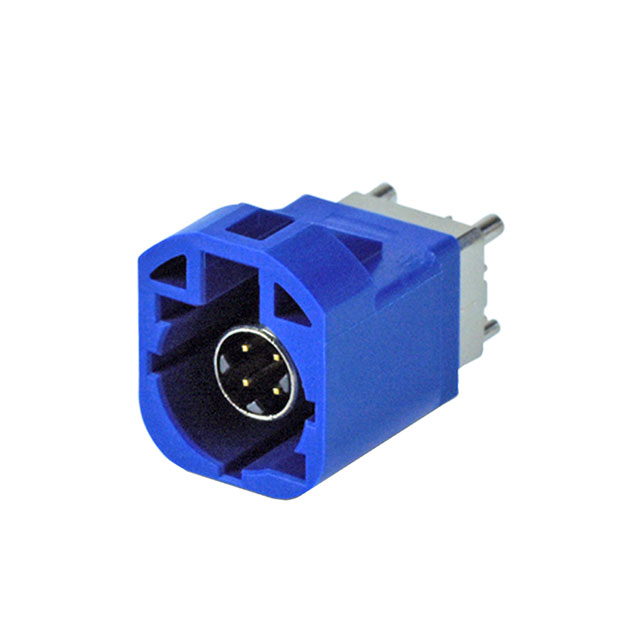

 NMB TECHNOLOGIES | 100 V | 25 | Liquid Crystal Polymer (LCP) | -40 C | 105 ░C | 100 Ohms | 1 | Copper Alloy | Board Guide Code C | Solder | Latch Lock | Through Hole | Plug Male Pin | Fakra HSD® Quadraxial | Solder | 2 GHz | Blue Signal |

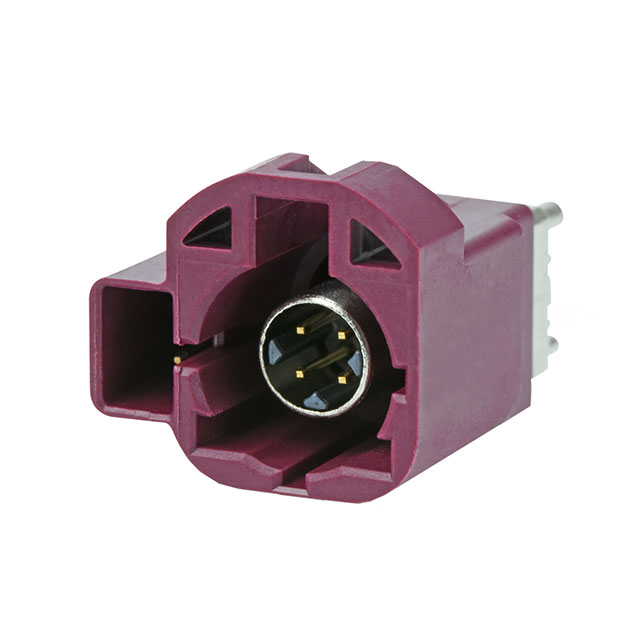

 NMB TECHNOLOGIES | 100 V | 25 | Liquid Crystal Polymer (LCP) | -40 C | 105 ░C | 100 Ohms | 1 | Copper Alloy | Board Guide Code D | Solder | Latch Lock | Through Hole | Plug Male Pin | Fakra HSD® Quadraxial | Solder | 2 GHz | Claret Violet |

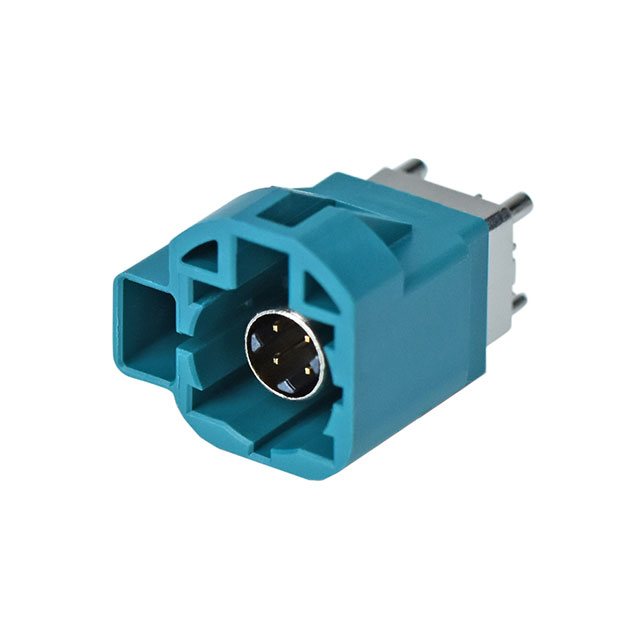

 NMB TECHNOLOGIES | 100 V | 25 | Liquid Crystal Polymer (LCP) | -40 C | 105 ░C | 100 Ohms | 1 | Copper Alloy | Board Guide Code Z | Solder | Latch Lock | Through Hole | Plug Male Pin | Fakra HSD® Quadraxial | Solder | 2 GHz | Blue Water |
 NMB TECHNOLOGIES | 100 V | 25 | Liquid Crystal Polymer (LCP) | -40 C | 105 ░C | 100 Ohms | 1 | Copper Alloy | Board Guide Code A | Solder | Latch Lock | Through Hole | Plug Male Pin | Fakra HSD® Quadraxial | Solder | 2 GHz | Black Jet |

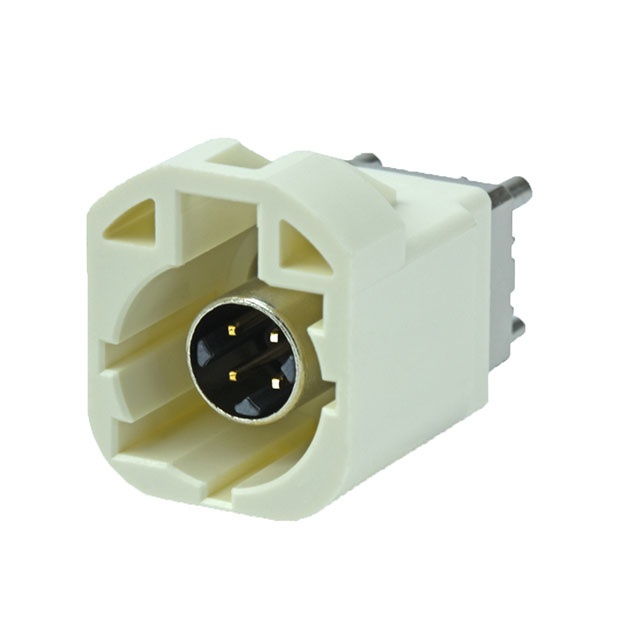

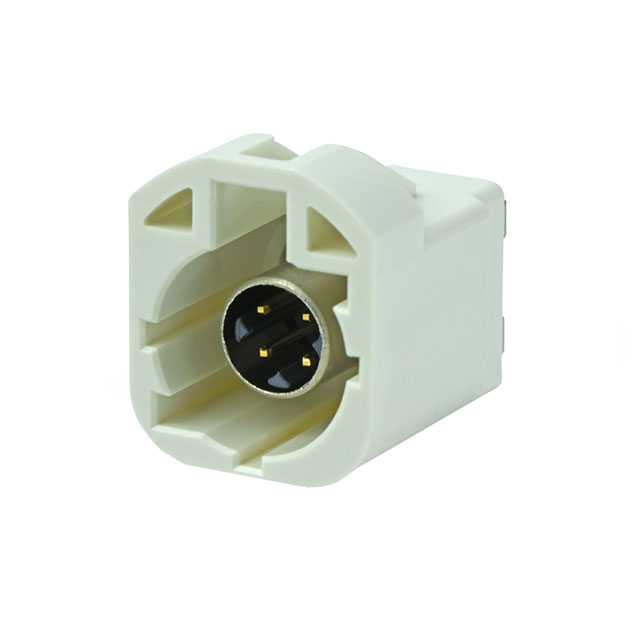

 NMB TECHNOLOGIES | 100 V | 25 | Liquid Crystal Polymer (LCP) | -40 C | 105 ░C | 100 Ohms | 1 | Copper Alloy | Board Guide Code B | Solder | Latch Lock | Through Hole | Plug Male Pin | Fakra HSD® Quadraxial | Solder | 2 GHz | Cream |
 NMB TECHNOLOGIES | 100 V | 25 | Liquid Crystal Polymer (LCP) | -40 C | 105 ░C | 100 Ohms | 1 | Copper Alloy | Board Guide Code B | Solder | Latch Lock | Through Hole | Plug Male Pin | Fakra HSD® Quadraxial | Solder | 2 GHz | Cream |
 NMB TECHNOLOGIES | 100 V | 25 | Liquid Crystal Polymer (LCP) | -40 C | 105 ░C | 100 Ohms | 1 | Copper Alloy | Board Guide Code K | Solder | Latch Lock | Through Hole | Plug Male Pin | Fakra HSD® Quadraxial | Solder | 2 GHz | Blue Signal |
