WFL2 Series

Catalog

CBL ASSY W.FL2 PLUG-PLUG 3.937"

Part	Style	Color	2nd Contact Gender	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	1st Contact Gender	2nd Connector Mounting Type	1st Connector	Cable Type	Cable Type [diameter]	1st Connector Mounting Type	Cable Impedance	Frequency - Max [Max]	Overall Impedance	Length [x]	Length [x]
Hirose Electric Co Ltd WFL2-2LPHF6-04N2TV-A-100	W.FL2 to W.FL2	Black	Female	3.937 in	100 mm	90 °C	-40 C	Female	Free Hanging (In-Line)	W.FL2 Plug Right Angle	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	50 Ohms	6000 MHz
Hirose Electric Co Ltd WFL2-2LPHF6-04N1TV-A-300	W.FL2 to W.FL2	White	Female	11.811 in	300 mm	90 °C	-40 C	Female	Free Hanging (In-Line)	W.FL2 Plug Right Angle	Coaxial Cable	0.81 mm	Free Hanging (In-Line)		6000 MHz	50 Ohms

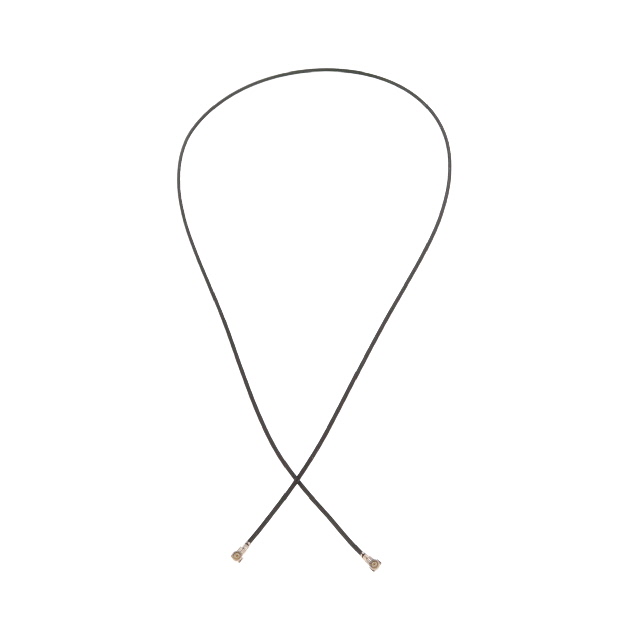

Hirose Electric Co Ltd WFL2-2LPHF6-04N2TV-A-300	W.FL2 to W.FL2	Black	Female	11.811 in	300 mm	90 °C	-40 C	Female	Free Hanging (In-Line)	W.FL2 Plug Right Angle	Coaxial Cable	0.81 mm	Free Hanging (In-Line)		6000 MHz	50 Ohms
Hirose Electric Co Ltd WFL2-2LPHF6-04N2TV-A-200	W.FL2 to W.FL2	Black	Female	7.874 in	200 mm	90 °C	-40 C	Female	Free Hanging (In-Line)	W.FL2 Plug Right Angle	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	50 Ohms	6000 MHz
Hirose Electric Co Ltd WFL2-2LPHF6-04N1TV-A-50	W.FL2 to W.FL2	White	Female			90 °C	-40 C	Female	Free Hanging (In-Line)	W.FL2 Plug Right Angle	Coaxial Cable	0.81 mm	Free Hanging (In-Line)		6000 MHz	50 Ohms	50 mm	1.969 in
Hirose Electric Co Ltd WFL2-2LPHF6-04N1TV-A-500	W.FL2 to W.FL2	White	Female			90 °C	-40 C	Female	Free Hanging (In-Line)	W.FL2 Plug Right Angle	Coaxial Cable	0.81 mm	Free Hanging (In-Line)		6000 MHz	50 Ohms	500 mm	19.69 in
Hirose Electric Co Ltd WFL2-2LPHF6-04N2TV-A-80	W.FL2 to W.FL2	Black	Female	3.15 "	0.08 m	90 °C	-40 C	Female	Free Hanging (In-Line)	W.FL2 Plug Right Angle	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	50 Ohms	6000 MHz
Hirose Electric Co Ltd WFL2-2LPHF6-04N1TV-A-40	W.FL2 to W.FL2	White	Female			90 °C	-40 C	Female	Free Hanging (In-Line)	W.FL2 Plug Right Angle	Coaxial Cable	0.81 mm	Free Hanging (In-Line)	50 Ohms	6000 MHz
Hirose Electric Co Ltd WFL2-2LPHF6-04N1TV-A-150	W.FL2 to W.FL2	White	Female	5.906 in	150 mm	90 °C	-40 C	Female	Free Hanging (In-Line)	W.FL2 Plug Right Angle	Coaxial Cable	0.81 mm	Free Hanging (In-Line)		6000 MHz	50 Ohms
Hirose Electric Co Ltd WFL2-2LPHF6-04N1TV-A-400	W.FL2 to W.FL2	White	Female			90 °C	-40 C	Female	Free Hanging (In-Line)	W.FL2 Plug Right Angle	Coaxial Cable	0.81 mm	Free Hanging (In-Line)		6000 MHz	50 Ohms	400 mm	15.75 in
