FAM65CR51ADZ1 Series

Power Integrated Module (PIM) Boost Converter Stage for Multiphase and Semi-Bridgeless PFC

Catalog

Power Integrated Module (PIM) Boost Converter Stage for Multiphase and Semi-Bridgeless PFC

Part	Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Vgs(th) (Max) @ Id	Supplier Device Package	Technology	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds	Power - Max [Max]	Current - Continuous Drain (Id) @ 25°C	Qualification	Gate Charge (Qg) (Max) @ Vgs [Max]	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Grade

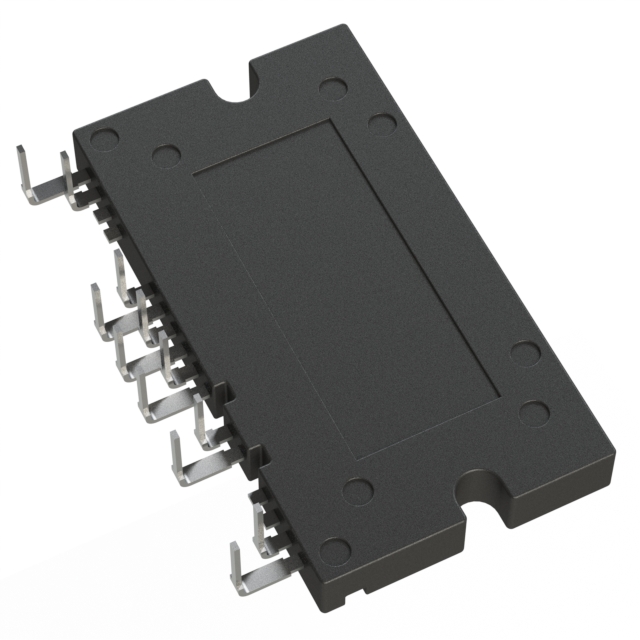

ON Semiconductor FAM65CR51ADZ1	2 N-Channel	-55 °C	150 °C	12-SSIP Exposed Pad Formed Leads	5 V	APMCD-B16	Silicon Carbide (SiC)	Through Hole	4864 pF	189 W	41 A	AEC-Q101	123 nC	650 V	51 mOhm	Automotive

Power Integrated Module (PIM) Boost Converter Stage for Multiphase and Semi-Bridgeless PFC

• Integrated SIP or DIP Boost Converter Stage Power Module for On−board Charger (OBC) in EV−PHEV

• 5 kV/1 sec Electrically Isolated Substrate for Easy Assembly

• Compact Design for Low Total Module Resistance

• Module Serialization for Full Traceability

• Lead Free, RoHS and UL94V−0 Compliant

• Automotive Qualified per AEC Q101 and AQG324 Guidelines

Power integrated MOSFET module with boost converter stage for multi-phase and semi-bridgeless power factor correction (PFC) with Diodes
