C0766 Series
Manufacturer: Prysmian Group
Beta
⌘K

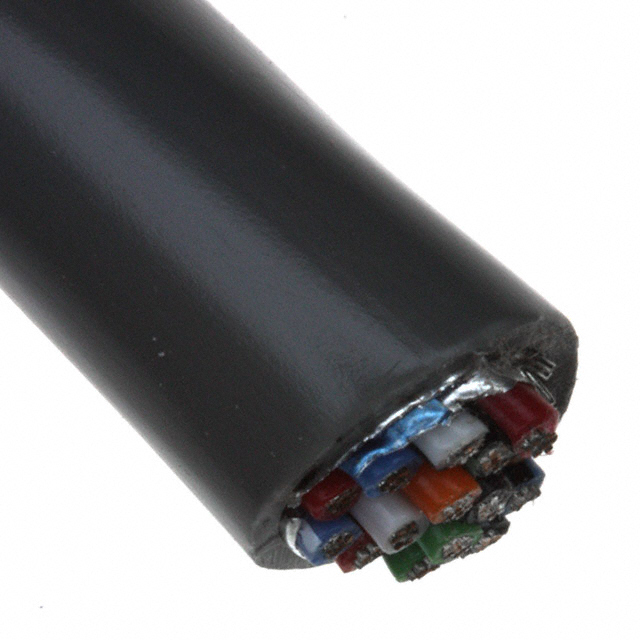

CABLE 15COND 22AWG GRAY SHLD
| Part | Usage | Cable Type | Length | Length | Number of Conductors | Features | Jacket (Insulation) Material | Shield Type | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Jacket Color | Shield Material | Shield Coverage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Computer | Multi-Conductor | 15.24 m 304.8 m | 50 ft 1000 ft | 15 | Drain Wire | Poly-Vinyl Chloride (PVC) | Foil | 300 VDC | 7.72 mm | 0.304 in | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | ASTM B-33 | 30 AWG | 7 | Copper Annealed Tinned | 0.813 mm | 0.032 in | 22 AWG | Gray | ||
Prysmian Group | Computer | Multi-Conductor | 304.8 m | 1000 ft | 15 | Drain Wire | Poly-Vinyl Chloride (PVC) | Foil | 300 VDC | 7.72 mm | 0.304 in | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | ASTM B-33 | 30 AWG | 7 | Copper Annealed Tinned | 0.813 mm | 0.032 in | 22 AWG | Gray | Flexfoil® | 100 % |
