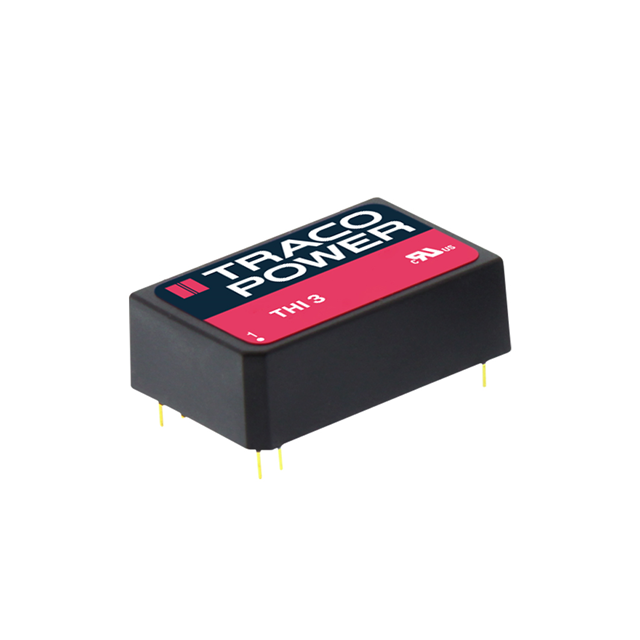

THI 3 Series

Isolated DC/DC Converters - Through Hole

Manufacturer: Traco Power

Catalog

Isolated DC/DC Converters - Through Hole

Catalog

Isolated DC/DC Converters - Through Hole

Part	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Power (Watts)	Applications	Mounting Type	Package / Case	Voltage - Output 1	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Type	Features	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Efficiency	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Traco Power THI 3-1213	200 mA	13.2 V	3 W	ITE (Commercial) Medical	Through Hole	24-DIP Module 6 Leads	15 V	4000 V	1.25 in	0.8 "	31.8 mm	20.3 mm	10.5 mm	0.41 in	Isolated Module	SCP	1	-40 C	75 ░C	10.8 V	62 %
Traco Power THI 3-1212	250 mA	13.2 V	3 W	ITE (Commercial) Medical	Through Hole	24-DIP Module 6 Leads	12 V	4000 V	1.25 in	0.8 "	31.8 mm	20.3 mm	10.5 mm	0.41 in	Isolated Module	SCP	1	-40 C	75 ░C	10.8 V	62 %
Traco Power THI 3-0513	200 mA	5.5 V	3 W	ITE (Commercial) Medical	Through Hole	24-DIP Module 6 Leads	15 V	4000 V	1.25 in	0.8 "	31.8 mm	20.3 mm	10.5 mm	0.41 in	Isolated Module	SCP	1	-40 C	75 ░C	4.5 V	62 %
Traco Power THI 3-0522		5.5 V	3 W	ITE (Commercial) Medical	Through Hole	24-DIP Module 8 Leads	12 V	4000 V	1.25 in	0.8 "	31.8 mm	20.3 mm	10.5 mm	0.41 in	Isolated Module	SCP	2	-40 C	75 ░C	4.5 V	60 %	-12 V	125 mA
Traco Power THI 3-1223		13.2 V	3 W	ITE (Commercial) Medical	Through Hole	24-DIP Module 8 Leads	15 V	4000 V	1.25 in	0.8 "	31.8 mm	20.3 mm	10.5 mm	0.41 in	Isolated Module	SCP	2	-40 C	75 ░C	10.8 V	60 %	-15 V		100 mA	100 mA
Traco Power THI 3-2422		26.4 V	3 W	ITE (Commercial) Medical	Through Hole	24-DIP Module 8 Leads	12 V	4000 V	1.25 in	0.8 "	31.8 mm	20.3 mm	10.5 mm	0.41 in	Isolated Module	SCP	2	-40 C	75 ░C	21.6 V	60 %	-12 V	125 mA
Traco Power THI 3-1211	600 mA	13.2 V	3 W	ITE (Commercial) Medical	Through Hole	24-DIP Module 6 Leads	5 V	4000 V	1.25 in	0.8 "	31.8 mm	20.3 mm	10.5 mm	0.41 in	Isolated Module	SCP	1	-40 C	75 ░C	10.8 V	60 %
