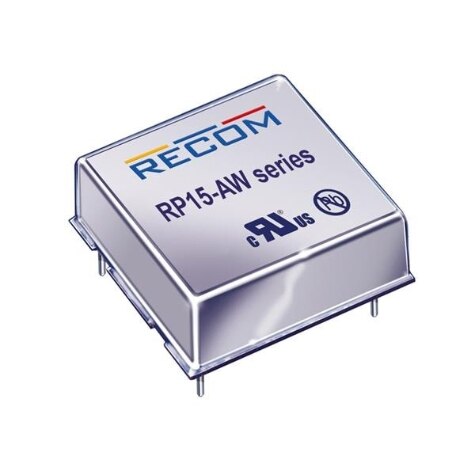

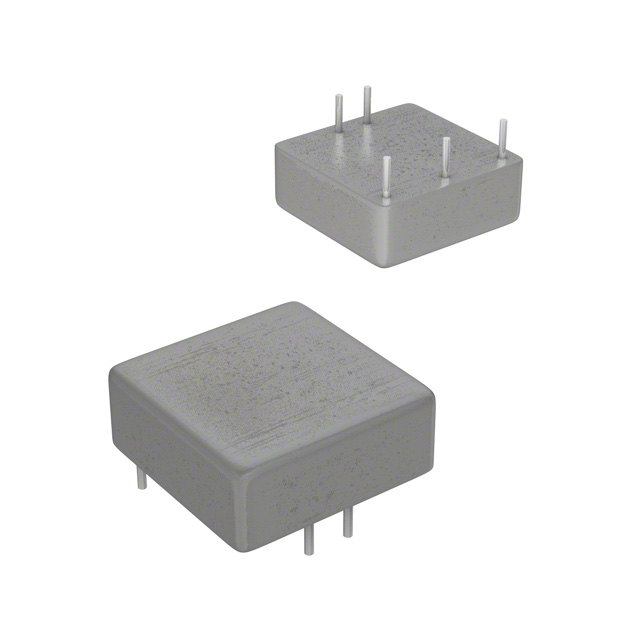

RP15-AW Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 15W DC/DC 1.6KV REG 4:1 18-75IN +/-5OUT
| Part | Control Features | Package / Case | Voltage - Input (Min) [Min] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Output 2 | Current - Output (Max) | Number of Outputs | Voltage - Input (Max) [Max] | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Isolation | Applications | Power (Watts) | Type | Features | Voltage - Output 1 | Current - Output (Max) [Max] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | Active Low Enable | 6-DIP Module | 18 V | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | -5 V | 1.5 A | 2 | 75 V | 85 % | 85 °C | -40 C | Through Hole | 1.6 kV | ITE (Commercial) | 15 W | Isolated Module | OCP OVP Remote On/Off SCP | 5 V | ||
 Recom Power | Active Low Enable | 6-DIP Module 5 Leads | 18 V | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 1 | 75 V | 87 % | 85 °C | -40 C | Through Hole | 1.6 kV | ITE (Commercial) | 15 W | Isolated Module | OCP OVP Remote On/Off SCP | 15 V | 1 A | |||
Recom Power | Active High Enable | 6-DIP Module | 9 V | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | -12 V | 2 | 36 V | 87 % | 85 °C | -40 C | Through Hole | 1.6 kV | ITE (Commercial) | 15 W | Isolated Module | OCP OVP Remote On/Off SCP | 12 V | 625 mA | 625 mA | |
Recom Power | 6-DIP Module 4 Leads | 18 V | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 1 | 75 V | 87 % | 85 °C | -40 C | Through Hole | 1.6 kV | ITE (Commercial) | 15 W | Isolated Module | OCP OVP SCP | 15 V | 1 A | ||||
Recom Power | Active Low Enable | 6-DIP Module | 18 V | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | -12 V | 2 | 75 V | 86 % | 85 °C | -40 C | Through Hole | 1.6 kV | ITE (Commercial) | 15 W | Isolated Module | OCP OVP Remote On/Off SCP | 12 V | 625 mA | 625 mA | |
Recom Power | Active Low Enable | 6-DIP Module | 18 V | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | -15 V | 500 mA | 2 | 75 V | 87 % | 85 °C | -40 C | Through Hole | 1.6 kV | ITE (Commercial) | 15 W | Isolated Module | OCP OVP Remote On/Off SCP | 15 V | ||
Recom Power | Active Low Enable | 6-DIP Module | 9 V | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | -12 V | 2 | 36 V | 87 % | 85 °C | -40 C | Through Hole | 1.6 kV | ITE (Commercial) | 15 W | Isolated Module | OCP OVP Remote On/Off SCP | 12 V | 625 mA | 625 mA | |
Recom Power | 6-DIP Module 4 Leads | 9 V | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 1 | 36 V | 87 % | 85 °C | -40 C | Through Hole | 1.6 kV | ITE (Commercial) | 15 W | Isolated Module | OCP OVP SCP | 15 V | 1 A | ||||
Recom Power | 6-DIP Module 4 Leads | 18 V | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 1 | 75 V | 87 % | 85 °C | -40 C | Through Hole | 1.6 kV | ITE (Commercial) | 15 W | Isolated Module | OCP OVP SCP | 12 V | 1.3 A | ||||
Recom Power | Active High Enable | 6-DIP Module 5 Leads | 18 V | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 1 | 75 V | 87 % | 85 °C | -40 C | Through Hole | 1.6 kV | ITE (Commercial) | 15 W | Isolated Module | OCP OVP Remote On/Off SCP | 15 V | 1 A |
