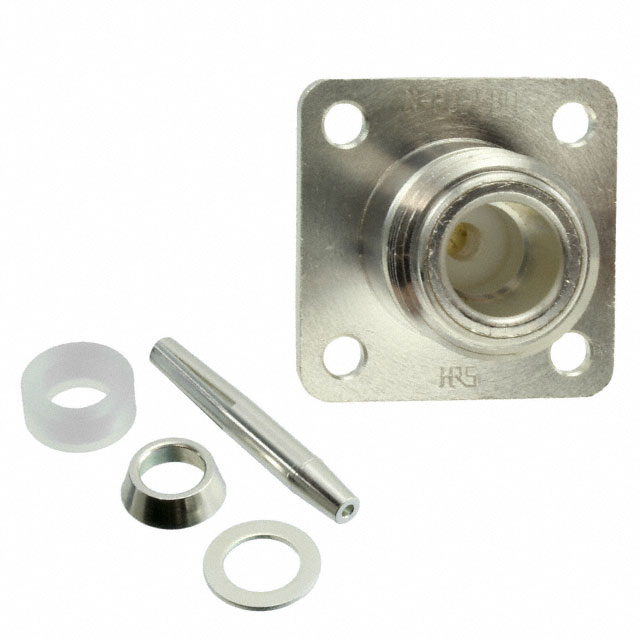

N-PJ-58 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN N JACK STR 50OHM SOLDER
| Part | Mating Cycles | Center Contact Plating | Dielectric Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Fastening Type | Mounting Feature | Shield Termination | Contact Termination | Cable Group | Number of Ports | Impedance | Connector Type | Center Contact Material | Housing Color | Mounting Type | Frequency - Max [Max] | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 1000 | Silver | Polytetrafluoroethylene (PTFE) | Silver | -30 ░C | 60 °C | Brass | Threaded | Flange | Clamp | Solder | RG-58 | 1 | 50 Ohms | Female Socket Jack | Beryllium Copper | Silver | Panel Mount | 2 GHz | N Type |
