FCB11 Series
Manufacturer: ON Semiconductor
Beta
⌘K
MOSFET N-CH 600V 11A D2PAK
| Part | Vgs (Max) | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Gate Charge (Qg) (Max) @ Vgs | Drive Voltage (Max Rds On, Min Rds On) | Current - Continuous Drain (Id) @ 25°C | Drain to Source Voltage (Vdss) | FET Type | Power Dissipation (Max) | Technology | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Package / Case | Supplier Device Package | Input Capacitance (Ciss) (Max) @ Vds |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

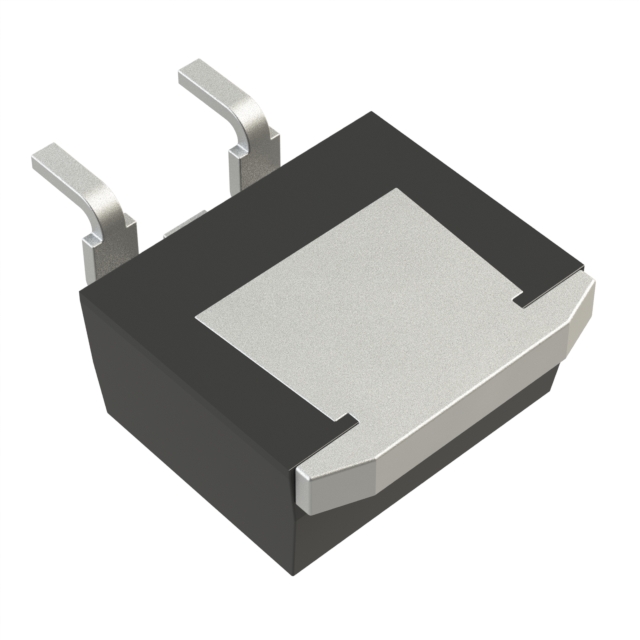

 ON Semiconductor | 30 V | Surface Mount | -55 °C | 150 °C | 52 nC | 10 V | 11 A | 600 V | N-Channel | 125 W | MOSFET (Metal Oxide) | 380 mOhm | 5 V | D2PAK (2 Leads + Tab) TO-263-3 TO-263AB | TO-263 (D2PAK) | 1490 pF |
