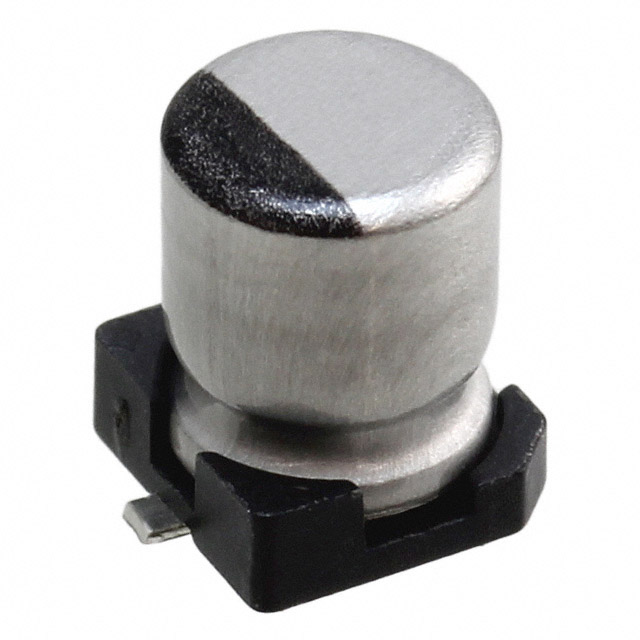

UWJ Series
Manufacturer: Nichicon
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - SMD 50VOLTS 3.3UF AEC-Q200
| Part | Ripple Current @ Low Frequency | Lifetime @ Temp. | Voltage - Rated | Polarization | Applications | Capacitance | Package / Case | Ripple Current @ High Frequency | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Mounting Type | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [diameter] | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | 17 mA | 2000 Hrs | 50 VDC | Polar | General Purpose | 3.3 µF | Radial Can - SMD | 25.5 mA | 4.3 mm | 0.169 " | 0.169 in | 4.3 mm | Surface Mount | 20 % | 85 °C | -40 C | 0.217 " | 5.5 mm | 4 mm | 0.157 in |
 Nichicon | 58 mA | 2000 Hrs | 16 V | Polar | General Purpose | 47 µF | Radial Can - SMD | 87 mA | 6.6 mm | 0.26 in | 0.26 in | 6.6 mm | Surface Mount | 20 % | 85 °C | -40 C | 0.217 " | 5.5 mm | 6.3 mm | 0.248 " |
