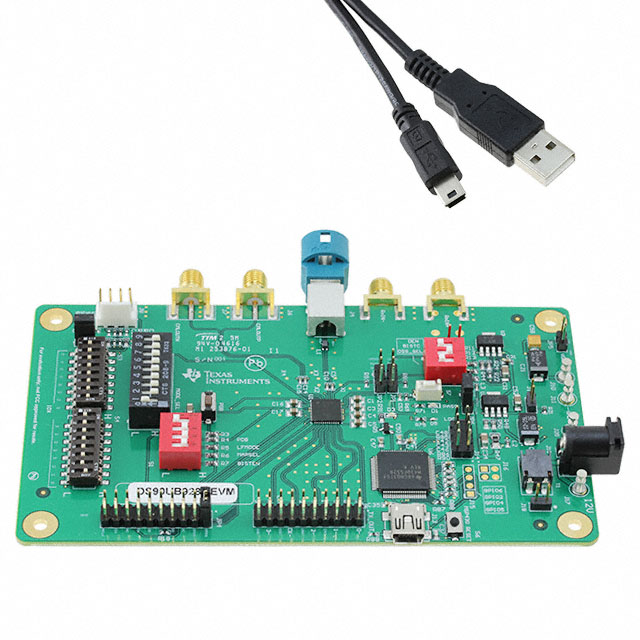

DS90UB928Q-Q1 Series
FPD-Link III Deserializer with Bidirectional Control Channel
Manufacturer: Texas Instruments
Catalog
FPD-Link III Deserializer with Bidirectional Control Channel
Key Features
• Qualified for Automotive Applications AEC-Q100Device Temperature Grade 2: –40°C to +105°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level ±8 kVDevice CDM ESD Classification Level C6Bidirectional Control Channel Interface with I2C Compatible Serial Control BusLow EMI FPD-Link Video OutputSupports High Definition (720p) Digital VideoRGB888 + VS, HS, DE and I2S Audio Supported5 MHz to 85 MHz Pixel Clock SupportUp to 4 I2S Digital Audio Outputs for Surround Sound Applications4 Bidirectional GPIO Channels with 2 Dedicated PinsSingle 3.3 V supply with 1.8 V or 3.3 V Compatible LVCMOS I/O InterfaceAC-Coupled STP Interconnect Up to 10 MetersDC-Balanced and Scrambled Data with Embedded ClockAdaptive Cable EqualizationImage Enhancement (White Balance & Dithering) and Internal Pattern GenerationBackward Compatible ModesQualified for Automotive Applications AEC-Q100Device Temperature Grade 2: –40°C to +105°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level ±8 kVDevice CDM ESD Classification Level C6Bidirectional Control Channel Interface with I2C Compatible Serial Control BusLow EMI FPD-Link Video OutputSupports High Definition (720p) Digital VideoRGB888 + VS, HS, DE and I2S Audio Supported5 MHz to 85 MHz Pixel Clock SupportUp to 4 I2S Digital Audio Outputs for Surround Sound Applications4 Bidirectional GPIO Channels with 2 Dedicated PinsSingle 3.3 V supply with 1.8 V or 3.3 V Compatible LVCMOS I/O InterfaceAC-Coupled STP Interconnect Up to 10 MetersDC-Balanced and Scrambled Data with Embedded ClockAdaptive Cable EqualizationImage Enhancement (White Balance & Dithering) and Internal Pattern GenerationBackward Compatible Modes
Description
AI
The DS90UB928Q-Q1 deserializer, in conjunction with a DS90UB925Q-Q1 or DS90UB927Q-Q1 serializer, provides a solution for distribution of digital video and audio within automotive infotainment systems. The device converts a high-speed serialized interface with an embedded clock, delivered over a single signal pair (FPD-Link III), to four LVDS data/control streams, one LVDS clock pair (OpenLDI (FPD-Link)), and I2S audio data. The serial bus scheme, FPD-Link III, supports high-speed forward channel data transmission and low-speed full duplex back channel communication over a single differential link. Consolidation of audio, video data and control over a single differential pair reduces the interconnect size and weight, while also eliminating skew issues and simplifying system design.
Adaptive input equalization of the serial input stream provides compensation for transmission medium losses and deterministic jitter. EMI is minimized by the use of low voltage differential signaling.
The DS90UB928Q-Q1 deserializer, in conjunction with a DS90UB925Q-Q1 or DS90UB927Q-Q1 serializer, provides a solution for distribution of digital video and audio within automotive infotainment systems. The device converts a high-speed serialized interface with an embedded clock, delivered over a single signal pair (FPD-Link III), to four LVDS data/control streams, one LVDS clock pair (OpenLDI (FPD-Link)), and I2S audio data. The serial bus scheme, FPD-Link III, supports high-speed forward channel data transmission and low-speed full duplex back channel communication over a single differential link. Consolidation of audio, video data and control over a single differential pair reduces the interconnect size and weight, while also eliminating skew issues and simplifying system design.
Adaptive input equalization of the serial input stream provides compensation for transmission medium losses and deterministic jitter. EMI is minimized by the use of low voltage differential signaling.
