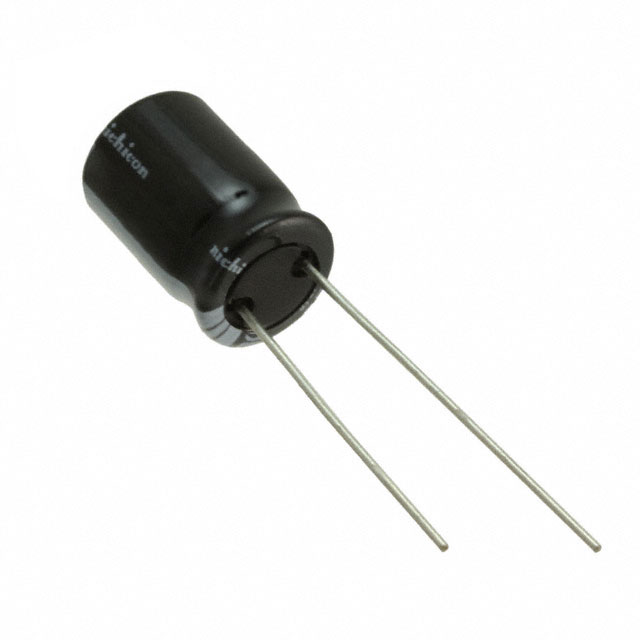

UHD Series

Manufacturer: Nichicon

Catalog

CAP ALUMINUM LYTIC 1000UF 35V 20% (12.5 X 25MM) RADIAL 5MM 2.77A 5000H 105°C BULK

Part	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Package / Case	Voltage - Rated	Applications	Capacitance	Mounting Type	Tolerance	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Impedance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Nichicon UHD1V102MHD1AA	-40 C	105 ░C	2.0775 A	Polar	0.492 in	12.5 mm	5000 Hrs	Can Radial	35 V	General Purpose	1000 µF	Through Hole	20 %	2.77 A	0.197 "	5 mm	1.063 in	27 mm
Nichicon UHD1E102MHD1AA	-40 C	105 ░C	1.77 A	Polar	0.492 in	12.5 mm	5000 Hrs	Can Radial	25 VDC	General Purpose	1000 µF	Through Hole	20 %	2.36 A	0.197 "	5 mm			0.866 in	22 mm
Nichicon UHD0J561MPD1TD	-40 C	105 ░C	570 mA	Polar	0.315 in	8 mm	3000 Hrs	Can Radial	6.3 VDC	General Purpose	560 µF	Through Hole	20 %		0.138 in	3.5 mm					0.512 "	13 mm	72 mOhms
Nichicon UHD0J102MPD1AA	-40 C	105 ░C	772.5 mA	Polar	0.394 in	10 mm	4000 Hrs	Can Radial	6.3 VDC	General Purpose	1000 µF	Through Hole	20 %	1.03 A	0.197 "	5 mm	0.551 in	14 mm
Nichicon UHD1E101MED	-40 C	105 ░C	283.5 mA	Polar	0.248 "	6.3 mm	2000 Hrs	Can Radial	25 VDC	General Purpose	100 µF	Through Hole	20 %	405 mA	0.098 in	2.5 mm		0.492 in					130 mOhms	12.5 mm
Nichicon UHD1E471MPD6AA	-40 C	105 ░C	1.0725 A	Polar	0.394 in	10 mm	4000 Hrs	Can Radial	25 VDC	General Purpose	470 µF	Through Hole	20 %	1.43 A	0.197 "	5 mm						0.689 in	38 mOhms		17.5 mm
Nichicon UHD1V152MHD1CV
Nichicon UHD1C272MHD6TN	-40 C	105 ░C	2.512 A	Polar	0.63 in	16 mm	5000 Hrs	Can Radial	16 V	General Purpose	2700 µF	Through Hole	20 %	3.14 A	0.295 in	7.5 mm			0.866 in	22 mm			18 mOhms
Nichicon UHD1V182MHD	-40 C	105 ░C	2.768 A	Polar	0.63 in	16 mm	5000 Hrs	Can Radial	35 V	General Purpose	1800 µF	Through Hole	20 %	3.46 A	0.295 in	7.5 mm	0.984 in	25 mm					16 mOhms
Nichicon UHD1C331MPD	-40 C	105 ░C	532 mA	Polar	0.315 in	8 mm	3000 Hrs	Can Radial	16 V	General Purpose	330 µF	Through Hole	20 %		0.138 in	3.5 mm					0.512 "	13 mm	72 mOhms
