lgg Series

Manufacturer: Nichicon

Catalog

CAPACITOR: ELECTROLYTIC; SNAP-IN; 1800UF; 160VDC; Ø30X40MM; ±20%

Part	Lead Spacing	Lead Spacing	Applications	Voltage - Rated	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Polarization	Lifetime @ Temp.	Ripple Current @ Low Frequency	Tolerance	Size / Dimension	Size / Dimension [diameter]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]

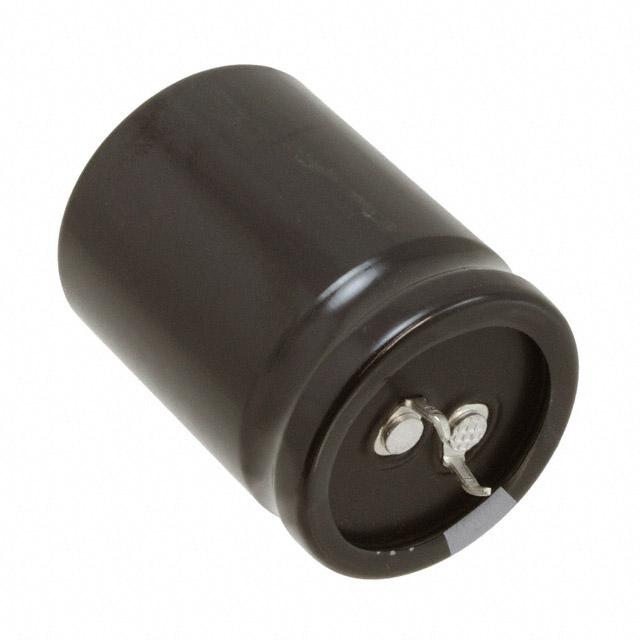

Nichicon LGG2C182MELB40	0.394 in	10 mm	General Purpose	160 V	1800 µF	42 mm	1.654 in	Polar	2000 Hrs	2.7 A	20 %	30 mm	1.181 "	Through Hole	-40 C	105 ░C	Radial Can - Snap-In	4.05 A
Nichicon LGG2E182MELC45	0.394 in	10 mm	General Purpose	250 V	1800 µF			Polar	2000 Hrs	2.5 A	20 %		1.378 "	Through Hole	-40 C	105 ░C	Radial Can - Snap-In	3.75 A	1.85 in	47 mm	35 mm

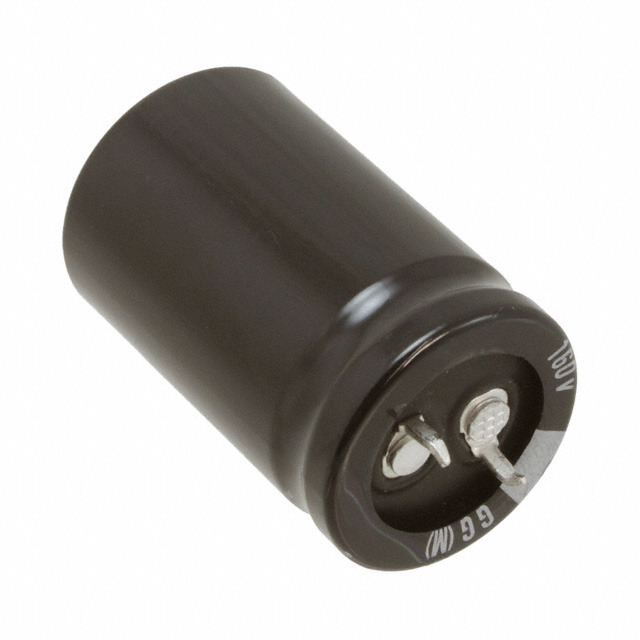

Nichicon LGG2C122MELA40	0.394 in	10 mm	General Purpose	160 V	1.2 mF	42 mm	1.654 in	Polar	2000 Hrs	2.3 A	20 %		0.984 "	Through Hole	-40 C	105 ░C	Radial Can - Snap-In	3.45 A			25 mm
Nichicon LGG2C122MELC25	0.394 in	10 mm	General Purpose	160 V	1.2 mF			Polar	2000 Hrs	2.3 A	20 %		1.378 "	Through Hole	-40 C	105 ░C	Radial Can - Snap-In	3.45 A	1.063 in	27 mm	35 mm
