DF9C Series

Catalog

CONN RCPT 31POS SMD TIN

Part	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Number of Positions [custom]	Contact Finish	Mounting Type	Connector Type	Number of Rows [custom]	Number of Positions

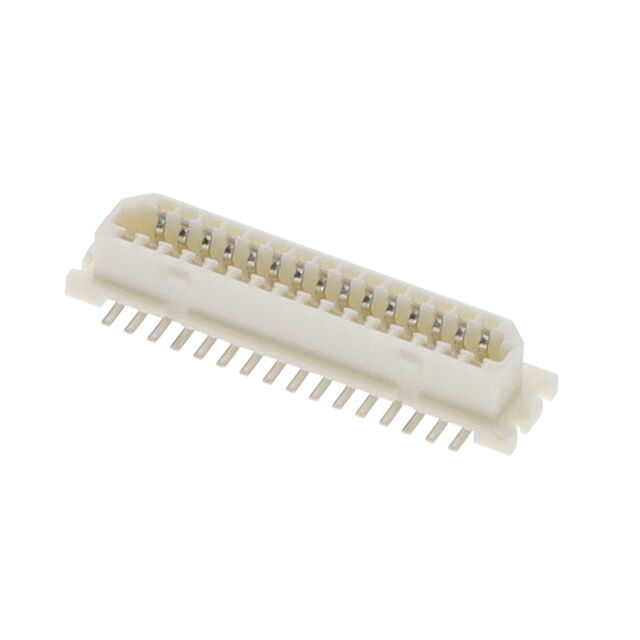

Hirose Electric Co Ltd DF9C-31S-1V(22)	1 Ám	39.4 Áin	4.3 mm	3.3 mm	0.13 in	1 mm	0.039 in	31	Tin	Surface Mount	Receptacle Outer Shroud Contacts	2
Hirose Electric Co Ltd DF9C-31P-1V(20)				3.3 mm	0.13 in	1 mm	0.039 in	31	Tin	Surface Mount	Header Center Strip Contacts	2
Hirose Electric Co Ltd DF9C-41P-1V(20)			4.3 mm	3.3 mm	0.13 in	1 mm	0.039 in		Tin	Surface Mount	Header Center Strip Contacts	2	41
Hirose Electric Co Ltd DF9C-41S-1V(22)	1 Ám	39.4 Áin	4.3 mm	3.3 mm	0.13 in	1 mm	0.039 in		Tin	Surface Mount	Receptacle Outer Shroud Contacts	2	41

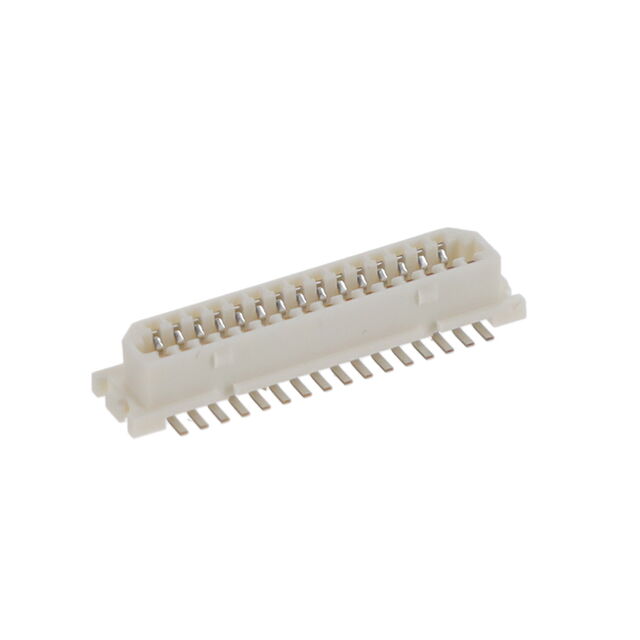

Hirose Electric Co Ltd DF9C-31S-1V(20)			4.3 mm	3.3 mm	0.13 in	1 mm	0.039 in	31	Tin	Surface Mount	Receptacle Outer Shroud Contacts	2
Hirose Electric Co Ltd DF9C-51S-1V(69)	0.203 çm	8 µin		3.3 mm	0.13 in	1 mm	0.039 in		Gold	Surface Mount	Receptacle Outer Shroud Contacts	2	51
