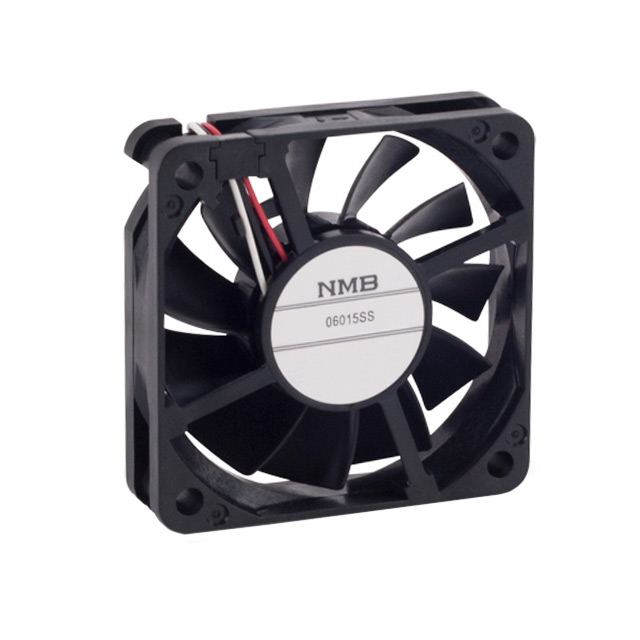

06015SS Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
DC AXIAL FAN, 24 V, SQUARE, 60 MM, 15 MM, SLEEVE BEARING, 22.6 CFM
| Part | Current Rating (Amps) | Lifetime @ Temp. | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Noise | RPM | Termination | Width [y] | Size / Dimension [z] | Size / Dimension [x] | Features | Power (Watts) | Fan Type | Voltage - Rated | Bearing Type | Air Flow | Air Flow | Static Pressure | Static Pressure | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 100 mA | 40000 Hrs | Plastic | 10 VDC | 26.4 VDC | Plastic | 34 dB(A) | 4200 RPM | 3 Wire Leads | 15 mm | 60 mm | 60 mm | Auto Restart Speed Sensor (Tach) | 2.4 W | Tubeaxial | 24 VDC | Sleeve | 0.633 mł/min | 22.6 CFM | 39.8 Pa | 0.16 in H2O | 70 °C | -10 °C |
NMB TECHNOLOGIES | 0.17 A | 40000 Hrs | Plastic | 6 VDC | 13.8 VDC | Plastic | 34 dB(A) | 4200 RPM | 3 Wire Leads | 15 mm | 60 mm | 60 mm | Auto Restart Speed Sensor (Tach) | Tubeaxial | 12 VDC | Sleeve | 0.633 mł/min | 22.6 CFM | 39.8 Pa | 0.16 in H2O | 70 °C | -10 °C |
