ADD5211 Series
Manufacturer: Analog Devices
Beta
⌘K
FOUR-STRING, WHITE LED DRIVER FOR LCD BACKLIGHT APPLICATIONS
| Part | Frequency [Min] | Frequency [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output / Channel | Mounting Type | Supplier Device Package | Topology | Internal Switch(s) | Package / Case | Number of Outputs | Voltage - Supply (Min) [Min] | Type | Dimming | Voltage - Supply (Max) [Max] | Applications | Outputs and Type | Outputs and Type | Features | Voltage - Input [Min] | Voltage - Input [Max] | Supplied Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | 200 kHz | 1.2 MHz | 85 C | -25 °C | 200 mA | Surface Mount | 24-LFCSP (4x4) | Step-Up (Boost) | 24-WFQFN Exposed Pad CSP | 4 | 4.5 V | DC DC Controller | PWM | 40 V | Backlight Lighting | ||||||||

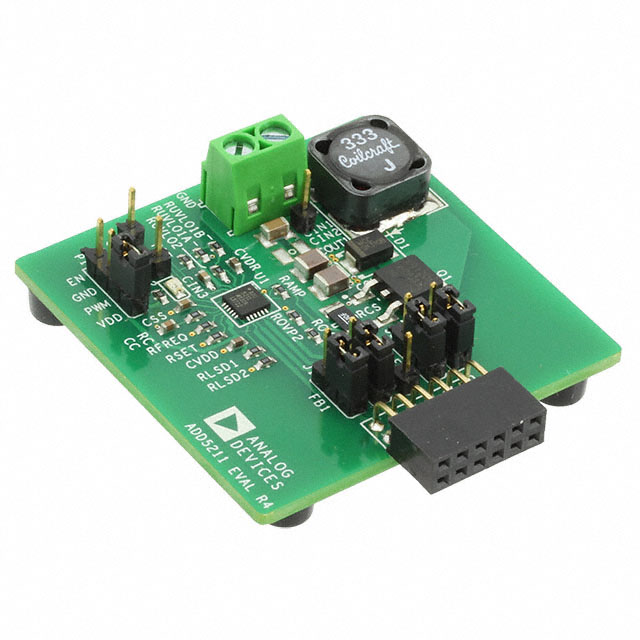

 Analog Devices | 200 mA | 4 | Non-Isolated Outputs | Dimmable | 4.5 V | 40 V | Board(s) | ADD5211 |
