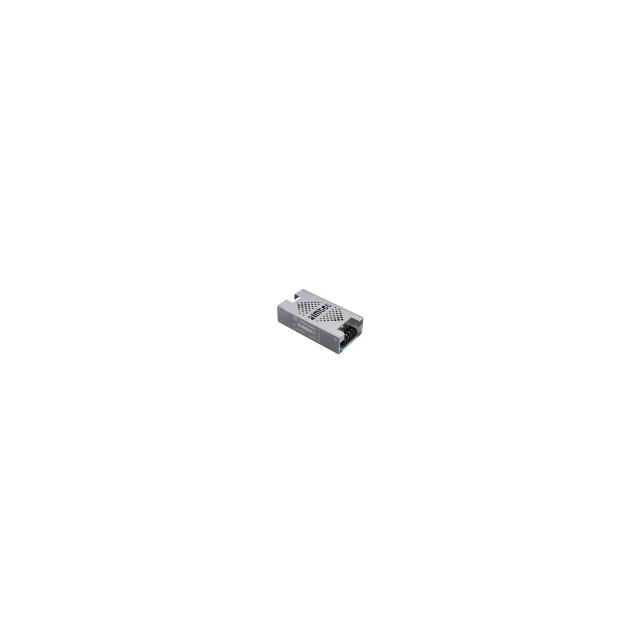

AMES30 Series
Manufacturer: aimtec
Beta
⌘K
AC/DC CONVERTER +/-12V 30W
| Part | Minimum Load Required | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Output 2 | Applications | Approval Agency | Efficiency | Current - Output 2 | Mounting Type | Voltage - Output 1 | Number of Outputs | Power (Watts) | Type | Standard Number | Voltage - Isolation | Features | Current - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 35.1 mm | 65 mm | 1.38 in | 124.5 mm | 2.56 in | 4.9 in | -12 V | ITE (Commercial) Medical | CB CE cURus | 84 % | 1.25 A | Chassis Mount | 12 V | 2 | 30 Watts | Enclosed | 60601-1 60950-1 | 4000 V | Universal Input | 1.25 A | -40 °C | 85 °C | 90 VAC 130 VDC | 264 VAC 370 VDC |
