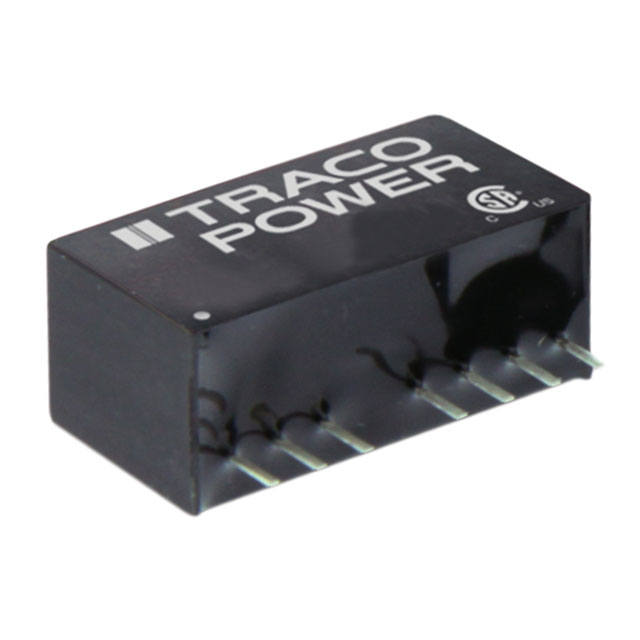

TMR 05 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER +/-5V 2W
| Part | Applications | Efficiency | Voltage - Output 2 | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Features | Type | Power (Watts) | Number of Outputs | Package / Case | Voltage - Isolation | Mounting Type | Voltage - Input (Max) [Max] | Voltage - Output 1 | Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | ITE (Commercial) | 79 % | -5 V | Module | 85 °C | -40 C | Remote On/Off SCP | Isolated Module | 2 W | 2 | 8-SIP Module 7 Leads | 1.5 kV | Through Hole | 9 V | 5 V | 4.5 V | 0.36 in | 0.44 in | 0.86 " | 21.8 mm | 9.2 mm | 11.1 mm |
