SIZ256 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K

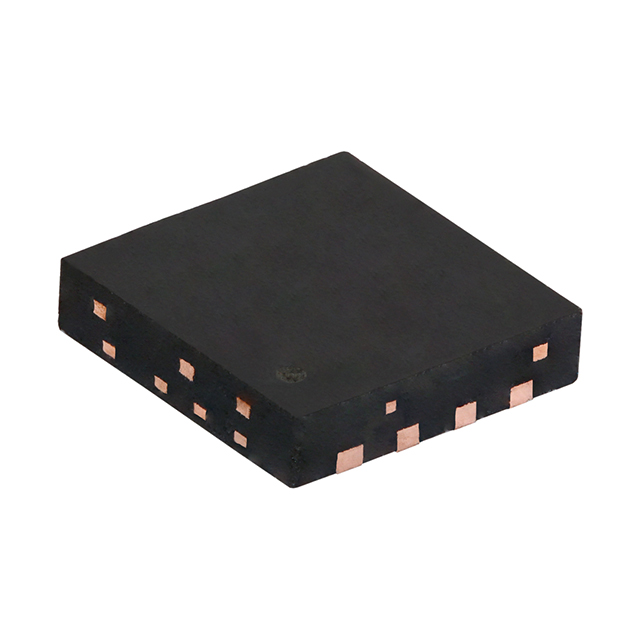

MOSFET 2N-CH 70V 11.5A 8PWRPAIR
| Part | Configuration | Current - Continuous Drain (Id) @ 25°C | Operating Temperature [Min] | Operating Temperature [Max] | Rds On (Max) @ Id, Vgs | Supplier Device Package | Gate Charge (Qg) (Max) @ Vgs | Package / Case | Vgs(th) (Max) @ Id | Power - Max | Input Capacitance (Ciss) (Max) @ Vds | Technology | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 2 N-Channel (Dual) | 11.5 A 31.8 A | -55 °C | 150 °C | 17.6 mOhm | 8-PowerPair® (3.3x3.3) | 27 nC | 8-PowerWDFN | 1.5 V | 4.3 W 33 W | 1060 pF | MOSFET (Metal Oxide) | Surface Mount |
