PAAM30 Series

Encapsulated Power Supply 5V 25 Watt

Manufacturer: TT Electronics/BI

Catalog

Encapsulated Power Supply 5V 25 Watt

Catalog

Encapsulated Power Supply 5V 25 Watt

Part	Mounting Type	Current - Output (Max) [Max]	Standard Number	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Type	Approval Agency	Features	Number of Outputs	Package / Case	Efficiency	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation	Current - Output 1	Line Regulation	Load Regulation	Current - Output (Max)
TT Electronics/BI PAAM30-14	Through Hole	1.25 A	60601-1 60950-1	ITE (Commercial) Medical	0.93 "	1.8 in	64.1 mm	2.52 "	45.6 mm	23.5 mm	80 ¯C	-40 °C	30 Watts	Enclosed	CB CE cURus	Universal Input	1	5-DIP Module 4 Leads	86 %	24 V	90 VAC 120 VDC	264 VAC 370 VDC
TT Electronics/BI PAAM30-13C	Chassis Mount		60601-1 60950-1	ITE (Commercial) Medical	1.14 in	2.12 "	96 mm	3.78 in	53.8 mm	29 mm	80 ¯C	-40 °C	30 Watts	Enclosed	CB CE cURus	DC Input Capable Universal Input	1		86 %	15 V	90 VAC 120 VDC	264 VAC 370 VDC	4000 V	2 A
TT Electronics/BI PAAM30-13	Through Hole	2 A	60601-1 60950-1	ITE (Commercial) Medical	0.93 "	1.8 in	64.1 mm	2.52 "	45.6 mm	23.5 mm	80 ¯C	-40 °C	30 Watts	Enclosed	CB CE cURus	Universal Input	1	5-DIP Module 4 Leads	86 %	15 V	90 VAC 120 VDC	264 VAC 370 VDC

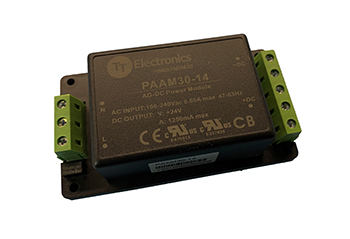

TT Electronics/BI PAAM30-14C	Chassis Mount		60601-1 60950-1	ITE (Commercial) Medical	1.14 in	2.12 "	96 mm	3.78 in	53.8 mm	29 mm	80 ¯C	-40 °C	30 Watts	Enclosed	CB CE cURus	DC Input Capable Universal Input	1		86 %	24 V	90 VAC 120 VDC	264 VAC 370 VDC	4000 V	1.25 A
TT Electronics/BI PAAM30-12	Through Hole	2.5 A	60601-1 60950-1	ITE (Commercial) Medical	0.93 "	1.8 in	64.1 mm	2.52 "	45.6 mm	23.5 mm	80 ¯C	-40 °C	30 Watts	Enclosed	CB CE cURus	Universal Input	1	5-DIP Module 4 Leads	89 %	12 V	90 VAC 120 VDC	264 VAC 370 VDC			0.5 %	±1%
TT Electronics/BI PAAM30-12C	Chassis Mount		60601-1 60950-1	ITE (Commercial) Medical	1.14 in	2.12 "	96 mm	3.78 in	53.8 mm	29 mm	80 °C	-40 C	30 Watts	Enclosed	CB CE cURus	DC Input Capable Universal Input	1		89 %	12 V	90 VAC 120 VDC	264 VAC 370 VDC	4000 V	2.5 A
TT Electronics/BI PAAM30-10	Through Hole		60601-1 60950-1	ITE (Commercial) Medical	0.93 "	1.8 in	64.1 mm	2.52 "	45.6 mm	23.5 mm	80 ¯C	-40 °C	25 W	Enclosed	CB CE cURus	Universal Input	1	5-DIP Module 4 Leads	84 %	5 V	90 VAC 120 VDC	264 VAC 370 VDC			0.5 %	±1%	5 A
TT Electronics/BI PAAM30-10C	Chassis Mount		60601-1 60950-1	ITE (Commercial) Medical	1.14 in	2.12 "	96 mm	3.78 in	53.8 mm	29 mm	80 °C	-40 C	25 W	Enclosed	CB CE cURus	DC Input Capable Universal Input	1		84 %	5 V	90 VAC 120 VDC	264 VAC 370 VDC	4000 V	5 A
