MIC5309 Series

Low Vin/Vout, Low Iq 300mA High PSRR ULDO

Catalog

Low Vin/Vout, Low Iq 300mA High PSRR ULDO

Part	Mounting Type	Output Configuration	Control Features	Voltage Dropout (Max) [Max]	Voltage - Input (Max) [Max]	Protection Features	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	PSRR [Min]	PSRR [Max]	Current - Output	Package / Case	Number of Regulators	Supplier Device Package	Voltage - Output (Min/Fixed)	Voltage - Output (Max) [Max]	Output Type

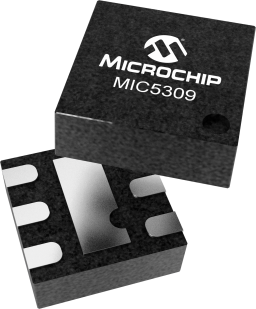

Microchip Technology MIC5309-1.2YMT-TR	Surface Mount	Positive	Enable	0.2 V	5.5 V	Over Current Over Temperature	1.81 mOhm	125 °C	-40 °C	70 dB	90 dB	300 mA	6-TMLF® 6-UFDFN Exposed Pad	1	6-TMLF® (1.6x1.6)	1.2 V
Microchip Technology MIC5309YMT-TR	Surface Mount	Positive	Enable	0.2 V	5.5 V	Over Current Over Temperature		125 °C	-40 °C	70 dB	90 dB	300 mA	6-TMLF® 6-UFDFN Exposed Pad	1	6-TMLF® (1.6x1.6)	0.8 V	2 V	Adjustable
Microchip Technology MIC5309YD6-TR	Surface Mount	Positive	Enable	0.2 V	5.5 V	Over Current Over Temperature		125 °C	-40 °C	70 dB	90 dB	300 mA	SOT-23-6 Thin TSOT-23-6	1	TSOT-23-6	0.8 V	2 V	Adjustable
Microchip Technology MIC5309-1.5YMT-TR	Surface Mount	Positive	Enable	0.2 V	5.5 V	Over Current Over Temperature	1.81 mOhm	125 °C	-40 °C	70 dB	90 dB	300 mA	6-TMLF® 6-UFDFN Exposed Pad	1	6-TMLF® (1.6x1.6)	1.5 V
Microchip Technology MIC5309-1.8YMT-TR	Surface Mount	Positive	Enable	0.2 V	5.5 V	Over Current Over Temperature	1.81 mOhm	125 °C	-40 °C	70 dB	90 dB	300 mA	6-TMLF® 6-UFDFN Exposed Pad	1	6-TMLF® (1.6x1.6)	1.8 V

Catalog

Low Vin/Vout, Low Iq 300mA High PSRR ULDO

Key Features

• * Input voltage range: 1.7V to 5.5V

• * Guaranteed 300mA over temperature

• * Ultra-low dropout voltage: 100mV for typical 300mA load

• * High PSRR: up to 90dB at 1kHz

• * Output Voltage range: 0.8V to 2.0V

• * Very low ground current: 23µA under full load

• * Bias supply voltage range: 2.5V to 5.5V

• * Stable with 1µF ceramic output capacitor

• * 300mA maximum output current at 1.7V input voltage

• * Very fast transient response ideal for digital loads

• * Thermal shutdown and current limit protection

• * Cost effective 6-pin TSOT-23 package

Description

The MIC5309 is a high performance, µCap low dropout regulator that offers ultra-low operating current while maintaining very fast transient response. The MIC5309 can source up to 300mA of output current and can regulate down from a low input supply voltage to increase system efficiency. Ideal for battery-operated applications; the MIC5309 offers extremely low dropout voltage (100mV typically at 300mA load) and low ground current at all load conditions (typically 23µA). The MIC5309 can also be put into a zero off-mode current state, drawing virtually no current when disabled.
