MIC5206 Series

Catalog

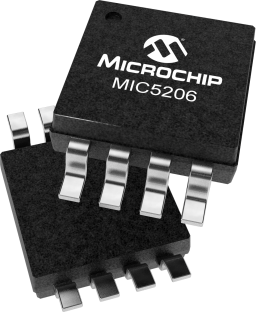

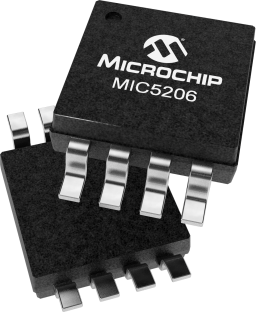

IC REG LINEAR 3.3V 150MA 8MSOP

Part	Supplier Device Package	Control Features	Current - Output	Protection Features	Output Configuration	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	Package / Case	Package / Case [custom]	Package / Case	Voltage - Input (Max) [Max]	Current - Supply (Max) [Max]	Voltage Dropout (Max) [Max]	Mounting Type	Number of Regulators	Output Type	Operating Temperature [Max]	Operating Temperature [Min]
Microchip Technology MIC5206-3.3BMM	8-MSOP	Enable Error Flag	150 mA	Over Current Over Temperature Reverse Polarity	Positive	150 çA	3.3 V	8-MSOP 8-TSSOP	0.118 in	3 mm	16 V	2.5 mA	0.35 V	Surface Mount	1	1.81 mOhm	125 °C	-40 °C
Microchip Technology MIC5206-5.0YMM	8-MSOP	Enable Error Flag	150 mA	Over Current Over Temperature Reverse Polarity	Positive	150 çA	5 V	8-MSOP 8-TSSOP	0.118 in	3 mm	16 V	2.5 mA	0.35 V	Surface Mount	1	1.81 mOhm	125 °C	-40 °C
Microchip Technology MIC5206-3.6YM5-TR	SOT-23-5	Enable Error Flag	150 mA	Over Current Over Temperature Reverse Polarity	Positive	150 çA	3.6 V	SC-74A SOT-753			16 V	2.5 mA	0.35 V	Surface Mount	1	1.81 mOhm	125 °C	-40 °C
Microchip Technology MIC5206-3.6YMM	8-MSOP	Enable Error Flag	150 mA	Over Current Over Temperature Reverse Polarity	Positive	150 çA	3.6 V	8-MSOP 8-TSSOP	0.118 in	3 mm	16 V	2.5 mA	0.35 V	Surface Mount	1	1.81 mOhm	125 °C	-40 °C
Microchip Technology MIC5206-4.0YMM-TR	8-MSOP	Enable Error Flag	150 mA	Over Current Over Temperature Reverse Polarity	Positive	150 çA	4 V	8-MSOP 8-TSSOP	0.118 in	3 mm	16 V	2.5 mA	0.35 V	Surface Mount	1	1.81 mOhm	125 °C	-40 °C
Microchip Technology MIC5206-3.8YM5-TR	SOT-23-5	Enable Error Flag	150 mA	Over Current Over Temperature Reverse Polarity	Positive	150 çA	3.8 V	SC-74A SOT-753			16 V	2.5 mA	0.35 V	Surface Mount	1	1.81 mOhm	125 °C	-40 °C
Microchip Technology MIC5206-3.6YMM-TR	8-MSOP	Enable Error Flag	150 mA	Over Current Over Temperature Reverse Polarity	Positive	150 çA	3.6 V	8-MSOP 8-TSSOP	0.118 in	3 mm	16 V	2.5 mA	0.35 V	Surface Mount	1	1.81 mOhm	125 °C	-40 °C
Microchip Technology MIC5206-3.3BMM-TR	8-MSOP	Enable Error Flag	150 mA	Over Current Over Temperature Reverse Polarity	Positive	150 çA	3.3 V	8-MSOP 8-TSSOP	0.118 in	3 mm	16 V	2.5 mA	0.35 V	Surface Mount	1	1.81 mOhm	125 °C	-40 °C
Microchip Technology MIC5206-2.85BM5-TR	SOT-23-5	Enable Error Flag	150 mA	Over Current Over Temperature Reverse Polarity	Positive	150 çA	2.85 V	SC-74A SOT-753			16 V	2.5 mA	0.35 V	Surface Mount	1	1.81 mOhm	125 °C	-40 °C
Microchip Technology MIC5206-3.8BM5-TR	SOT-23-5	Enable Error Flag	150 mA	Over Current Over Temperature Reverse Polarity	Positive	150 çA	3.8 V	SC-74A SOT-753			16 V	2.5 mA	0.35 V	Surface Mount	1	1.81 mOhm	125 °C	-40 °C
