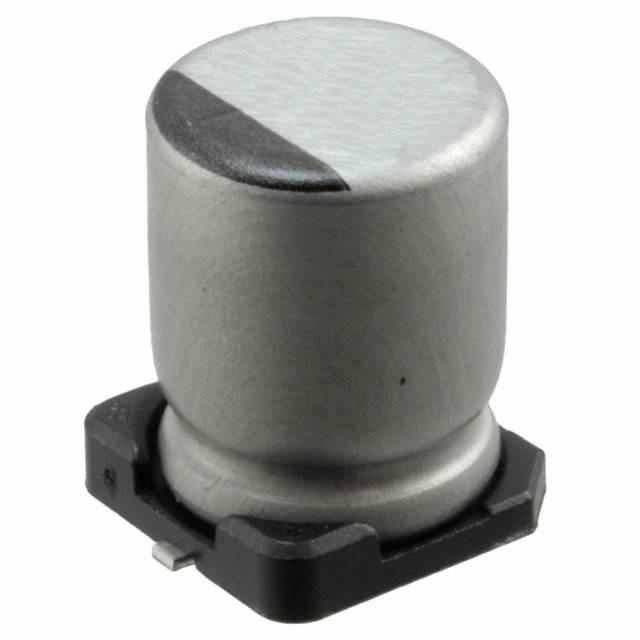

ucm Series

Manufacturer: Nichicon

Catalog

CAPACITOR: ELECTROLYTIC; LOW ESR; SMD; 1800UF; 35VDC; Ø16X16.5MM

Part	Mounting Type	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Ripple Current @ Low Frequency	Impedance	Package / Case	Polarization	Lifetime @ Temp.	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings	Ripple Current @ High Frequency	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Nichicon UCM1V182MNJ1MS	Surface Mount	1800 µF	-55 C	105 ░C	20 %	955 mA	47 mOhms	Radial Can - SMD	Polar	5000 Hrs	35 V	0.63 in	16 mm	17.1 mm	0.673 in	17.1 mm	0.673 in	17.5 mm	0.689 in	AEC-Q200	1.91 A	Automotive
Nichicon UCM1V222MNS1MS	Surface Mount	2.2 mF	-55 C	105 ░C	20 %	1.03 A	45 mOhms	Radial Can - SMD	Polar	5000 Hrs	35 V	0.709 in	18 mm	19.1 mm	0.752 "	19.1 mm	0.752 "	17.5 mm	0.689 in	AEC-Q200	2.06 A	Automotive
Nichicon UCM1H112MNJ1MS	Surface Mount	1100 µF	-55 C	105 ░C	20 %	990 mA	78 mOhms	Radial Can - SMD	Polar	5000 Hrs	50 VDC	0.709 in	18 mm	19.1 mm	0.752 "	19.1 mm	0.752 "	17.5 mm	0.689 in	AEC-Q200	1.98 A	Automotive
Nichicon UCM1C102MNS1GS	Surface Mount	1000 µF	-55 C	105 ░C	20 %	595 mA	60 mOhms	Radial Can - SMD	Polar	2000 Hrs	16 V	0.394 in	10 mm	10.3 mm	0.406 "	10.3 mm	0.406 in		11 mm	AEC-Q200	1.19 A	Automotive	0.433 in
Nichicon UCM0J152MNS1GS	Surface Mount	1.5 mF	-55 C	105 ░C	20 %	425 mA	80 mOhms	Radial Can - SMD	Polar	2000 Hrs	6.3 VDC	0.315 in	8 mm	8.3 mm	0.327 in	8.3 mm	0.327 in		11 mm	AEC-Q200	850 mA	Automotive	0.433 in
Nichicon UCM1V162MNJ1MS	Surface Mount	1600 µF	-55 C	105 ░C	20 %	1.04 A	46 mOhms	Radial Can - SMD	Polar	5000 Hrs	35 V	0.492 in	12.5 mm	13.6 mm	0.535 in	13.6 mm	0.535 in			AEC-Q200	2.08 A	Automotive		0.866 in	22 mm
Nichicon UCM1A102MNL1GS	Surface Mount	1000 µF	-55 C	105 ░C	20 %	425 mA	80 mOhms	Radial Can - SMD	Polar	2000 Hrs	10 V	0.315 in	8 mm	8.3 mm	0.327 in	8.3 mm	0.327 in			AEC-Q200	850 mA	Automotive				0.413 "	10.5 mm
Nichicon UCM1E242MNJ1MS	Surface Mount	2.4 mF	-55 C	105 ░C	20 %	1.04 A	46 mOhms	Radial Can - SMD	Polar	5000 Hrs	25 VDC	0.492 in	12.5 mm	13.6 mm	0.535 in	13.6 mm	0.535 in			AEC-Q200	2.08 A	Automotive		0.866 in	22 mm
Nichicon UCM1A102MNS1GS	Surface Mount	1000 µF	-55 C	105 ░C	20 %	425 mA	80 mOhms	Radial Can - SMD	Polar	2000 Hrs	10 V	0.315 in	8 mm	8.3 mm	0.327 in	8.3 mm	0.327 in		11 mm	AEC-Q200	850 mA	Automotive	0.433 in
Nichicon UCM1H112MNS1MS	Surface Mount	1.1 mF	-55 C	105 ░C	20 %	990 mA	78 mOhms	Radial Can - SMD	Polar	5000 Hrs	50 VDC	0.709 in	18 mm	19.1 mm	0.752 "	19.1 mm	0.752 "	17.5 mm	0.689 in	AEC-Q200	1.98 A	Automotive
