IRF40DM229 Series

Manufacturer: INFINEON

Catalog

STRONGIRFET™ N-CHANNEL POWER MOSFET 40 V ; DIRECTFET™ M PACKAGE; 1.85 MOHM;

Part	Rds On (Max) @ Id, Vgs [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Drain to Source Voltage (Vdss)	Supplier Device Package	Package / Case	Technology	FET Type	Drive Voltage (Max Rds On, Min Rds On)	Mounting Type	Power Dissipation (Max)	Vgs (Max)	Gate Charge (Qg) (Max) @ Vgs [Max]	Vgs(th) (Max) @ Id	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds [Max]

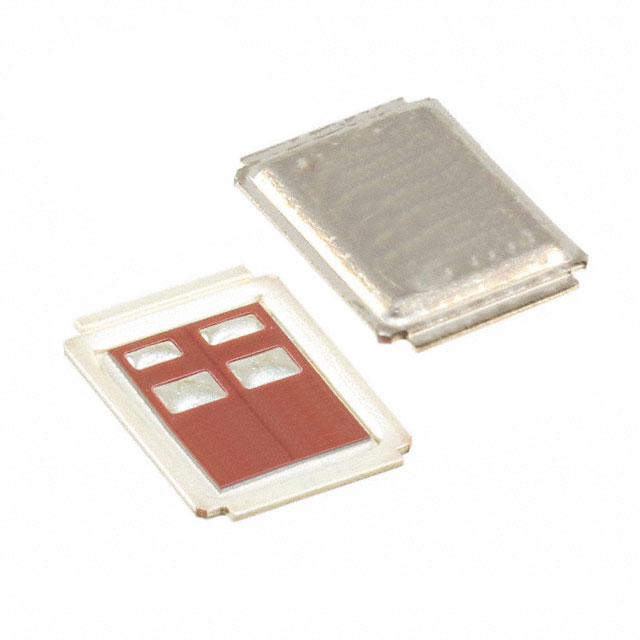

INFINEON IRF40DM229	1.85 mOhm	150 °C	-55 °C	40 V	DirectFET™ Isometric MF	DirectFET™ Isometric MF	MOSFET (Metal Oxide)	N-Channel	6 V 10 V	Surface Mount	83 W	20 V	161 nC	3.9 V	159 A	5317 pF
INFINEON IRF40DM229	1.85 mOhm	150 °C	-55 °C	40 V	DirectFET™ Isometric MF	DirectFET™ Isometric MF	MOSFET (Metal Oxide)	N-Channel	6 V 10 V	Surface Mount	83 W	20 V	161 nC	3.9 V	159 A	5317 pF
