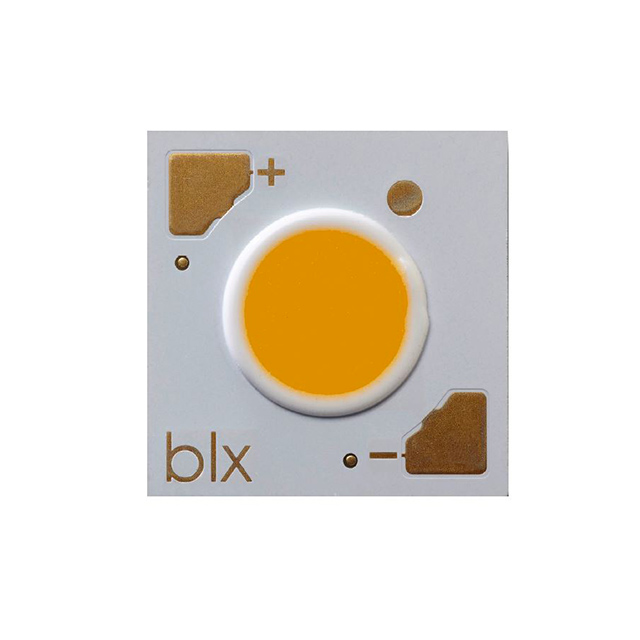

BXRH-30 Series

Manufacturer: BRIDGELUX

Catalog

LED COB H9 ARRAY WHT SQU 3000K

Part	Lumens/Watt @ Current - Test	Type	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Height [z]	Viewing Angle	Configuration	Current - Max [Max]	Color	Temperature - Test	Current - Test	Lens Type	Light Emitting Surface (LES) [diameter]	CCT (K)	CCT (K)	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [x]	Height
BRIDGELUX BXRH-30E3000-D-23	100 lm/W	Chip On Board (COB)	36.6 V	80	1.7 mm	112 °	Square	1.4 A	Warm White	25 °C	1 A	Flat	9.5 mm	3-Step MacAdam Ellipse	3000 K	3660 lm
BRIDGELUX BXRH-30G0300-A-83	114 lm/W	Chip On Board (COB)	35.2 V	90		120 °	Square	180 mA	Warm White	25 °C	80 mA	Flat	3.8 mm	3-Step MacAdam Ellipse	3000 K	321 lm	12.5 mm	12.5 mm	1.63 mm
BRIDGELUX BXRH-30S1001-G-72	96 lm/W	Chip On Board (COB)	18.2 V	98		120 °	Square	960 mA	Warm White	25 °C		Flat	6.6 mm		3000 K	1223 lm	13.5 mm	13.5 mm	1.63 mm
BRIDGELUX BXRH-30G1000-C-23	84 lm/W	Chip On Board (COB)	18.3 V	90	1.7 mm	112 °	Square	1.05 A	Warm White	25 °C	750 mA	Flat	6.6 mm	3-Step MacAdam Ellipse	3000 K	1153 lm	13.35 mm	13.35 mm
BRIDGELUX BXRH-30H3000-D-83	104 lm/W	Chip On Board (COB)	36.6 V	97		120 °	Square	1.2 A	Warm White	25 °C		Flat	8.8 mm	3-Step MacAdam Ellipse	3000 K	2669 lm	19 mm	19 mm	1.63 mm

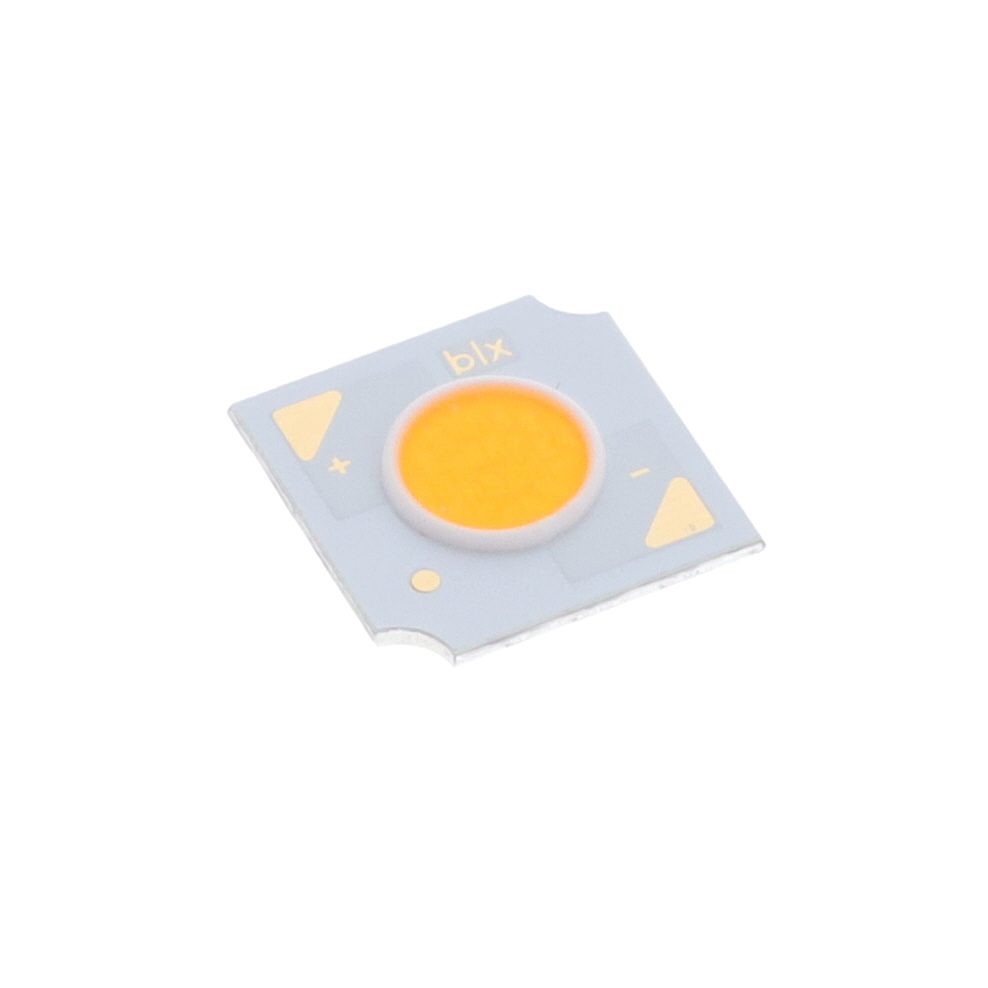

BRIDGELUX BXRH-30E1000-G-83	140 lm/W	Chip On Board (COB)	18.3 V	80		120 °	Square	1.2 A	Warm White	25 °C		Flat	6.6 mm	3-Step MacAdam Ellipse	3000 K	1797 lm	13.5 mm	13.5 mm	1.63 mm

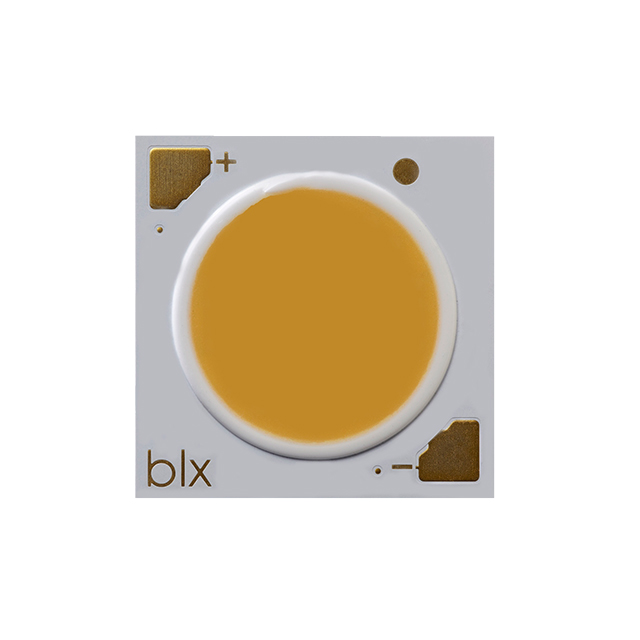

BRIDGELUX BXRH-30G6000-G-23	84 lm/W	Chip On Board (COB)	36.6 V	90	1.7 mm	112 °	Square	2.2 A	Warm White	25 °C	1.75 A	Flat	12.6 mm	3-Step MacAdam Ellipse	3000 K	5380 lm	17.85 mm	17.85 mm
BRIDGELUX BXRH-30E1000-C-23	100 lm/W	Chip On Board (COB)	18.3 V	80	1.7 mm	112 °	Square	1.05 A	Warm White	25 °C	750 mA	Flat	6.6 mm	3-Step MacAdam Ellipse	3000 K	1373 lm	13.35 mm	13.35 mm
BRIDGELUX BXRH-30E0300-A-83	141 lm/W	Chip On Board (COB)	35.2 V	80		120 °	Square	180 mA	Warm White	25 °C	80 mA	Flat	3.8 mm	3-Step MacAdam Ellipse	3000 K	396 lm	12.5 mm	12.5 mm	1.63 mm
BRIDGELUX BXRH-30G1000-B-73	95 lm/W	Chip On Board (COB)	35.4 V	90		120 °	Square	480 mA	Warm White	85 °C	350 mA	Flat	7 mm	3-Step MacAdam Ellipse	3000 K	1173 lm	13.5 mm	13.5 mm	1.63 mm
