ATV2500B Series
Manufacturer: Microchip Technology
Beta
⌘K

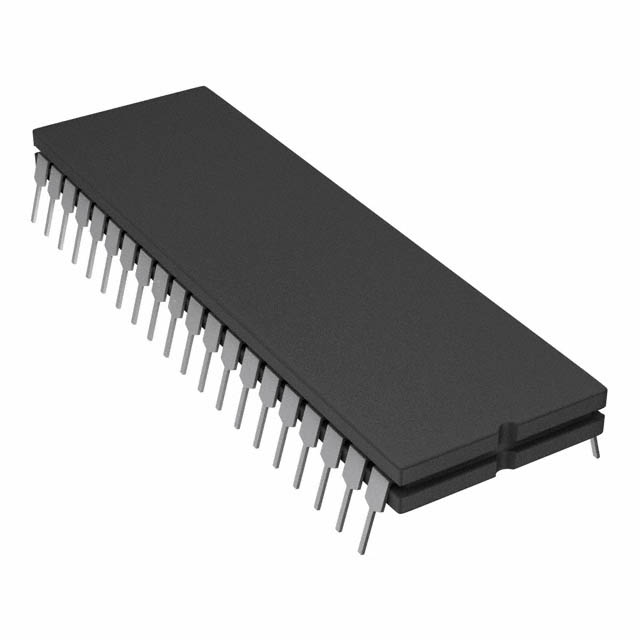

IC CPLD 24MC 25NS 40CERDIP
| Part | Delay Time tpd(1) Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Number of I/O | Voltage Supply - Internal [Min] | Voltage Supply - Internal [Max] | Supplier Device Package | Programmable Type | Number of Macrocells | Package / Case | Package / Case | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | 25 ns | 85 °C | -40 °C | 24 | 4.5 V | 5.5 V | 40-CERDIP | UV Erasable | 24 | 40-CDIP Window | 0.6 in 15.24 mm | Through Hole | |
 Microchip Technology | 25 ns | 70 °C | 0 °C | 24 | 4.75 V | 5.25 V | 40-PDIP | OTP | 24 | 40-DIP | 0.6 in | Through Hole | 15.24 mm |
 Microchip Technology | 25 ns | 85 °C | -40 °C | 24 | 4.5 V | 5.5 V | 44-JLCC (16.63x16.63) | UV Erasable | 24 | 44-CLCC Window (J-Lead) | Surface Mount | ||
Microchip Technology | 25 ns | 70 °C | 0 °C | 24 | 4.75 V | 5.25 V | 44-PLCC (16.6x16.6) | OTP | 24 | 44-LCC (J-Lead) | Surface Mount | ||
Microchip Technology | 12 ns | 70 °C | 0 °C | 24 | 4.75 V | 5.25 V | 44-PLCC (16.6x16.6) | OTP | 24 | 44-LCC (J-Lead) | Surface Mount | ||
Microchip Technology | 20 ns | 70 °C | 0 °C | 24 | 4.75 V | 5.25 V | 44-PLCC (16.6x16.6) | OTP | 24 | 44-LCC (J-Lead) | Surface Mount | ||
Microchip Technology | 25 ns | 85 °C | -40 °C | 24 | 4.5 V | 5.5 V | 44-JLCC (16.63x16.63) | UV Erasable | 24 | 44-CLCC Window (J-Lead) | Surface Mount | ||
Microchip Technology | 15 ns | 70 °C | 0 °C | 24 | 4.75 V | 5.25 V | 44-JLCC (16.63x16.63) | UV Erasable | 24 | 44-CLCC Window (J-Lead) | Surface Mount | ||
Microchip Technology | 15 ns | 70 °C | 0 °C | 24 | 4.75 V | 5.25 V | 44-PLCC (16.6x16.6) | OTP | 24 | 44-LCC (J-Lead) | Surface Mount | ||
Microchip Technology | 12 ns | 70 °C | 0 °C | 24 | 4.75 V | 5.25 V | 44-JLCC (16.63x16.63) | UV Erasable | 24 | 44-CLCC Window (J-Lead) | Surface Mount |
