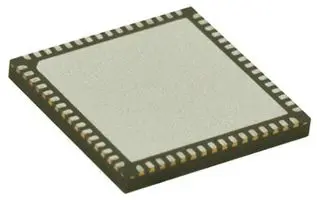

PIC32MX695F512L Series
Manufacturer: Microchip Technology
Catalog
Key Features
• * 80MHz/105DMIPS, 32-bit MIPS M4K® Core
• * USB 2.0 On-The-Go Peripheral with integrated PHY
• * 10/100 Ethernet MAC with MII/RMII Interfaces
• * 4 Dedicated DMA Channels for USB OTG & Ethernet
• * 5 Stage pipeline, Harvard architecture
• * MIPS16e mode for up to 40% smaller code size
• * Single cycle multiply and hardware divide unit
• * 32 x 32-bit Core Registers
• * 32 x 32-bit Shadow Registers
• * Fast context switch and interrupt response
• * 512K Flash (plus 12K boot Flash)
• * 128K RAM (can execute from RAM)
• * 8 Channel General Hardware DMA Controller
• * Flash prefetch module with 256 Byte cache
• * Lock instructions or data in cache for fast access
• * Programmable vector interrupt controller
• * Fast and Accurate 16 channel 10-bit ADC,
• * Max 1 Mega sample per second at +/- 1LSB, conversion available during SLEEP & IDLE
• * RUN, IDLE, and SLEEP modes
• * Multiple switchable clock modes for each power mode, enables optimum power settings
• * iFlow Trace: Non-intrusive Hardware Instruction Trace port (5 Wires)
• * 8 hardware breakpoints (6 Instruction and 2 Data)
• * 2 wire programming and debugging interface
• * JTAG interface supporting Programming, Debugging and Boundary scan
• * Fail-Safe Clock Monitor - allows safe shutdown if clock fails
• * 2 Internal oscillators (8MHz & 31KHz)
• * Hardware RTCC (Real-Time Clock and Calendar with Alarms)
• * Watchdog Timer with separate RC oscillator
• * Pin compatible with 16-bit PIC® MCUs
• * Serial Communication Modules allow flexible UART/SPI/I2C™ configuration
Description
AI
The PIC32MX5/6/7 series with integrated 10/100 Mbit Ethernet MAC and industry-leading connectivity and peripheral options enables you to build embedded connectivity-based applications. These MCUs are fully supported by the MPLAB® Harmony integrated software framework, which features software solutions to accelerate your application development.
**Key Features**
* 80 MHz/105 DMIPS performance
* Integrated 10/100 Mbps Ethernet MAC
* Dedicated DMA interface for direct access to the entire system RAM
* Industry-standard RMII/MII interface to PHY
* Pre-programmed MAC address
* Full speed USB
* Rich peripheral set
