High IP3 SMT Amplifier, 0.2 - 4.0 GHz
Key Features
• Low Noise Figure: 2.2 dB
• High P1dB Output Power: +22 dBm
• High Output IP3: +40 dBm
• Gain: 13 dB
• 50 Ohm I/O’s - No External Matching
• Industry Standard SOT89 Package
Description
AI

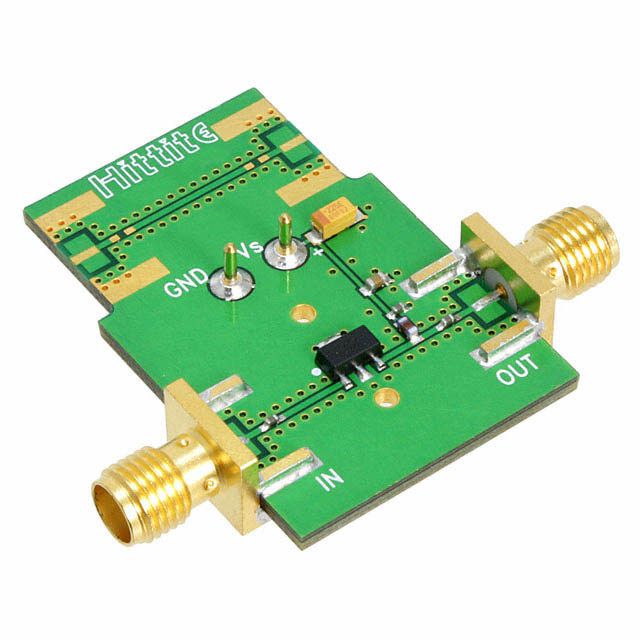

The HMC636ST89(E) is a GaAs PHEMT, High Linearity, Low Noise, Wideband Gain Block Amplifier covering 0.2 to 4.0 GHz. Packaged in an industry standard SOT89, the amplifier can be used as either a cascadable 50 Ohm gain stage, a PA Pre-Driver, a Low Noise Amplifier, or a Gain Block with up to +23 dBm output power. This versatile Gain Block Amplifier is powered from a single +5V supply and requires no external matching components. The internally matched topology makes this amplifier compatible with virtually any PCB material or thickness.ApplicationsCellular / PCS / 3GWiMAX, WiBro, & Fixed WirelessCATV & Cable ModemMicrowave Radio
