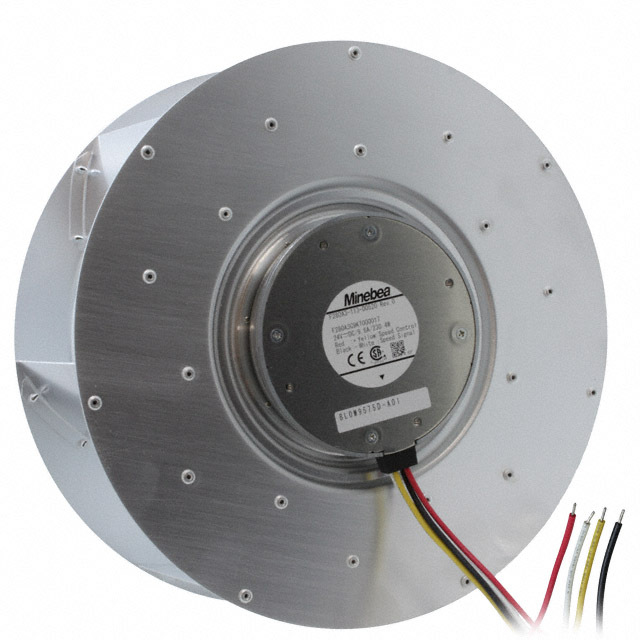

F280A3 Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
FAN BLOWER, F280 SERIES, MOTORIZED IMPELLER, 24 VDC, DC, 280 MM, 128.7 MM, 1166 CFM
| Part | Lifetime @ Temp. | Material - Blade [custom] | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Bearing Type | Weight | Weight | Fan Type | Termination | Size / Dimension | Size / Dimension [diameter] | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Air Flow | Air Flow | Width [x] | Features | Noise | Static Pressure | Static Pressure | Power (Watts) | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 70000 Hrs | Aluminum | 18 VDC | 30 V | 7.3 A | Ball | 2.1 kg | 4.6 lbs | Motorized Impellers | 4 Wire Leads | Round | 280 mm | 24 VDC | 70 °C | -30 ░C | -30 °C | 70 °C | 1166 CFM | 32.65 m³/min | 128.7 mm | PWM Control Speed Sensor (Tach) | 77 dB | 1.913 in H2O | 476.5 Pa | 175.2 W | 2150 RPM |
