002223 Series

Headers & Wire Housings KK 100 Hdr FrLk Vert 11 Ckt Tin

Manufacturer: Molex

Catalog

Headers & Wire Housings KK 100 Hdr FrLk Vert 11 Ckt Tin

Catalog

Headers & Wire Housings KK 100 Hdr FrLk Vert 11 Ckt Tin

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Connector Type	Mounting Type	Number of Positions	Contact Shape	Number of Positions Loaded	Termination	Shrouding	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Fastening Type	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Material	Insulation Color	Contact Finish - Post	Contact Type	Insulation Height	Insulation Height	Overall Contact Length [x]	Overall Contact Length [x]	Number of Positions Loaded
Molex 0022232118	1.52 µm	60 µin	Automotive General Purpose Medical Telecommunications	Header	Through Hole	11	Square	All	Solder	Shrouded - 1 Wall	Nylon Polyamide (PA)	0.1 "	2.54 mm	3.56 mm	0.14 in	0.56 in	14.22 mm	Friction Lock	7.49 mm	0.295 in	UL94 V-0	Board to Board Cable	60 µin	1.52 Ám	1	Brass	White	Tin	Male Pin	0.322 in	8.18 mm
Molex 0022235084	1.52 µm	60 µin	Automotive General Purpose Medical Telecommunications	Header	Through Hole	8	Square	All	Solder	Shrouded - 1 Wall	Polyester Glass Filled	0.1 "	2.54 mm	3.56 mm	0.14 in	0.56 in	14.22 mm	Friction Lock	7.49 mm	0.295 in	UL94 V-0	Board to Board Cable	60 µin	1.52 Ám	1	Brass	Natural	Tin	Male Pin	0.322 in	8.18 mm
Molex 0022236032	1.52 µm	60 µin	Automotive General Purpose Medical Telecommunications	Header	Through Hole		Square	All	Solder	Shrouded - 1 Wall	Nylon Polyamide (PA)	0.1 "	2.54 mm	14.73 mm	0.58 in			Friction Lock	7.49 mm	0.295 in	UL94 V-0	Board to Board Cable	60 µin	1.52 Ám	1	Brass	White	Tin	Male Pin	0.322 in	8.18 mm	25.4 mm	1 in
Molex 0022232038	1.52 µm	60 µin	Automotive General Purpose Medical Telecommunications	Header	Through Hole		Square	All	Solder	Shrouded - 1 Wall	Nylon Polyamide (PA)	0.1 "	2.54 mm	3.56 mm	0.14 in	0.56 in	14.22 mm	Friction Lock	7.49 mm	0.295 in	UL94 V-0	Board to Board Cable	60 µin	1.52 Ám	1	Brass	White	Tin	Male Pin	0.322 in	8.18 mm
Molex 0022233050	1.52 µm	60 µin	Automotive General Purpose Medical Telecommunications	Header	Through Hole	5	Square	All	Solder	Shrouded - 1 Wall	Nylon Polyamide (PA)	0.1 "	2.54 mm	4.45 mm	0.175 in	0.5 in	12.7 mm	Friction Lock	6.6 mm	0.26 in	UL94 V-0	Board to Board Cable	60 µin	1.52 Ám	1	Brass	White	Tin	Male Pin	0.322 in	8.18 mm

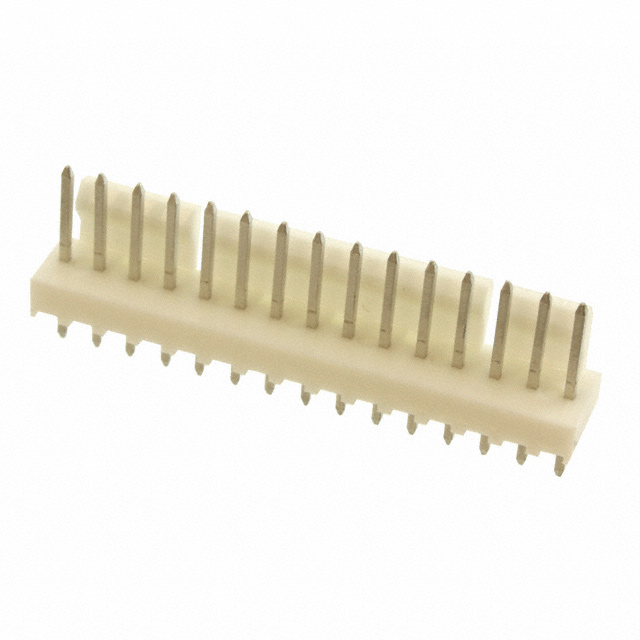

Molex 0022232151	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Header	Through Hole	15	Square	All	Solder	Shrouded - 1 Wall	Nylon Polyamide (PA)	0.1 "	2.54 mm	3.56 mm	0.14 in	0.56 in	14.22 mm	Friction Lock	7.49 mm	0.295 in	UL94 V-0	Board to Board Cable	100 çin	2.54 çm	1	Brass	White	Tin	Male Pin	0.322 in	8.18 mm

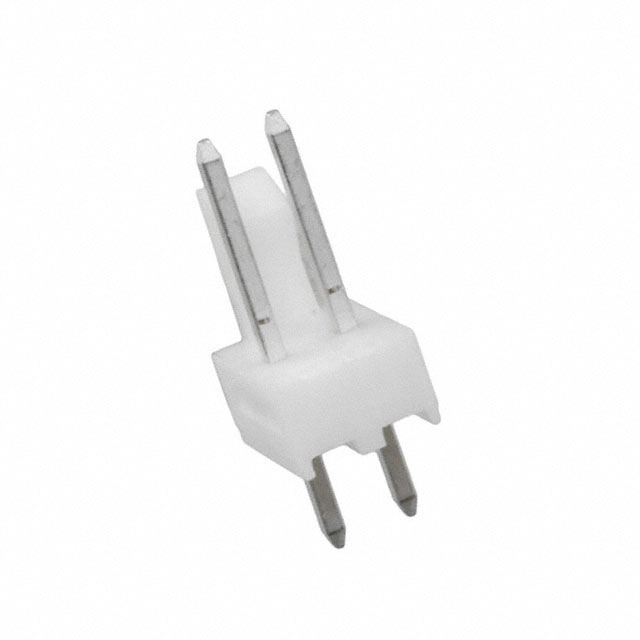

Molex 0022232021	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Header	Through Hole	2	Square	All	Solder	Shrouded - 1 Wall	Nylon Polyamide (PA)	0.1 "	2.54 mm	3.56 mm	0.14 in	0.56 in	14.22 mm	Friction Lock	7.49 mm	0.295 in	UL94 V-0	Board to Board Cable	100 çin	2.54 çm	1	Brass	White	Tin	Male Pin	0.322 in	8.18 mm
Molex 0022232211	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Header	Through Hole	21	Square	All	Solder	Shrouded - 1 Wall	Nylon Polyamide (PA)	0.1 "	2.54 mm	3.56 mm	0.14 in	0.56 in	14.22 mm	Friction Lock	7.49 mm	0.295 in	UL94 V-0	Board to Board Cable	100 çin	2.54 çm	1	Brass	White	Tin	Male Pin	0.322 in	8.18 mm

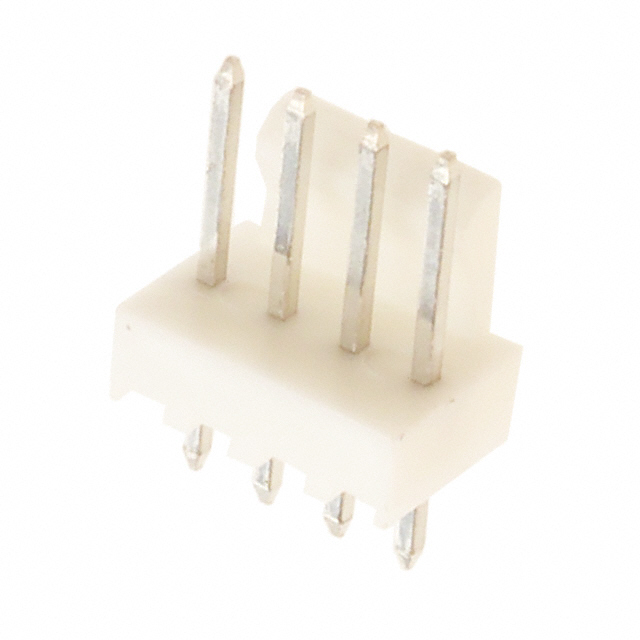

Molex 0022232043	1.52 µm	60 µin	Automotive General Purpose Medical Telecommunications	Header	Through Hole	4	Square	All	Solder	Shrouded - 1 Wall	Nylon Polyamide (PA)	0.1 "	2.54 mm	3.68 mm	0.145 in	0.53 in	13.46 mm	Friction Lock	6.6 mm	0.26 in	UL94 V-0	Board to Board Cable	60 µin	1.52 Ám	1	Brass	White	Tin	Male Pin	0.322 in	8.18 mm
Molex 0022233115	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Header	Through Hole	11	Square		Solder	Shrouded - 1 Wall	Nylon Polyamide (PA)	0.1 "	2.54 mm	3.56 mm	0.14 in	0.56 in	14.22 mm	Friction Lock	7.49 mm	0.295 in	UL94 V-0	Board to Board Cable	100 çin	2.54 çm	1	Brass	White	Tin	Male Pin	0.322 in	8.18 mm			10
