PIC18LF47K40 Series

Microcontroller Family with CAN Flexible Data

Catalog

Microcontroller Family with CAN Flexible Data

Part	Connectivity	Core Size	RAM Size	Peripherals	Core Processor	Supplier Device Package	Program Memory Size	Mounting Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Number of I/O	Package / Case	Oscillator Type	Operating Temperature [Max]	Operating Temperature [Min]	Data Converters [custom]	Data Converters [custom]	Speed	Program Memory Type	Data Converters [custom]	Data Converters	Package / Case	Package / Case
Microchip Technology PIC18F47Q43-I/PT	I2C LINbus SPI UART/USART	8-Bit	8 K	Brown-out Detect/Reset LVD POR PWM WDT	PIC	44-TQFP (10x10)	128 KB	Surface Mount	1.8 V	5.5 V	36	44-TQFP	Internal	85 °C	-40 °C	8 12	1 35	64 MHz	FLASH
Microchip Technology PIC18F47Q83T-I/PT	CANbus I2C LINbus SPI UART/USART	8-Bit	12.5 K	Brown-out Detect/Reset DMA POR PWM WDT	PIC	44-TQFP (10x10)	128 KB	Surface Mount	1.8 V	5.5 V	36	44-TQFP	Internal	85 °C	-40 °C		1 24	64 MHz	FLASH	8 b 12 b
Microchip Technology PIC18F47K40T-I/ML	I2C LINbus SPI UART/USART	8-Bit	3.6 K	Brown-out Detect/Reset LVD POR PWM WDT	PIC	44-QFN (8x8)		Surface Mount	2.3 V	5.5 V	36	44-VQFN Exposed Pad	Internal	85 °C	-40 °C			64 MHz	FLASH		A/D 35x10b D/A 1x5b
Microchip Technology PIC18F47K40-I/ML	I2C LINbus SPI UART/USART	8-Bit	3.6 K	Brown-out Detect/Reset LVD POR PWM WDT	PIC	44-QFN (8x8)		Surface Mount	2.3 V	5.5 V	36	44-VQFN Exposed Pad	Internal	85 °C	-40 °C			64 MHz	FLASH		A/D 35x10b D/A 1x5b
Microchip Technology PIC18F47Q43-E/P	I2C LINbus SPI UART/USART	8-Bit	8 K	Brown-out Detect/Reset LVD POR PWM WDT	PIC	40-PDIP	128 KB	Through Hole	1.8 V	5.5 V	36	40-DIP	Internal	125 °C	-40 °C	8 12	1 35	64 MHz	FLASH			15.24 mm	0.6 in

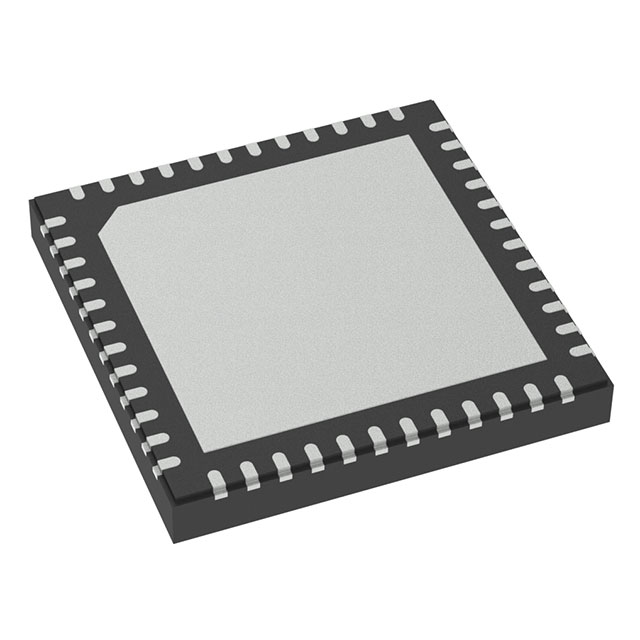

Microchip Technology PIC18F47Q83T-I/NHX	CANbus I2C LINbus SPI UART/USART	8-Bit	8 K	Brown-out Detect/Reset DMA LVD POR PWM WDT	PIC	40-VQFN (5x5)	128 KB	Surface Mount Wettable Flank	1.8 V	5.5 V	36	40-VFQFN Exposed Pad	External Internal	85 °C	-40 °C			64 MHz	FLASH		A/D 24x12b SAR D/A 1x8b
Microchip Technology PIC18F47J13-I/PT	I2C LINbus SPI UART/USART	8-Bit	3.8 K		PIC	44-TQFP (10x10)		Surface Mount	2.15 V	3.6 V	34	44-TQFP	Internal	85 °C	-40 °C			48 MHz	FLASH		13x10b/12b
Microchip Technology PIC18F47Q84-E/P	CANbus I2C LINbus SPI UART/USART	8-Bit	8 K	Brown-out Detect/Reset DMA POR PWM WDT	PIC	40-PDIP		Through Hole	1.8 V	5.5 V	36	40-DIP	Internal	125 °C	-40 °C		1 24	64 MHz	FLASH	8 b 12 b		15.24 mm	0.6 in
Microchip Technology PIC18F47K40T-I/MV	I2C LINbus SPI UART/USART	8-Bit	3.6 K	Brown-out Detect/Reset LVD POR PWM WDT	PIC	40-UQFN (5x5)		Surface Mount	2.3 V	5.5 V	36	40-UFQFN Exposed Pad	Internal	85 °C	-40 °C			64 MHz	FLASH		A/D 35x10b D/A 1x5b
Microchip Technology PIC18F47K42-E/ML	I2C LINbus SPI UART/USART	8-Bit	8 K		PIC	44-QFN (8x8)		Surface Mount	2.3 V	5.5 V	36	44-VQFN Exposed Pad	Internal	125 °C	-40 °C			64 MHz	FLASH		A/D 35x12b D/A 1x5b

Catalog

Microcontroller Family with CAN Flexible Data

Key Features

- PIC18 Core with 83 Instructions, 31 Stack Levels

- Internal 64MHz oscillator

- Operating Voltage Range:- ‘F’ Version (1.8V – 5.5V)

- Temperature Range:- Industrial Version (-40C to 85C)- Extended Version (-40C to 125C)

- 128 KB Flash Program Memory with self read/write capability

- 3728 Bytes Data SRAM Memory

- 1024 Bytes of EEPROM

- [10-bit ADC with computation, 35 channels](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/integrated-analog/analog-to-digital-converter-with-enhanced-features)

- [8 x Configurable Logic Cell (CLC)](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/system-flexibility/custom-logic)

- [1 x 5-bit DAC](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/integrated-analog/digital-to-analog-converter)

- [2 x Comparators](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/integrated-analog/comparator)

- [Fixed Voltage Reference (FVR) module - 1.024V, 2.048V and 4.096V output levels](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/integrated-analog/voltage-reference)

- Hardware Capacitive Voltage Divider (CVD) for mTouch buttons/sliders

- [1 x Zero-Cross Detect](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/integrated-analog/zero-cross-detect)

- 2 x I2C/SPI

- 2 x EUSART with LIN support

- [CRC with Memory Scan](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/safety-and-monitoring/cyclic-redundancy-check)

- [Windowed Watchdog Timer (WWDT)](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/safety-and-monitoring/windowed-watchdog-timer)

- [1 x Hardware Limit Timer (HLT)](https://developerhelp.microchip.com/xwiki/bin/view/products/mcu-mpu/8bit-pic/peripherals/timers/hardware-limit/)

- [1 x Complementary Waveform Generator](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/waveform-control/complementary-waveform-generator)

- [2 x standalone 10-bit PWM modules](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/waveform-control/pulse-width-modulation)

- 2 x Capture/Compare/PWM modules

- [Three 8-bit Timers/Counters](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/timer-peripheral)

- Four 16-bit Timers/Counters

- 1 x Hardware Limit Timer (HLT)

- Extended Watchdog Timer (WDT)

- Doze, Idle, and Sleep Power Saving Operating Modes

- Low Current Power-on Reset (POR)

- Brown-out Reset (BOR)

- Low-Power BOR (LPBOR)

- [Peripheral Pin Select](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/system-flexibility/input-and-output-features)

- In-Circuit Debug Integrated On-Chip

- In-Circuit Serial Programing (ICSP) via Two Pins

Description

The PIC18-Q84 family expands the 8-bit MCUs by combining an extensive array of Core Independent Peripherals (CIPs) with Controller Area Network Flexible Data Rate (CAN FD). These cost optimized MCUs contain time-saving CIPs in up to 48-pins with up to 128 KB of flash memory. The family introduces new features and peripherals like the Universal Timer (UTMR) with customization capability; context switching added to the 12-bit ADC with Computation for automating analog signal analysis for real-time system response. Additionally, it includes industry standard options, JTAG Boundary Scan, 32-bit Cyclic Redundancy Check (CRC) with memory scan on boot for added system safety. System designers can benefit greatly by saving time, as it is significantly easier to configure a hardware-based peripheral, as opposed to writing and validating an entire software routine, to accomplish a task. **Functional Safety**: This product is suitable for [safety-critical applications](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/functional-safety) targeting automotive (IEC 60730), industrial (ISO26262) and automotive products (IEC 61508) products. Various important collateral and tools are available to aid developers of safety applications – refer to the Product Features below for a list of device specific safety collaterals. TÜV SÜD certified MPLABX development tools are also available for this product. Contact your local Microchip sales office or your distributor for more information.
