MSJPF20 Series

Catalog

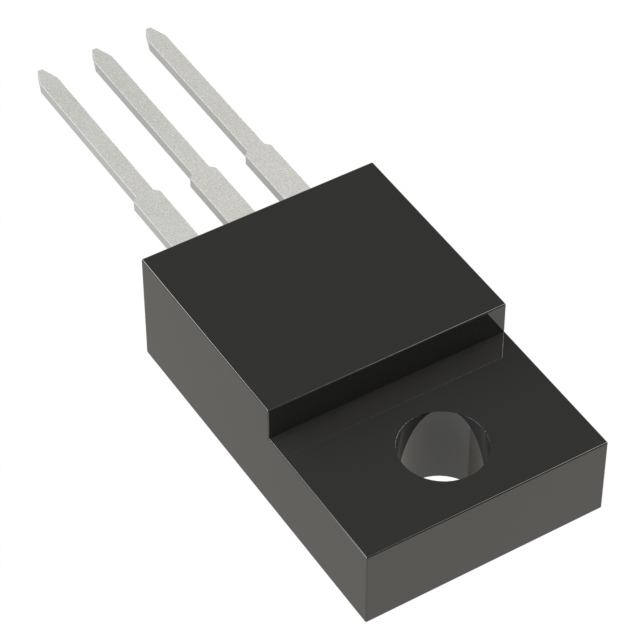

MOSFET N-CH 650V 11A TO220F

Part	Rds On (Max) @ Id, Vgs	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds [Max]	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Technology	FET Type	Drive Voltage (Max Rds On, Min Rds On)	Vgs(th) (Max) @ Id	Vgs (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Power Dissipation (Max) [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Gate Charge (Qg) (Max) @ Vgs
Micro Commercial Components MSJPF20N65-BP	380 mOhm	TO-220F	901 pF	650 V	20 A	MOSFET (Metal Oxide)	N-Channel	10 V	4 V	30 V	-55 °C	150 °C	Through Hole	TO-220-3 Full Pack	31.3 W	21 nC
Micro Commercial Components MSJPF20N65A-BP	180 mOhm	TO-220F	1807 pF	650 V	20 A	MOSFET (Metal Oxide)	N-Channel	10 V	4 V	30 V	-55 °C	150 °C	Through Hole	TO-220-3 Full Pack	34 W		56 nC
