MIC49150 Series

Dual Supply, Low Voltage 1.5A LDO

Catalog

Dual Supply, Low Voltage 1.5A LDO

Part	Output Configuration	Mounting Type	Supplier Device Package	Package / Case	Package / Case [custom]	Package / Case	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Protection Features	Number of Regulators	Voltage - Output (Min/Fixed)	Current - Output	Control Features	Voltage Dropout (Max) [Max]	Output Type	Voltage - Output (Max)	Output Type
Microchip Technology MIC49150-1.8BMM	Positive	Surface Mount	8-MSOP	8-MSOP 8-TSSOP	0.118 in	3 mm	6.5 V	125 °C	-40 °C	Over Current Over Temperature	1	1.8 V	1.5 A	Enable	0.5 V	1.81 mOhm
Microchip Technology MIC49150-1.5WR-TR	Positive	Surface Mount	5-SPAK	SPAK-5 (5 Leads + Tab)			6.5 V	125 °C	-40 °C	Over Current Over Temperature	1	1.5 V	1.5 A	Enable	0.5 V	1.81 mOhm
Microchip Technology MIC49150-1.2YMM-TR	Positive	Surface Mount	8-MSOP	8-MSOP 8-TSSOP	0.118 in	3 mm	6.5 V	125 °C	-40 °C	Over Current Over Temperature	1	1.2 V	1.5 A	Enable	0.5 V	1.81 mOhm
Microchip Technology MIC49150BMM	Positive	Surface Mount	8-MSOP	8-MSOP 8-TSSOP	0.118 in	3 mm	6.5 V	125 °C	-40 °C	Over Current Over Temperature	1	0.9 V	1.5 A	Enable	0.5 V		5 V	Adjustable
Microchip Technology MIC49150-0.9WR-TR	Positive	Surface Mount	5-SPAK	SPAK-5 (5 Leads + Tab)			6.5 V	125 °C	-40 °C	Over Current Over Temperature	1	0.9 V	1.5 A	Enable	0.5 V	1.81 mOhm
Microchip Technology MIC49150-1.8BR TR	Positive	Surface Mount	5-SPAK	SPAK-5 (5 Leads + Tab)			6.5 V	125 °C	-40 °C	Over Current Over Temperature	1	1.8 V	1.5 A	Enable	0.5 V	1.81 mOhm
Microchip Technology MIC49150-0.9BR TR	Positive	Surface Mount	5-SPAK	SPAK-5 (5 Leads + Tab)			6.5 V	125 °C	-40 °C	Over Current Over Temperature	1	0.9 V	1.5 A	Enable	0.5 V	1.81 mOhm

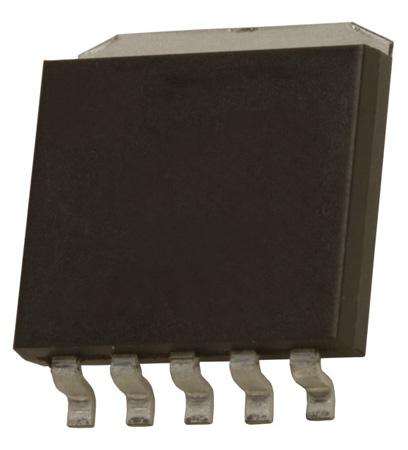

Microchip Technology MIC49150BR	Positive	Surface Mount	S-PAK-5	SPAK-5 (5 Leads + Tab)			6.5 V	125 °C	-40 °C	Over Current Over Temperature	1	0.9 V	1.5 A	Enable	0.5 V		5 V	Adjustable
Microchip Technology MIC49150-1.2WR	Positive	Surface Mount	5-SPAK	SPAK-5 (5 Leads + Tab)			6.5 V	125 °C	-40 °C	Over Current Over Temperature	1	1.2 V	1.5 A	Enable	0.5 V	1.81 mOhm
Microchip Technology MIC49150WR	Positive	Surface Mount	5-SPAK	SPAK-5 (5 Leads + Tab)			6.5 V	125 °C	-40 °C	Over Current Over Temperature	1	0.9 V	1.5 A	Enable	0.5 V		5 V	Adjustable

Catalog

Dual Supply, Low Voltage 1.5A LDO

Key Features

• * Input voltage range:

• * VIN: 1.4V to 6.5V

• * VBIAS: 3.0V to 6.5V

• * Stable with 1µF ceramic capacitor

• * ±1% initial tolerance

• * Maximum dropout voltage (VIN-VOUT) of 500mV over temperature

• * Adjustable output voltage down to 0.9V

• * Ultra fast transient response (up to 10MHz bandwidth)

• * Excellent line and load regulation specifications

• * Logic-controlled shutdown option

• * Thermal shutdown and current limit protection

• * Power MSOP-8 and S-Pak packages

• * Junction temperature range: -40°C to +125°C

Description

The MIC49150 is a high-bandwidth, low-dropout, 1.5A voltage regulator ideal for powering core voltages of low power microprocessors. The MIC49150 implements a dual supply configuration allowing for very low output impedance and very fast transient response. The MIC49150 requires a bias input supply and a main input supply, allowing for ultra-low input voltages on the main supply rail. The input supply operates from 1.4V to 6.5V and the bias supply requires between 3V and 6.5V or proper operation. The MIC49150 offers fi xed output voltages from 0.9V to 1.8V and adjustable output voltages down to 0.9V. The MIC49150 requires a minimum of output capacitance for stability, working optimally with small ceramic capacitors. The MIC49150 is available in an 8-pin power MSOP package and a 5-pin S-Pak. Its operating temperature range is -40°C to +125°C.
