HIF3FC Series

Catalog

CONN HEADER VERT 30POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Insulation Color	Contact Shape	Insulation Height	Insulation Height	Contact Length - Post [custom]	Contact Length - Post	Termination	Contact Material	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Contact Finish - Mating	Shrouding	Contact Length - Mating	Contact Length - Mating	Features	Number of Positions Loaded	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Insulation Material	Contact Type	Style	Number of Positions	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Number of Positions [custom]	Contact Length - Post

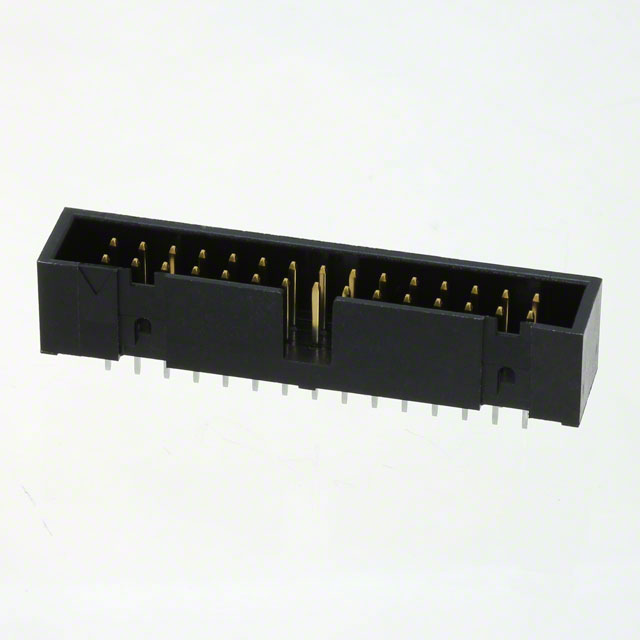

Hirose Electric Co Ltd HIF3FC-30PA-2.54DSA(71)	78.7 µin	2 µm	Black	Square	8.89 mm	0.35 in	0.11 in	2.79 mm	Solder	Brass	0.1 "	2.54 mm	2	Gold	Shrouded - 4 Wall	6 mm	0.236 in	Keying Slot	All	UL94 V-0	8 µin	0.203 µm	200 V	Through Hole	-55 C	85 °C	Push-Pull	Header	0.1 in	2.54 mm	Tin	Polybutylene Terephthalate (PBT)	Male Pin	Board to Board Cable	30
Hirose Electric Co Ltd HIF3FC-20PA-2.54DSA(91)			Black	Square		9.2 mm			Solder	Brass	0.1 "	2.54 mm	2	Gold	Shrouded - 4 Wall	6 mm	0.236 in	Keying Slot	All	UL94 V-0			200 V	Through Hole	-55 C	85 °C	Push-Pull	Header	0.1 in	2.54 mm	Tin	Polybutylene Terephthalate (PBT)	Male Pin	Board to Board Cable	20	0.362 in	0.11 in	2.8 mm

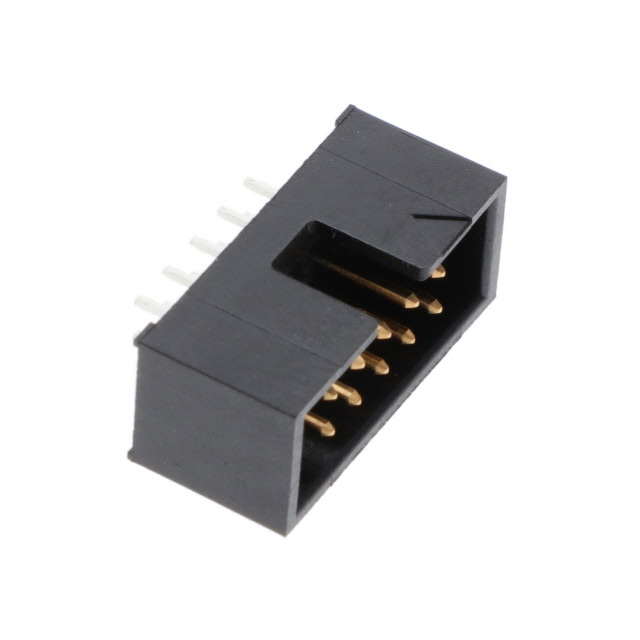

Hirose Electric Co Ltd HIF3FC-10PA-2.54DSA(75)			Black	Square	8.89 mm	0.35 in	0.11 in	2.79 mm	Solder	Brass	0.1 "	2.54 mm	2	Gold	Shrouded - 4 Wall	6 mm	0.236 in		All	UL94 V-0	30 Áin	0.76 Ám	200 V	Through Hole	-55 C	85 °C	Push-Pull	Header	0.1 in	2.54 mm		Polybutylene Terephthalate (PBT)	Male Pin	Board to Board Cable	10
Hirose Electric Co Ltd HIF3FC-20PA-2.54DSA(72)			Black	Square	8.89 mm	0.35 in	0.11 in	2.79 mm	Solder	Brass	0.1 "	2.54 mm	2	Gold	Shrouded - 4 Wall	6 mm	0.236 in	Keying Slot	All	UL94 V-0			200 V	Through Hole	-55 C	85 °C	Push-Pull	Header	0.1 in	2.54 mm		Polybutylene Terephthalate (PBT)	Male Pin	Board to Board Cable	20				Flash

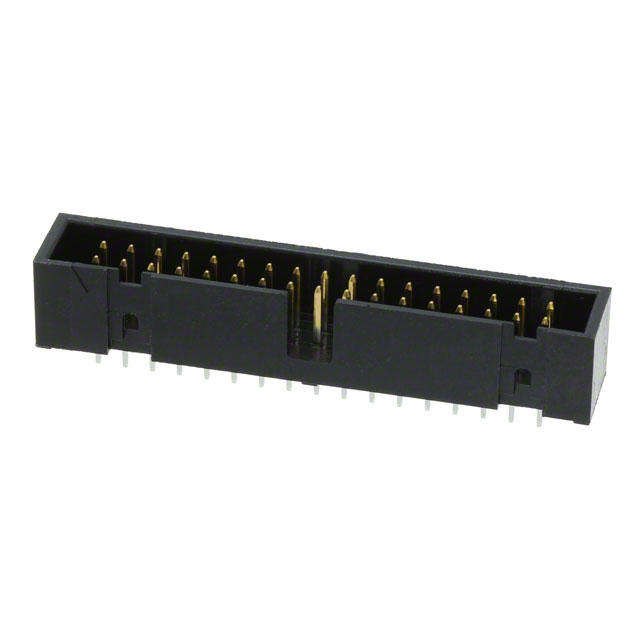

Hirose Electric Co Ltd HIF3FC-34PA-2.54DSA(71)	78.7 µin	2 µm	Black	Square	8.89 mm	0.35 in	0.11 in	2.79 mm	Solder	Brass	0.1 "	2.54 mm	2	Gold	Shrouded - 4 Wall	6 mm	0.236 in	Keying Slot	All	UL94 V-0	8 µin	0.203 µm	200 V	Through Hole	-55 C	85 °C	Push-Pull	Header	0.1 in	2.54 mm	Tin	Polybutylene Terephthalate (PBT)	Male Pin	Board to Board Cable						34
Hirose Electric Co Ltd HIF3FC-10PA-2.54DS(75)

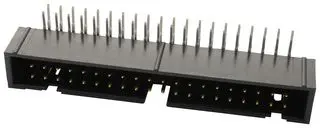

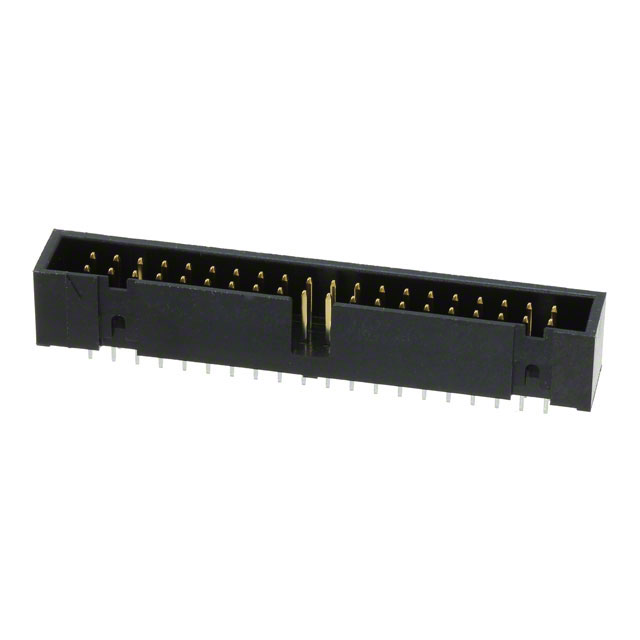

Hirose Electric Co Ltd HIF3FC-40PA-2.54DSA(71)	78.7 µin	2 µm	Black	Square	8.89 mm	0.35 in	0.11 in	2.79 mm	Solder	Brass	0.1 "	2.54 mm	2	Gold	Shrouded - 4 Wall	6 mm	0.236 in	Keying Slot	All	UL94 V-0	8 µin	0.203 µm	200 V	Through Hole	-55 C	85 °C	Push-Pull	Header	0.1 in	2.54 mm	Tin	Polybutylene Terephthalate (PBT)	Male Pin	Board to Board Cable	40
Hirose Electric Co Ltd HIF3FC-26PA-2.54DSA(72)			Black	Square	8.89 mm	0.35 in	0.11 in	2.79 mm	Solder	Brass	0.1 "	2.54 mm	2	Gold	Shrouded - 4 Wall	6 mm	0.236 in	Keying Slot	All	UL94 V-0			200 V	Through Hole	-55 C	85 °C	Push-Pull	Header	0.1 in	2.54 mm		Polybutylene Terephthalate (PBT)	Male Pin	Board to Board Cable	26				Flash
Hirose Electric Co Ltd HIF3FC-10PA-2.54DSA(82)			Black	Square	8.89 mm	0.35 in	0.11 in	2.79 mm	Solder	Brass	0.1 "	2.54 mm	2	Gold	Shrouded - 4 Wall	6 mm	0.236 in		All	UL94 V-0	8 µin	0.203 µm	200 V	Through Hole	-55 C	85 °C	Push-Pull	Header	0.1 in	2.54 mm		Polybutylene Terephthalate (PBT)	Male Pin	Board to Board Cable	10

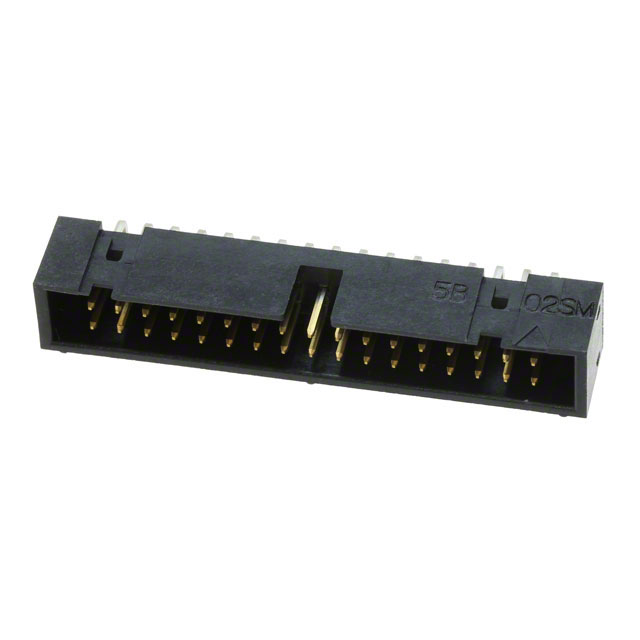

Hirose Electric Co Ltd HIF3FC-34PA-2.54DS(71)	78.7 µin	2 µm	Black	Square		8.51 mm		3 mm	Solder	Brass	0.1 "	2.54 mm	2	Gold	Shrouded - 4 Wall	6 mm	0.236 in	Keying Slot	All	UL94 V-0	8 µin	0.203 µm	200 V	Right Angle Through Hole	-55 C	85 °C	Push-Pull	Header	0.1 in	2.54 mm	Tin	Polybutylene Terephthalate (PBT)	Male Pin	Board to Board Cable		0.335 "				34	0.118 in
