MER3D Series

Catalog

RECTIFIERS 200V SUPER FAST RECOVERY RECTIFIERS 3A

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Speed	Technology	Capacitance @ Vr, F	Supplier Device Package	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Package / Case	Qualification	Grade
Panjit International Inc. MER3DBF_R1_00701	175 ░C	-55 °C	1 µA	200 mA 500 ns	Standard	31 pF	SMBF	35 ns	200 V	Surface Mount	950 mV	3 A	DO-221AA SMB Flat Leads
Panjit International Inc. MER3DAH-AU_R1_007A1	175 ░C	-55 °C	1 µA	200 mA 500 ns	Standard	31 pF	SOD-123HE	35 ns	200 V	Surface Mount	950 mV	3 A	SOD-123H	AEC-Q101	Automotive
Panjit International Inc. MER3DBF-AU_R1_007A1	175 ░C	-55 °C	1 µA	200 mA 500 ns	Standard	31 pF	SMBF	35 ns	200 V	Surface Mount	950 mV	3 A	DO-221AA SMB Flat Leads	AEC-Q101	Automotive

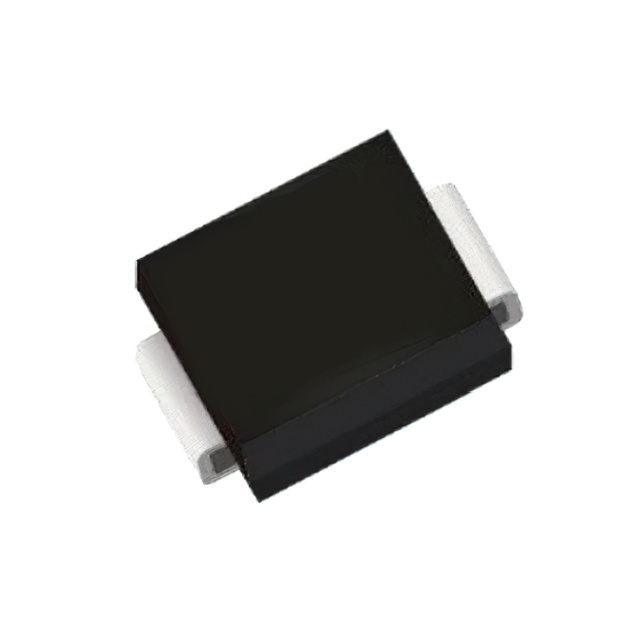

Panjit International Inc. MER3DMB-AU_R2_006A1	175 ░C	-55 °C	1 µA	200 mA 500 ns	Standard	31 pF	DO-214AA (SMB)	35 ns	200 V	Surface Mount	950 mV	3 A	DO-214AA SMB	AEC-Q101	Automotive
Panjit International Inc. MER3DAFC-AU_R1_007A1	175 ░C	-55 °C	1 µA	200 mA 500 ns	Standard	31 pF		35 ns	200 V	Surface Mount	950 mV	3 A	DO-221AC SMA Flat Leads	AEC-Q101	Automotive
Panjit International Inc. MER3DMA-AU_R2_006A1	175 ░C	-55 °C	1 µA	200 mA 500 ns	Standard	31 pF	DO-214AC (SMA)	35 ns	200 V	Surface Mount	950 mV	3 A	DO-214AC SMA	AEC-Q101	Automotive
Panjit International Inc. MER3DMA_R2_00601	175 ░C	-55 °C	1 µA	200 mA 500 ns	Standard	31 pF	DO-214AC (SMA)	35 ns	200 V	Surface Mount	950 mV	3 A	DO-214AC SMA
Panjit International Inc. MER3DAFC_R1_00701	175 ░C	-55 °C	1 µA	200 mA 500 ns	Standard	31 pF		35 ns	200 V	Surface Mount	950 mV	3 A	DO-221AC SMA Flat Leads
