TCM680 Series
Manufacturer: Microchip Technology
Beta
⌘K
IC REG CHARGE PUMP INV DL 8SOIC
| Part | Package Name | Output Configuration | Current - Output | Voltage - Input (Min) | Topology | Function | Voltage - Input (Max) | Package Length | Package Width | Voltage - Output (Min/Fixed) | Number of Outputs | Output Type | Frequency - Switching | Synchronous Rectifier | Mounting Type | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | 8-SOIC | Positive and Negative (Dual Rail) | 10 mA | 2 V | Charge Pump | Ratiometric | 5.5 V | 0.154 in | 3.9 mm | -Vin 2Vin | 2 | Fixed | 21 kHz | No | Surface Mount | 85 °C | -40 °C |

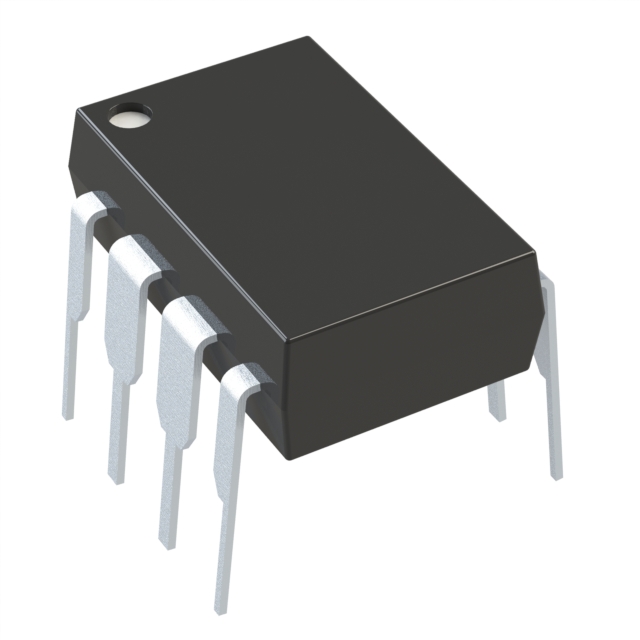

 Microchip Technology | 8-DIP 8-PDIP | Positive and Negative (Dual Rail) | 10 mA | 2 V | Charge Pump | Ratiometric | 5.5 V | 0.3 in | 7.62 mm | -Vin 2Vin | 2 | Fixed | 21 kHz | No | Through Hole | 85 °C | -40 °C |
