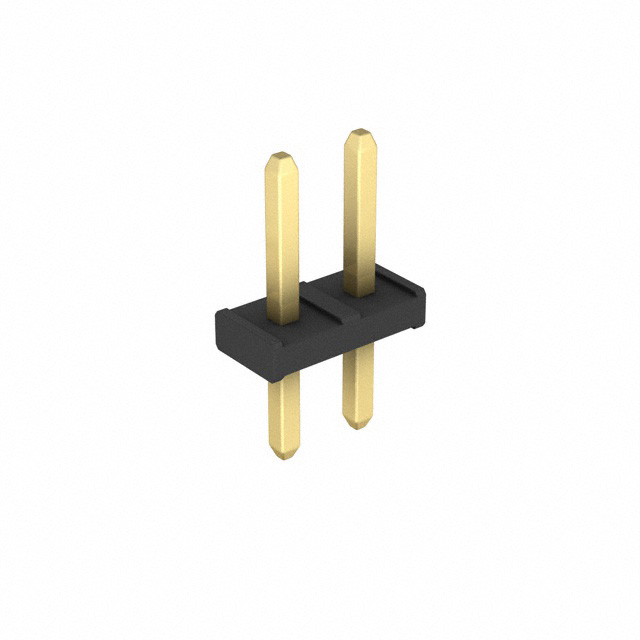

A3C-2P-2 Series

Catalog

CONN HEADER

Part	Insulation Color	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Voltage Rating	Shrouding	Pitch - Mating	Pitch - Mating	Termination	Style	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Shape	Number of Positions	Contact Finish - Mating	Material Flammability Rating	Connector Type	Contact Material	Insulation Material	Overall Contact Length	Overall Contact Length	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Type	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Mated Stacking Heights	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating

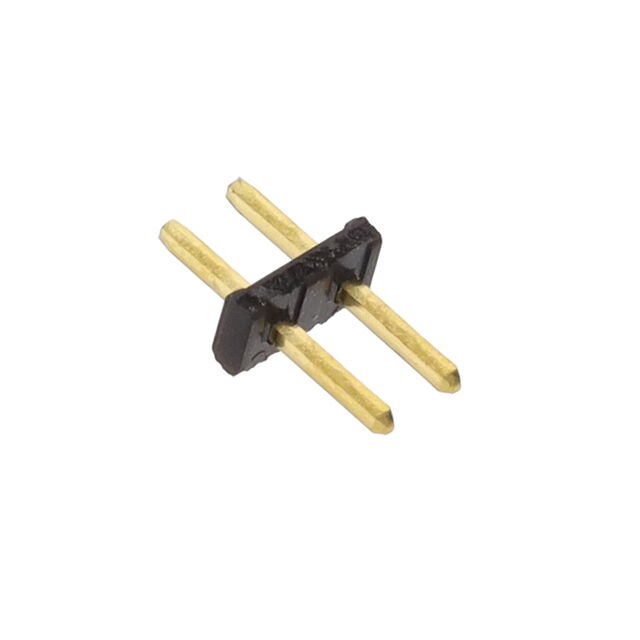

Hirose Electric Co Ltd A3C-2P-2DSA(30)	Black	0.9 mm	0.035 in	2	200 VAC	Unshrouded	0.079 "	2 mm	Solder	Board to Board Cable	Push-Pull	2 mm	0.079 in	-55 C	85 °C	All	Square	2	Gold	UL94 V-0	Header	Brass	Nylon Polyamide (PA)	7 mm	0.276 in	Through Hole	2.6 mm	0.102 in	Male Pin	3.5 mm	0.138 in
Hirose Electric Co Ltd A3C-2P-2DSA	Black	0.9 mm	0.035 in	2	200 V	Unshrouded			Solder	Board to Board Cable	Push-Pull	2 mm	0.079 in	-55 C	85 °C	All	Square	2	Gold	UL94 V-0	Header	Brass	Nylon Polyamide (PA)	7 mm	0.276 in	Through Hole	2.6 mm	0.102 in	Male Pin	3.5 mm	0.138 in	Flash	5.1 mm 7.9 mm	Gold	8 µin	0.203 µm
