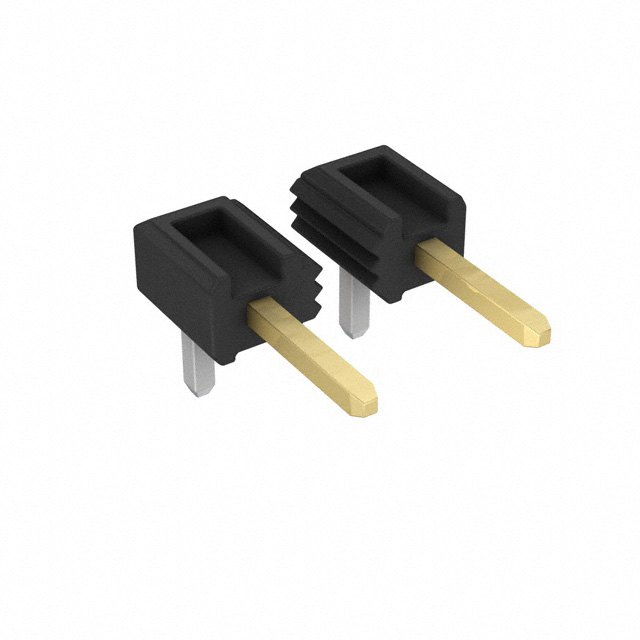

A4B-13PA Series

Catalog

CONN HEADER R/A 13POS 2MM

Part	Insulation Color	Insulation Material	Voltage Rating	Shrouding	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Type	Contact Finish - Mating	Contact Material	Style	Contact Shape	Current Rating (Amps)	Number of Rows	Termination	Fastening Type	Number of Positions	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Mounting Type	Contact Finish - Post	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length
Hirose Electric Co Ltd A4B-13PA-2DS(71)	Black	Nylon Polyamide (PA)	200 V	Unshrouded	All	0.079 "	2 mm	2.6 mm	0.102 in	Male Pin	Gold	Brass	Board to Board Cable	Square	2 A	1	Kinked Pin Solder	Push-Pull	13	2 mm	0.079 in	Flash	Right Angle Through Hole	Tin	78.7 µin	2 µm	Header	-55 C	85 °C	UL94 V-0	3.5 mm	0.138 in
Hirose Electric Co Ltd A4B-13PA-2DSA(71)	Black	Nylon Polyamide (PA)	200 V	Unshrouded	All	0.079 "	2 mm	2.6 mm	0.102 in	Male Pin	Gold	Brass	Board to Board Cable	Square	2 A	1	Solder	Push-Pull	13			Flash	Through Hole	Tin	78.7 µin	2 µm	Header	-55 C	85 °C	UL94 V-0	3.5 mm	0.138 in	1.8 mm	0.071 in	7.9 mm	0.311 in
Hirose Electric Co Ltd A4B-13PA-2DS(51)	Black	Nylon Polyamide (PA)	200 VAC	Unshrouded	All	0.079 "	2 mm	2.6 mm	0.102 in	Male Pin	Gold	Brass	Board to Board Cable	Square		1	Kinked Pin Solder	Push-Pull	13	2 mm	0.079 in		Right Angle Through Hole				Header	-55 C	85 °C	UL94 V-0	3.5 mm	0.138 in
Hirose Electric Co Ltd A4B-13PA-2DSA(51)	Black	Nylon Polyamide (PA)	200 VAC	Unshrouded	All	0.079 "	2 mm	2.6 mm	0.102 in	Male Pin	Gold	Brass	Board to Board Cable	Square		1	Solder	Push-Pull	13				Through Hole				Header	-55 C	85 °C	UL94 V-0	3.5 mm	0.138 in	1.8 mm	0.071 in	7.9 mm	0.311 in
