892-18 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER VERT 76POS 2.54MM

...

Part	Material Flammability Rating	Contact Material	Contact Length - Mating	Contact Length - Mating	Mounting Type	Contact Type	Number of Positions Loaded	Fastening Type	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Termination	Number of Positions	Insulation Height	Insulation Height	Contact Shape	Connector Type	Voltage Rating	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Shrouding	Number of Rows [custom]	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]	Overall Contact Length

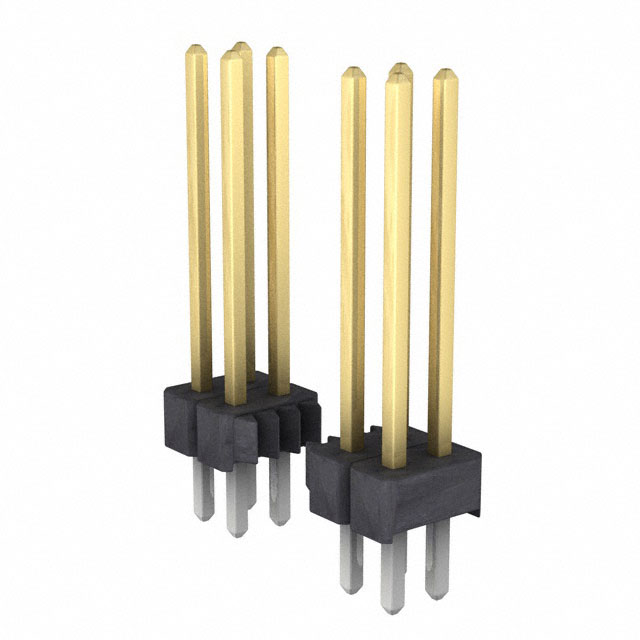

Preci-Dip 892-18-076-10-004101	UL94 V-0	Brass	0.587 in	14.91 mm	Through Hole	Male Pin	All	Push-Pull	0.118 in	3 mm	20.44 mm	0.805 in	Solder	76	0.1 in	2.54 mm	Square	Header	150 VDC	Black	0.1 in	2.54 mm	-55 C	125 °C	Gold	0.1 "	2.54 mm	Tin	3 A	0.25 µm	10 µin	Glass Filled Nylon Polyamide (PA)	Unshrouded	2

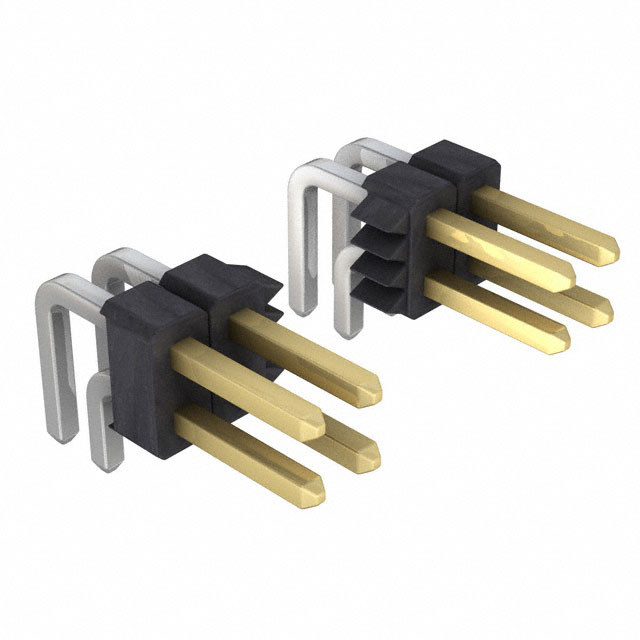

Preci-Dip 892-18-012-20-001101	UL94 V-0	Brass	0.236 in	6 mm	Right Angle Through Hole	Male Pin	All	Push-Pull	0.118 in	3 mm			Solder	12			Square	Header	150 VDC	Black	0.1 in	2.54 mm	-55 C	125 °C	Gold	0.1 "	2.54 mm	Tin	3 A	0.25 µm	10 µin	Glass Filled Nylon Polyamide (PA)	Unshrouded	2	0.2 in	5.08 mm

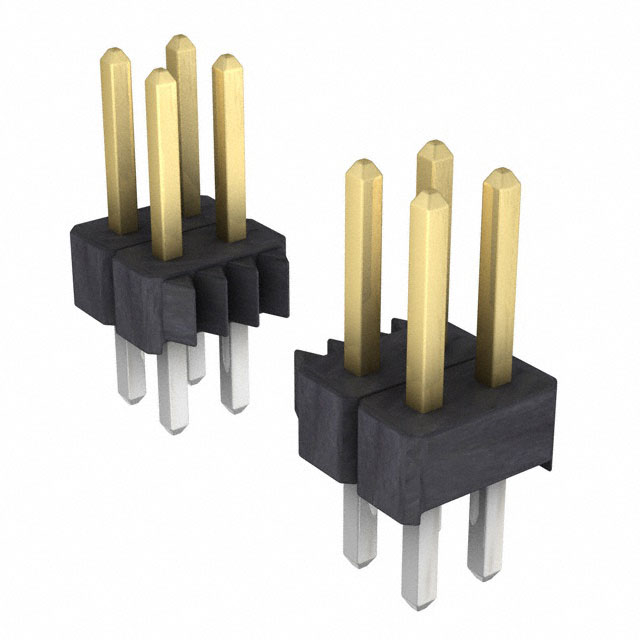

Preci-Dip 892-18-078-10-001101	UL94 V-0	Brass	0.236 in	6 mm	Through Hole	Male Pin	All	Push-Pull			11.64 mm	0.458 "	Solder	78	0.1 in	2.54 mm	Square	Header	150 VDC	Black	0.1 in	2.54 mm	-55 C	125 °C	Gold	0.1 "	2.54 mm	Tin	3 A	0.25 µm	10 µin	Glass Filled Nylon Polyamide (PA)	Unshrouded	2			0.122 in	3.1 mm

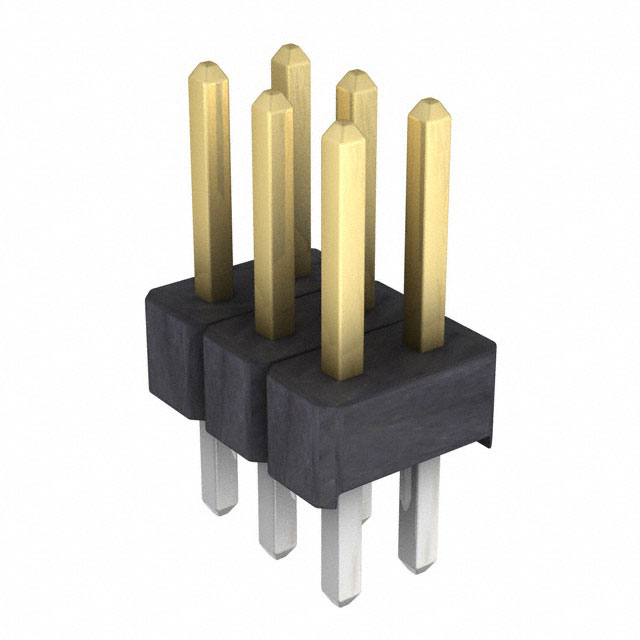

Preci-Dip 892-18-006-10-001101	UL94 V-0	Brass	0.236 in	6 mm	Through Hole	Male Pin	All	Push-Pull			11.64 mm	0.458 "	Solder	6	0.1 in	2.54 mm	Square	Header	150 VDC	Black	0.1 in	2.54 mm	-55 C	125 °C	Gold	0.1 "	2.54 mm	Tin	3 A	0.25 µm	10 µin	Glass Filled Nylon Polyamide (PA)	Unshrouded	2			0.122 in	3.1 mm

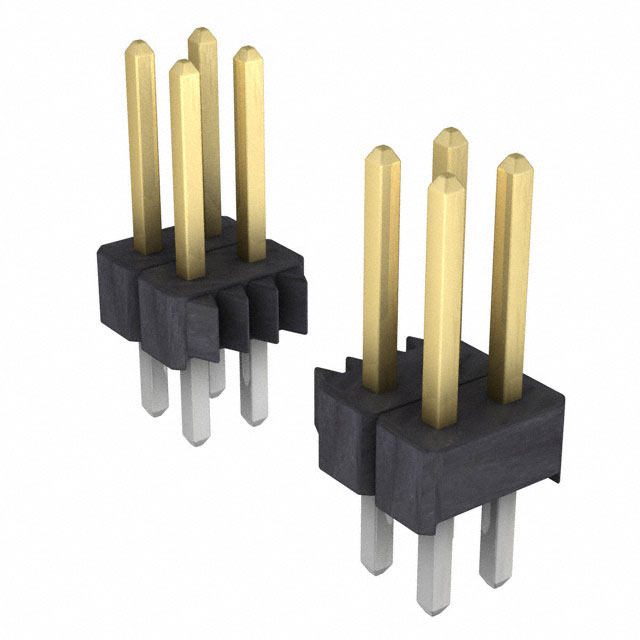

Preci-Dip 892-18-038-10-002101	UL94 V-0	Brass		7 mm	Through Hole	Male Pin	All	Push-Pull	0.118 in	3 mm	0.494 in		Solder	38	0.1 in	2.54 mm	Square	Header	150 VDC	Black	0.1 in	2.54 mm	-55 C	125 °C	Gold	0.1 "	2.54 mm	Tin	3 A	0.25 µm	10 µin	Glass Filled Nylon Polyamide (PA)	Unshrouded	2					0.276 in	12.54 mm

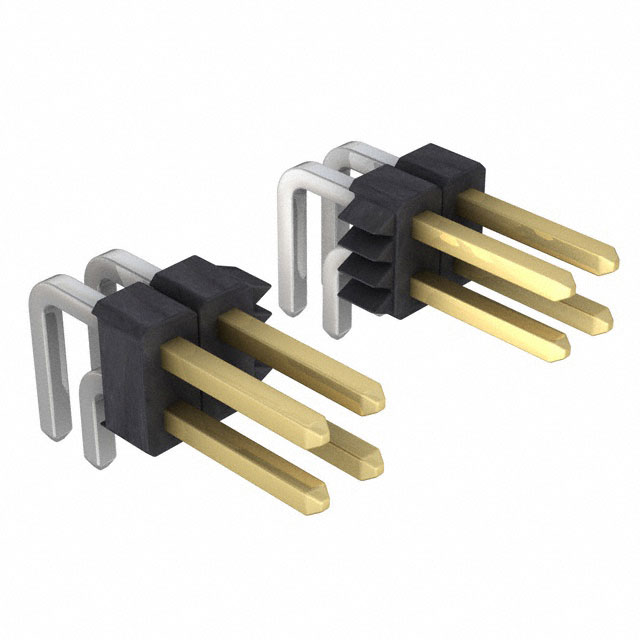

Preci-Dip 892-18-032-20-002101	UL94 V-0	Brass		7 mm	Right Angle Through Hole	Male Pin	All	Push-Pull	0.118 in	3 mm			Solder				Square	Header	150 VDC	Black	0.1 in	2.54 mm	-55 C	125 °C	Gold	0.1 "	2.54 mm	Tin	3 A	0.25 µm	10 µin	Glass Filled Nylon Polyamide (PA)	Unshrouded	2	0.2 in	5.08 mm			0.276 in
Preci-Dip 892-18-018-10-002101	UL94 V-0	Brass		7 mm	Through Hole	Male Pin	All	Push-Pull	0.118 in	3 mm	0.494 in		Solder	18	0.1 in	2.54 mm	Square	Header	150 VDC	Black	0.1 in	2.54 mm	-55 C	125 °C	Gold	0.1 "	2.54 mm	Tin	3 A	0.25 µm	10 µin	Glass Filled Nylon Polyamide (PA)	Unshrouded	2					0.276 in	12.54 mm
Preci-Dip 892-18-014-10-001101	UL94 V-0	Brass	0.236 in	6 mm	Through Hole	Male Pin	All	Push-Pull			11.64 mm	0.458 "	Solder	14	0.1 in	2.54 mm	Square	Header	150 VDC	Black	0.1 in	2.54 mm	-55 C	125 °C	Gold	0.1 "	2.54 mm	Tin	3 A	0.25 µm	10 µin	Glass Filled Nylon Polyamide (PA)	Unshrouded	2			0.122 in	3.1 mm
Preci-Dip 892-18-064-10-002101	UL94 V-0	Brass		7 mm	Through Hole	Male Pin	All	Push-Pull	0.118 in	3 mm	0.494 in		Solder	64	0.1 in	2.54 mm	Square	Header	150 VDC	Black	0.1 in	2.54 mm	-55 C	125 °C	Gold	0.1 "	2.54 mm	Tin	3 A	0.25 µm	10 µin	Glass Filled Nylon Polyamide (PA)	Unshrouded	2					0.276 in	12.54 mm
Preci-Dip 892-18-030-10-001101	UL94 V-0	Brass	0.236 in	6 mm	Through Hole	Male Pin	All	Push-Pull			11.64 mm	0.458 "	Solder	30	0.1 in	2.54 mm	Square	Header	150 VDC	Black	0.1 in	2.54 mm	-55 C	125 °C	Gold	0.1 "	2.54 mm	Tin	3 A	0.25 µm	10 µin	Glass Filled Nylon Polyamide (PA)	Unshrouded	2			0.122 in	3.1 mm
