ST Series

DIN Rail Terminal Blocks ST 2.5-TWIN BK

Manufacturer: Phoenix Contact

Catalog

DIN Rail Terminal Blocks ST 2.5-TWIN BK

Catalog

DIN Rail Terminal Blocks ST 2.5-TWIN BK

Part	Stripping Length	Material Flammability Rating	Material - Insulation	Voltage - IEC	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Termination Style	Type	Terminal - Width [y]	Current - IEC	Number of Levels	Voltage - UL	Number of Positions	Current - UL	Color	Number of Levels	Shielding	Note	Features	Contact Size	Ingress Protection	Contact Shape	Insert Material	Orientation	Contact Type	Mounting Type	Fastening Type	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Shell Material	Housing Color	Length	Length	Height (Max) [Max] [z]	Height (Max) [z]

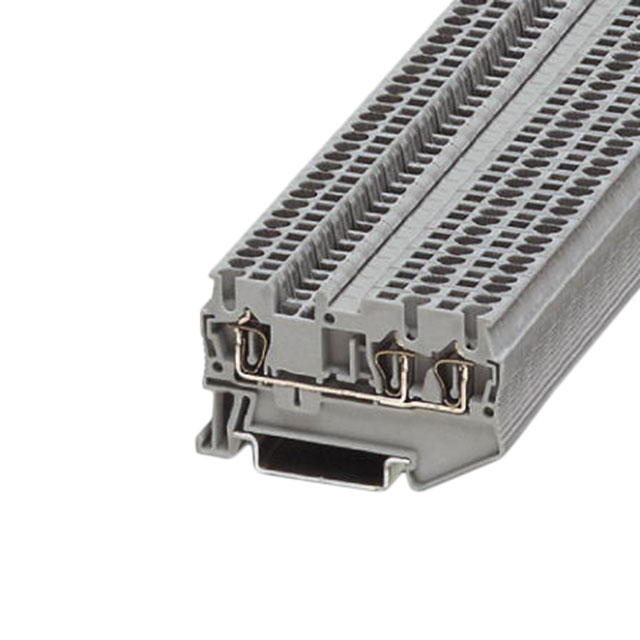

Phoenix Contact 3037258	10 mm	UL94 V-0	Nylon Polyamide (PA)	500 V	26 AWG	14 AWG	0.08 mm²	1.5 mm²	Push In Spring	Feed Through	4.2 mm	17.5 A	1	300 V
Phoenix Contact 3209060				250 V	28 AWG	12 AWG	0.08 mm²	4 mm²	Push In Spring	Feed Through Isolated (3)	5.2 mm	18 A		300 V	5	18 A	Gray	2; 1 Grounded

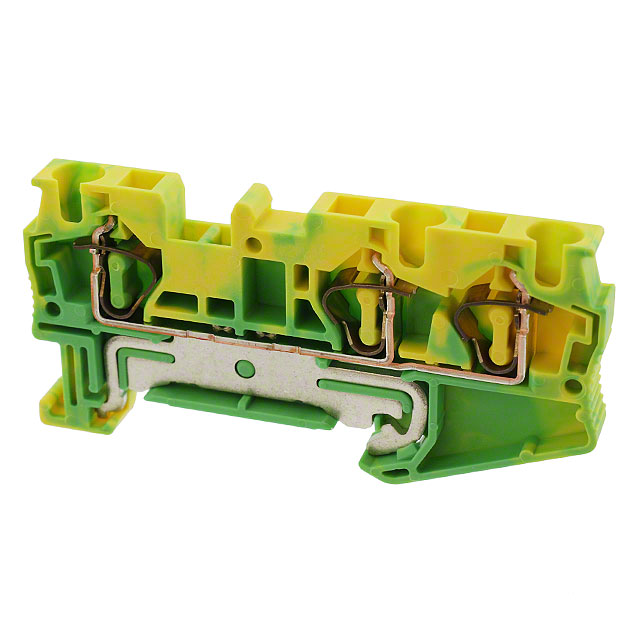

Phoenix Contact 3031416	10 mm	UL94 V-0	Nylon Polyamide (PA)		28 AWG	10 AWG	0.08 mm²	6 mm²	Push In Spring	Ground Earth	6.2 mm		1				Green Yellow
Phoenix Contact 3209015				250 V	28 AWG	12 AWG	0.08 mm²	4 mm²	Push In Spring	Feed Through Isolated (2)	5.2 mm	18 A	2	300 V	4	18 A	Gray
Phoenix Contact 3031500					24 AWG	8 AWG	0.2 mm²	10 mm²	Push In Spring	Ground Earth	8.2 mm		1		2		Green Yellow
Phoenix Contact 1607719										For Female Sockets					6				Shielded	Contacts Not Included	Backshell Coupling Nut	1 mm	IP67 - Dust Tight Waterproof	Circular	Nylon 6/6 Polyamide (PA66)	N (Normal)	Crimp	Free Hanging (In-Line)	Threaded	M17-6	125 °C	-40 C	Plug Housing	Gadolinium-Zinc	Silver

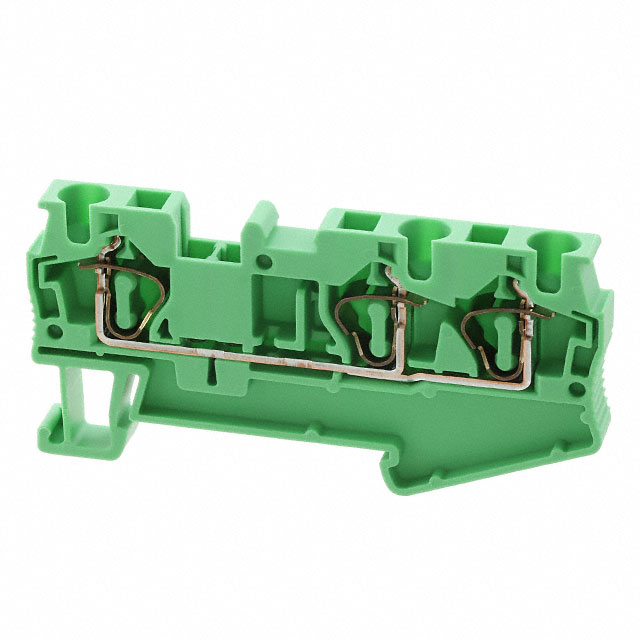

Phoenix Contact 3037384	10 mm	UL94 V-0	Nylon Polyamide (PA)	800 V	28 AWG	10 AWG	0.08 mm²	6 mm²	Push In Spring	Feed Through	6.2 mm	32 A	1	600 V		30 A	Green

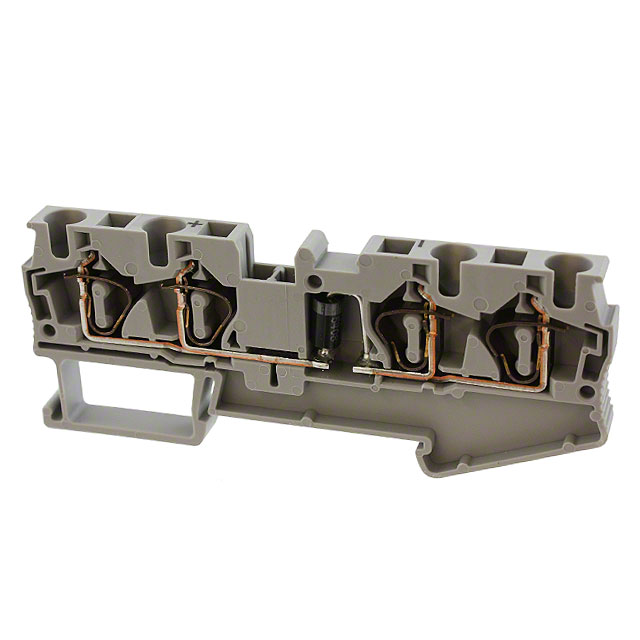

Phoenix Contact 3037782	10 mm	UL94 V-0	Nylon Polyamide (PA)	800 V	28 AWG	10 AWG	0.08 mm²	6 mm²	Push In Spring	Feed Through	6.2 mm	1.5 A	1		4		Gray				Diode
Phoenix Contact 3038639				800 V	28 AWG	10 AWG	0.08 mm²	6 mm²	Push In Spring	Isolated	6.2 mm	28 A	1	600 V	4	30 A	Gray

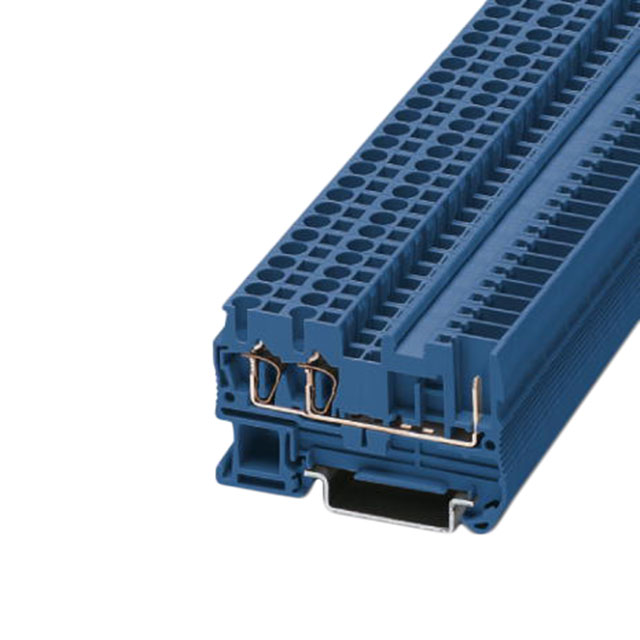

Phoenix Contact 3042104	10 mm	UL94 V-0	Nylon Polyamide (PA)	500 V	28 AWG	12 AWG	0.08 mm²	4 mm²	Plug Receptacles Push In Spring	Plug Connection	5.2 mm	24 A	1			20 A												DIN Rail							Blue	60.5 mm	2.382 "	1.732 in	44 mm
