C1203 Series

Catalog

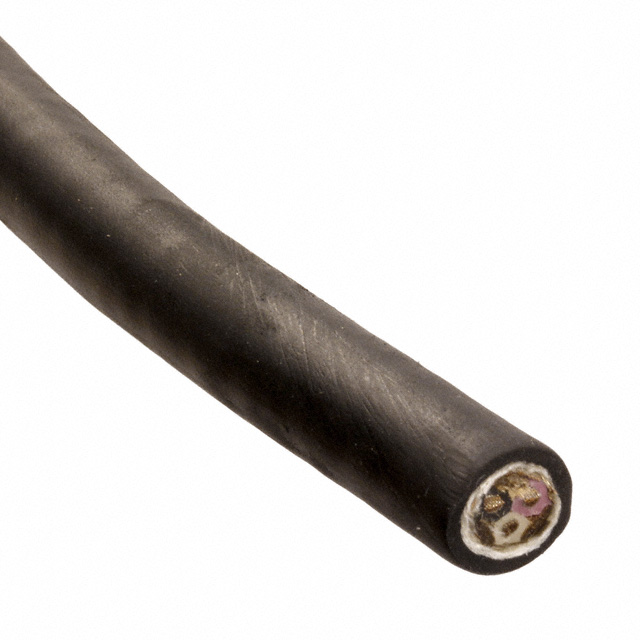

CABLE 3COND 18AWG BLK SHLD 500'

Part	Shield Material	Length	Length	Jacket Color	Jacket (Insulation) Material	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Shield Type	Usage	Wire Gauge	Conductor Insulation	Length [x]	Length [x]	Shield Coverage
Prysmian Group C1203.18.01	Copper Tinned	152.4 m	500 ft	Black	Carolprene	Multi-Conductor	41	34	300 VDC	Copper Tinned	0.305 in	7.75 mm	-20 ░C	60 °C	0.035 in	0.889 mm	3	Braid	Communication Control	18 AWG	Rubber
Prysmian Group C1203.41.01		15.24 m 304.8 m	50 ft 1000 ft	Black	Carolprene	Multi-Conductor	41	34	300 VDC	Copper Tinned	0.305 in	7.75 mm	-25 °C	60 °C	0.035 in	0.889 mm	3	Braid	Communication Control	18 AWG	Rubber	100 ft	30.5 m
Prysmian Group C1203.41.01	Copper Tinned	15.24 m 304.8 m	50 ft 1000 ft	Black	Carolprene	Multi-Conductor	41	34	300 VDC	Copper Tinned	0.305 in	7.75 mm	-25 °C	60 °C	0.035 in	0.889 mm	3	Braid	Communication Control	18 AWG	Rubber	100 ft	30.5 m	80 %
