28-6823 Series

Catalog

CONN IC DIP SOCKET 28POS GOLD

Part	Current Rating (Amps)	Material Flammability Rating	Termination Post Length	Termination Post Length	Housing Material	Pitch - Post	Pitch - Post	Contact Material - Post [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions or Pins (Grid)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Material - Mating	Pitch - Mating	Pitch - Mating	Features	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Type [custom]	Type [custom]	Type	Contact Material - Post
Aries Electronics 28-6823-90C	3 A	UL94 V-0	3.56 mm	0.14 in	Polyamide (PA46) Nylon 4/6 Glass Filled	0.1 in	2.54 mm	Brass	-55 C	105 ░C	28	0.76 Ám	30 Áin	Solder	Beryllium Copper	0.1 "	2.54 mm	Closed Frame	Gold	200 µin	5.08 µm	Tin	15.24 mm	0.6 in	DIP
Aries Electronics 28-6823-90T	1.5 A	UL94 V-0	3.68 mm	0.145 in	Polyamide (PA46) Nylon 4/6	0.1 in	2.54 mm				28	5.08 µm	200 µin	Solder	Phosphor Bronze	0.1 "	2.54 mm	Closed Frame		200 µin	5.08 µm	Tin	15.24 mm	0.6 in	DIP	Phosphor Bronze

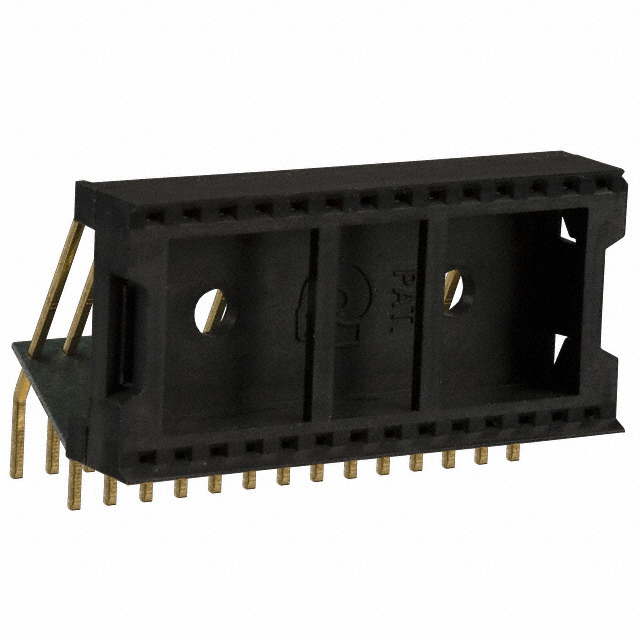

Aries Electronics 28-6823-90	1.5 A	UL94 V-0	3.68 mm	0.145 in	Polyamide (PA46) Nylon 4/6	0.1 in	2.54 mm				28	0.25 µm	10 µin	Solder	Phosphor Bronze	0.1 "	2.54 mm	Closed Frame	Gold	10 Áin	0.25 çm	Gold	15.24 mm	0.6 in	DIP	Phosphor Bronze
