DF3-15P Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN HEADER VERT 15POS 2MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Style | Shrouding | Connector Type | Contact Material | Insulation Color | Pitch - Mating | Pitch - Mating | Number of Positions | Material Flammability Rating | Contact Type | Contact Length - Post [x] | Contact Length - Post [x] | Fastening Type | Current Rating (Amps) | Contact Finish - Post | Insulation Height | Insulation Height | Contact Length - Mating | Contact Length - Mating | Termination | Mounting Type | Contact Shape | Number of Rows | Insulation Material | Number of Positions Loaded | Overall Contact Length | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

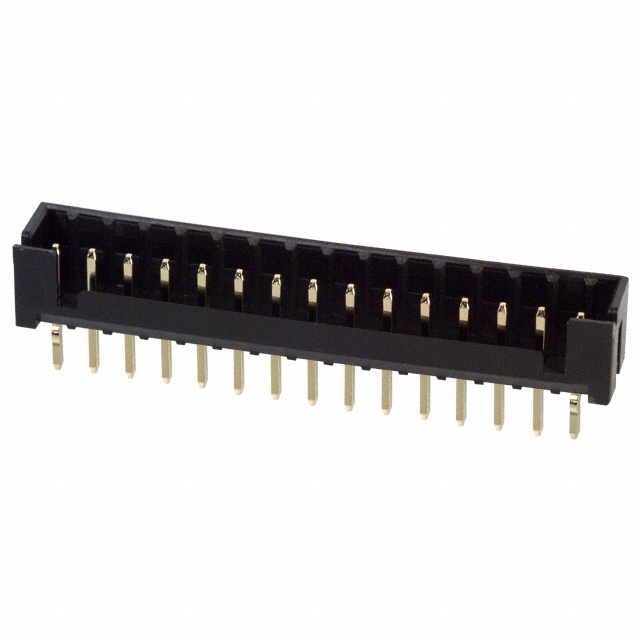

 Hirose Electric Co Ltd | -55 C | 105 ░C | Board to Board Cable | Shrouded - 4 Wall | Header | Brass | Black | 0.079 " | 2 mm | 15 | UL94 V-0 | Male Pin | 0.114 in | 2.9 mm | Push-Pull | 3 A | Tin | 0.197 " | 5 mm | 0.122 in | 3.1 mm | Press-Fit Solder | Through Hole | Square | 1 | Nylon Polyamide (PA) | All | 0.299 in 7.6 mm | |||

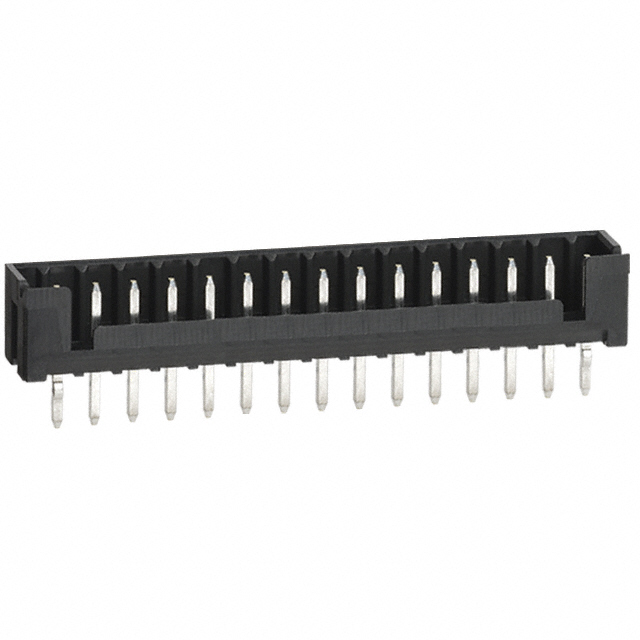

 Hirose Electric Co Ltd | -55 C | 105 ░C | Board to Board Cable | Shrouded - 4 Wall | Header | Brass | Black | 0.079 " | 2 mm | 15 | UL94 V-0 | Male Pin | 0.114 in | 2.9 mm | Push-Pull | 3 A | 0.197 " | 5 mm | 0.122 in | 3.1 mm | Press-Fit Solder | Through Hole | Square | 1 | Nylon Polyamide (PA) | All | 0.299 in 7.6 mm | 8 µin | 0.203 µm | Gold |
